Toyota Pixis space L575A LOCK CYLINDER SET

L575A-GBGF (2011)

Toyota Pixis Space

Production Sep 2011 - Apr 2012

Engine KFVE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

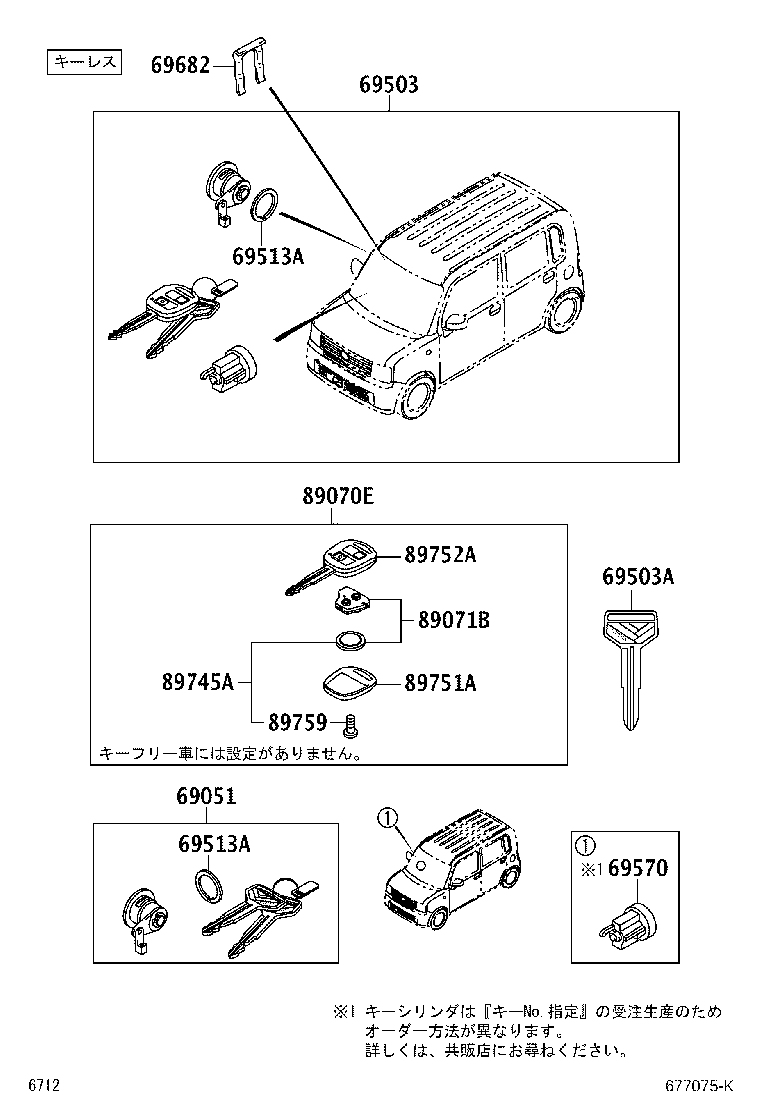

Click highlighted areas on diagram

ｷｰﾚｽ

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-B2260	L575,585..CTMG,CTMX,X	09/2011 - 04/2012	1
69051-B2250	L575,585..L	09/2011 - 04/2012	1
69503 - CYLINDER SET, LOCK
69005-B2C10	L575,585..CTMG,CTMX,X	09/2011 - 04/2012	1
69005-B2C00	L575,585..L	09/2011 - 04/2012	1
69503A - KEY, BLANK
90999-00153	L575,585..L	09/2011 - 04/2012	1
69513A - PAD, DOOR CYLINDER
69513-87201	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69513A - PAD, DOOR CYLINDER
69513-87201	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-B2040	L575,585..L	09/2011 - 04/2012	1
69682 - RETAINER, LOCK CYLINDER
69682-97202	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-B1022	L575,585..L	09/2011 - 04/2012	1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-B1021	L575,585..L	09/2011 - 04/2012	1
89745A - BATTERY, TRANSMITTER
89745-B2010	L575,585..L CR1616	09/2011 - 06/2013	1
89745-B2040	L575,585..CTMG,CTMRS,CTMX,X	09/2011 - 06/2013	1
89751A - COVER, TRANSMITTER HOUSING
89751-B1010	L575,585..CTMG,CTMRS,CTMX,X	09/2011 - 06/2013	1
89751-B4020	L575,585..L	09/2011 - 06/2013	1
89752A - CASE, TRANSMITTER HOUSING
89752-B1010	L575,585..L	09/2011 - 04/2012	1
89759 - SCREW, DOOR CONTROL TRANSMITTER
89759-B2020	L575,585..CTMG,CTMRS,CTMX,X	09/2011 - 06/2013	4
89759-B2010	L575,585..L	09/2011 - 06/2013	1

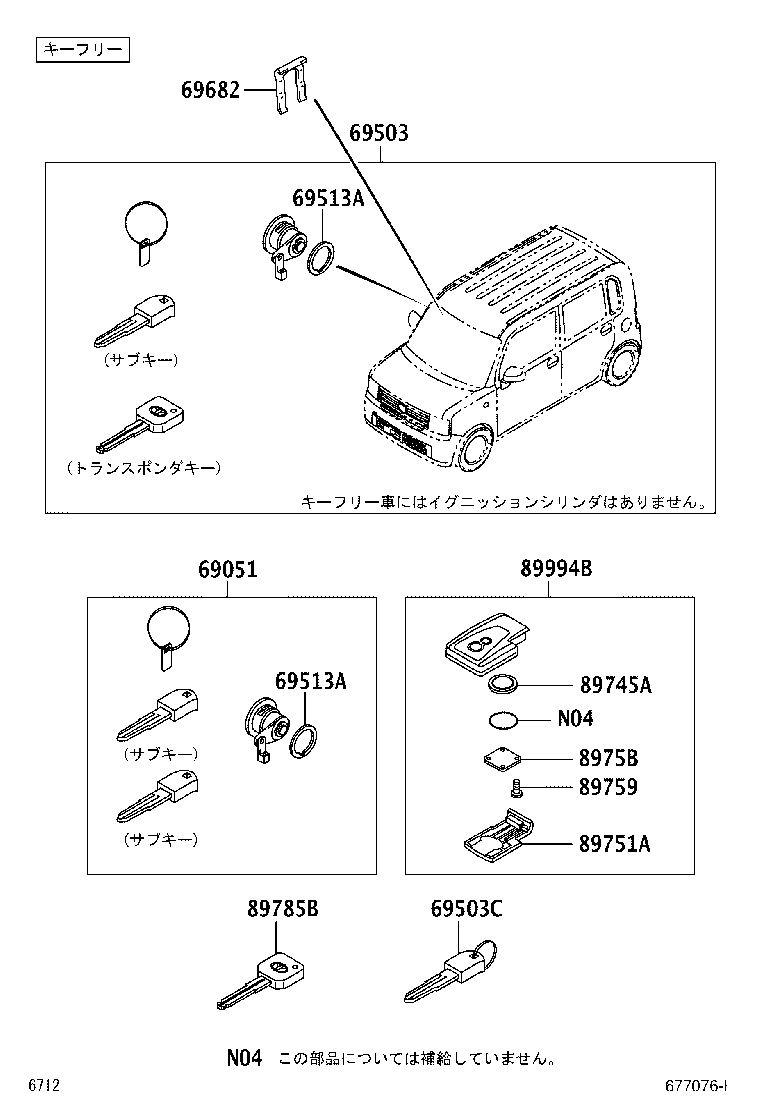

Click highlighted areas on diagram

ｷｰﾌﾘｰ

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-B2260	L575,585..CTMG,CTMX,X	09/2011 - 04/2012	1
69051-B2250	L575,585..L	09/2011 - 04/2012	1
69503 - CYLINDER SET, LOCK
69005-B2C10	L575,585..CTMG,CTMX,X	09/2011 - 04/2012	1
69005-B2C00	L575,585..L	09/2011 - 04/2012	1
69503C - KEY, SUB
69516-B1010	L575,585..CTMG,CTMX,X	09/2011 - 04/2012	1
69513A - PAD, DOOR CYLINDER
69513-87201	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69513A - PAD, DOOR CYLINDER
69513-87201	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
69682 - RETAINER, LOCK CYLINDER
69682-97202	L575,585..CTMG,CTMX,L,X	09/2011 - 04/2012	1
89745A - BATTERY, TRANSMITTER
89745-B2010	L575,585..L CR1616	09/2011 - 06/2013	1
89745-B2040	L575,585..CTMG,CTMRS,CTMX,X	09/2011 - 06/2013	1
89751A - COVER, TRANSMITTER HOUSING
89751-B1010	L575,585..CTMG,CTMRS,CTMX,X	09/2011 - 06/2013	1
89751-B4020	L575,585..L	09/2011 - 06/2013	1
89759 - SCREW, DOOR CONTROL TRANSMITTER
89759-B2020	L575,585..CTMG,CTMRS,CTMX,X	09/2011 - 06/2013	4
89759-B2010	L575,585..L	09/2011 - 06/2013	1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-B2010	L575,585..CTMG,CTMRS,CTMX,X	09/2011 - 06/2013	1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-B1070	L575,585..CTMG,CTMX,X	09/2011 - 04/2012	1
89994B - TRANSMITTER, ELECTRICAL KEY
89994-B1070	L575,585..CTMG,CTMX,X	09/2011 - 04/2012	1
