LA710A-GBVZ2 (2018)
Toyota Pixis Mega
Production
Jan 2018
-
Sep 9999
Engine
KFVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1801- )

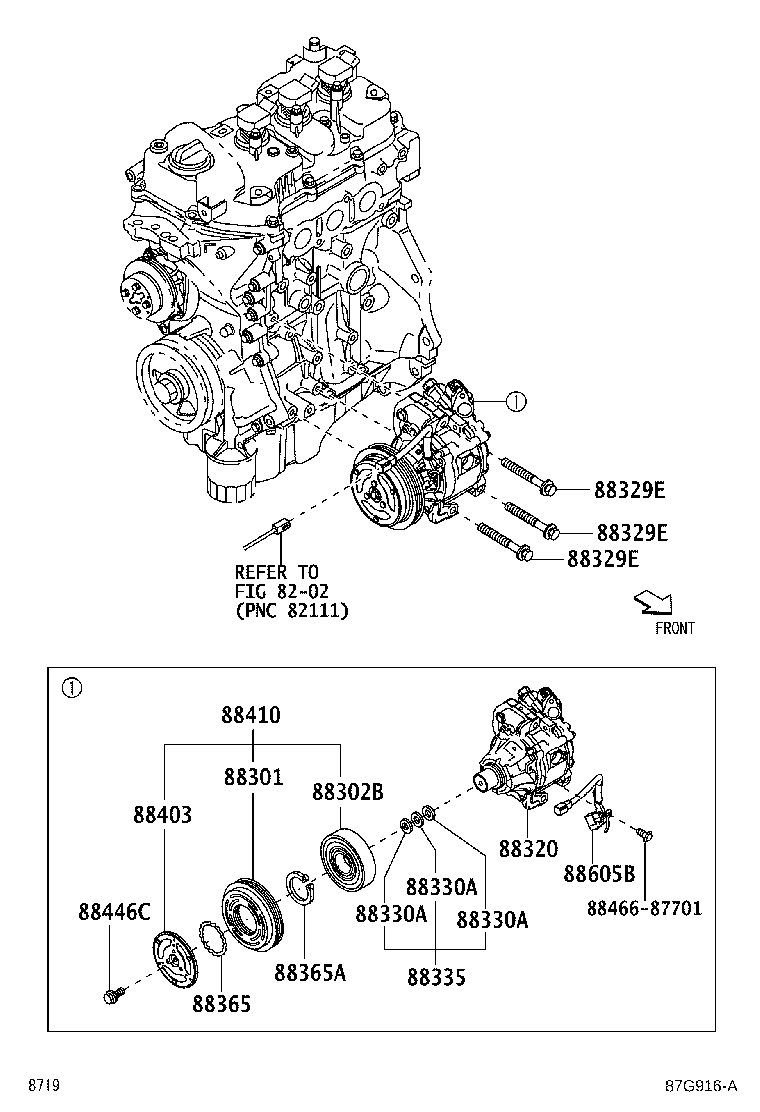

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-B2060 |
LA700,710 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-B2150 |
LA700,710..TBO |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88318-87704 |
LA700,710..TBO 厚さ=0.1 |
1 | ||
| 88318-87705 |
LA700,710..TBO 厚さ=0.3 |
1 | ||
| 88318-87706 |
LA700,710..TBO 厚さ=0.5 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88318-87704 |
LA700,710..TBO 厚さ=0.1 |
1 | ||
| 88318-87705 |
LA700,710..TBO 厚さ=0.3 |
1 | ||
| 88318-87706 |
LA700,710..TBO 厚さ=0.5 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88318-87704 |
LA700,710..TBO 厚さ=0.1 |
1 | ||
| 88318-87705 |
LA700,710..TBO 厚さ=0.3 |
1 | ||
| 88318-87706 |
LA700,710..TBO 厚さ=0.5 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-B2040 |
LA700,710 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-B2100 |
LA700,710 |
1 | ||
| 88410-B2130 |
LA700,710 |
1 | ||
| Common parts | ||||
| 88466-87701 | ||||
| Linked diagrams | ||||
| 8202 | ||||
