LA710A-GBVZ (2016)
Toyota Pixis Mega
(1605- )

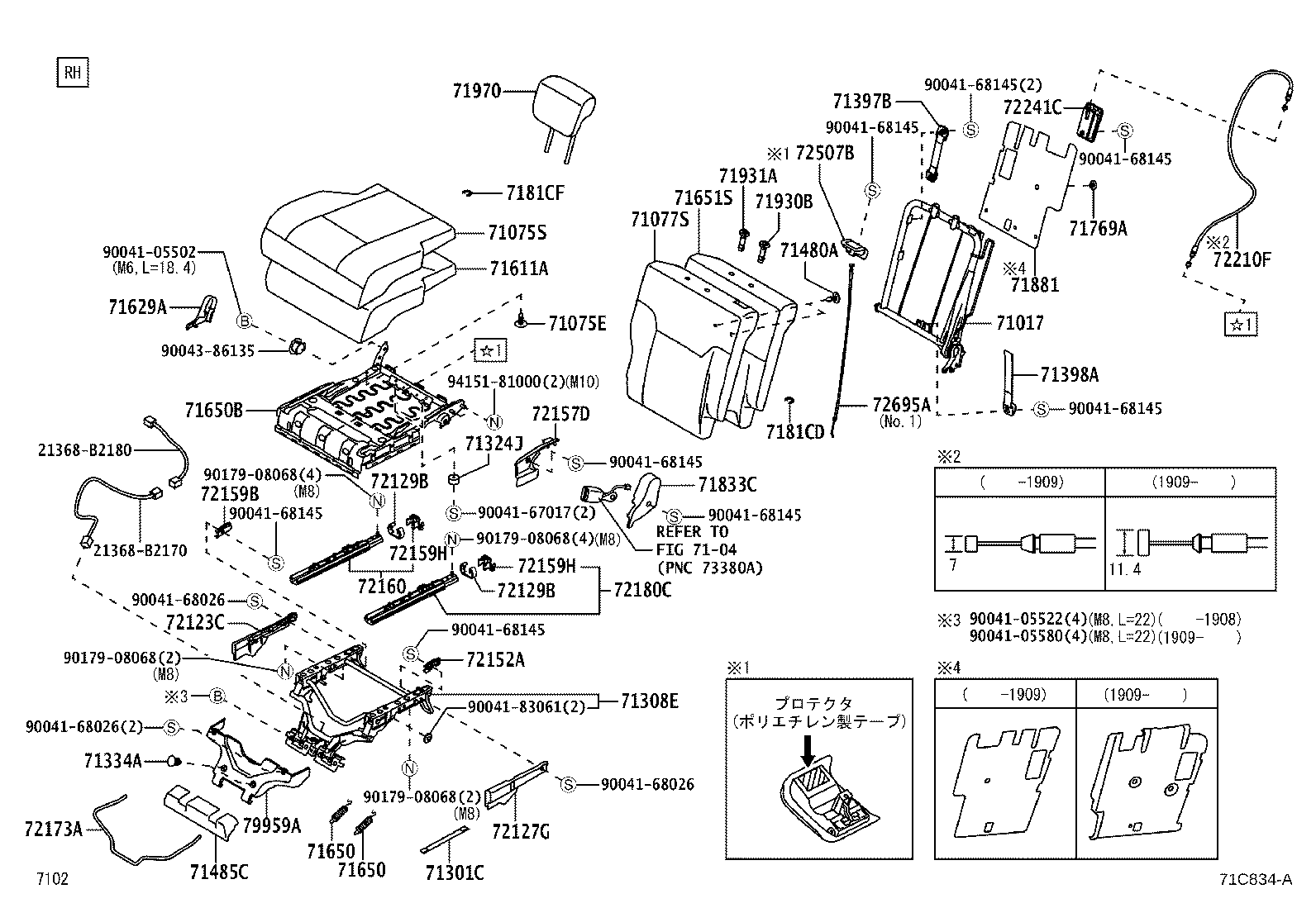

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-B2590 |
LA700,710 |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90044-68185B1 |
LA700,710 DK.GRAY |
2 | ||
| 71301C - LINK SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-B2051 |
LA700,710 |
2 | ||
| 71308E - LEG SUB-ASSY, REAR SEAT, RH | ||||
| 71308-B2160 |
LA700,710 |
1 | ||
| 71324J - CUSHION, REAR SEAT | ||||
| 90045-40125 |
LA700,710 |
4 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-B2030B2 |
LA700,710 DK.GRAY,TRIM1# |
4 | ||
| 71334-B2030C0 |
LA700,710 BLACK,TRIM1# |
4 | ||
| 71397B - HOLDER, REAR SEAT BACK, RH | ||||
| 71398-B2040B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-B2030C0 |
LA700,710 BLACK,TRIM1# |
2 | ||
| 71398-B2030B1 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90044-68028B0 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 71485C - COVER, REAR SEAT HINGE, RH | ||||
| 71485-B2160C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 71485-B2160B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-B2580 |
LA700,710 |
1 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-B2080B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 71629-B2080C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 44699-B2070 |
LA700,710 |
4 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 44699-B2070 |
LA700,710 |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71507-B2610 |
LA700,710 |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-B2010 |
LA700,710 |
2 | ||
| 7181CD - RING, HOG, SMALL (FOR REAR SEAT BACK) | ||||
| 71812-87201 |
LA700,710 |
3 | ||
| 7181CF - RING, HOG, SMALL (FOR REAR SEAT CUSHION) | ||||
| 71812-87201 |
LA700,710 |
8 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-B2090B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 71833-B2090C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 71930B - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-B2010B0 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 71930-B2010C1 |
LA700,710 BLACK,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-B2010B0 |
LA700,710 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-B2010C1 |
LA700,710 ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-B2870C1 |
LA700,710 BLACK,TRIM1# |
2 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-B2050C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 72123-B2050B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-B2060C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 72123-B2060B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-B2030 |
LA700,710 |
4 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-B2030 |
LA700,710 |
4 | ||
| 72152A - COVER, REAR SEAT TRACK BRACKET, INNER | ||||
| 72152-B2100B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 72152-B2100C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 72157D - COVER, SEAT TRACK BRACKER, INNER RH | ||||
| 72157-B2050B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 72157-B2050C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72152-B2080B0 |
LA700,710..TBO DK.GRAY,TRIM1# |
2 | ||
| 72152-B2080C0 |
LA700,710..TBO BLACK,TRIM1# |
2 | ||
| 72159H - COVER, REAR SEAT TRACK BRACKET | ||||
| 72157-B2030 |
LA700,710 |
4 | ||
| 72159H - COVER, REAR SEAT TRACK BRACKET | ||||
| 72157-B2030 |
LA700,710 |
4 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-B2070 |
LA700,710 |
1 | ||
| 72173A - HANDLE, REAR SEAT TRACK ADJUSTING, RH | ||||
| 72173-B2111 |
LA700,710 |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72160-B2070 |
LA700,710 |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-B2090 |
LA700,710 NO.2 |
2 | ||
| 72695-B2110 |
LA700,710 NO.1 |
2 | ||
| 79959A - COVER, REAR SEAT LEG, RH | ||||
| 79959-B2150C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 79959-B2150B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 21368-B2170 | ||||
| 21368-B2180 | ||||
| 90041-05502 | ||||
| 90041-05522 | ||||
| 90041-05580 | ||||
| 90041-67017 | ||||
| 90041-68026 | ||||
| 90041-68145 | ||||
| 90041-83061 | ||||
| 90043-86135 | ||||
| 90179-08068 | ||||
| 94151-81000 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1605- )

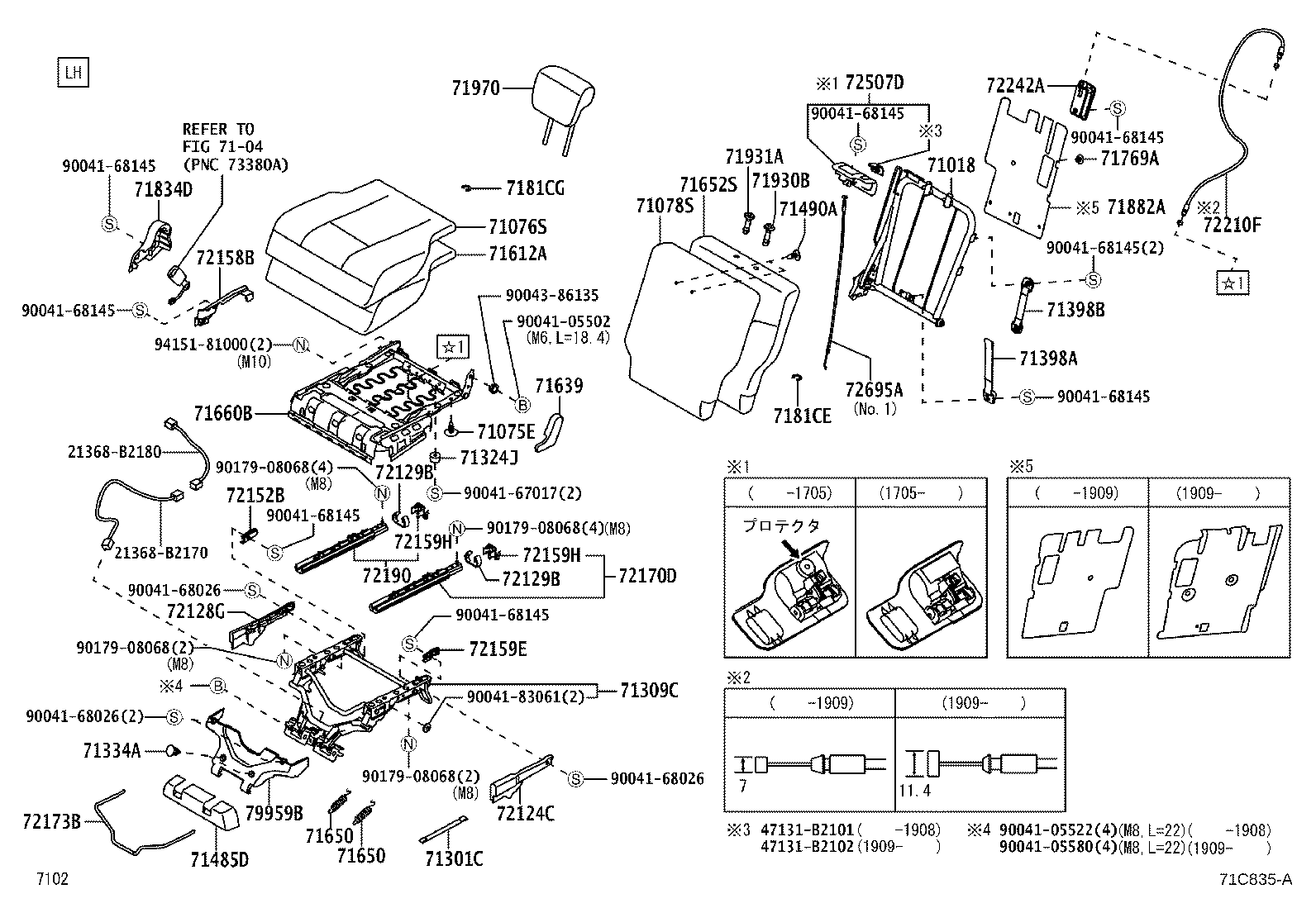

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-B2230 |
LA700,710 |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90044-68185B1 |
LA700,710 DK.GRAY |
2 | ||
| 71301C - LINK SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-B2051 |
LA700,710 |
2 | ||
| 71309C - LEG SUB-ASSY, REAR SEAT, REAR LH | ||||
| 71309-B2190 |
LA700,710 |
1 | ||
| 71324J - CUSHION, REAR SEAT | ||||
| 90045-40125 |
LA700,710 |
4 | ||
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-B2030B2 |
LA700,710 DK.GRAY,TRIM1# |
4 | ||
| 71334-B2030C0 |
LA700,710 BLACK,TRIM1# |
4 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-B2030C0 |
LA700,710 BLACK,TRIM1# |
2 | ||
| 71398-B2030B1 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 71398B - HOLDER, REAR SEAT BACK, LH | ||||
| 71398-B2040B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 71485D - COVER, REAR SEAT HINGE, LH | ||||
| 71485-B2170C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 71485-B2170B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90044-68028B0 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-B2190 |
LA700,710 |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71639-B2060C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 71639-B2060B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 44699-B2070 |
LA700,710 |
4 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 44699-B2070 |
LA700,710 |
4 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71508-B2320 |
LA700,710 |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-B2010 |
LA700,710 |
2 | ||
| 7181CE - RING, HOG, SMALL (FOR REAR SEAT BACK) | ||||
| 71812-87201 |
LA700,710 |
3 | ||
| 7181CG - RING, HOG, SMALL (FOR REAR SEAT CUSHION) | ||||
| 71812-87201 |
LA700,710 |
8 | ||
| 71834D - COVER, REAR SEAT RECLINING, LH | ||||
| 71834-B2090B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 71834-B2090C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 71930B - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-B2010B0 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 71930-B2010C1 |
LA700,710 BLACK,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-B2010B0 |
LA700,710 ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931-B2010C1 |
LA700,710 ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-B2870C1 |
LA700,710 BLACK,TRIM1# |
2 | ||
| 72124C - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-B2050C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 72123-B2050B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 72128G - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-B2060B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 72123-B2060C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-B2030 |
LA700,710 |
4 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-B2030 |
LA700,710 |
4 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-B2030C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 72158-B2030B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 72159E - COVER, REAR SEAT TRACK BRACKET, OUTER LH | ||||
| 72152-B2100C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 72152-B2100B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 72159H - COVER, REAR SEAT TRACK BRACKET | ||||
| 72157-B2030 |
LA700,710 |
4 | ||
| 72159H - COVER, REAR SEAT TRACK BRACKET | ||||
| 72157-B2030 |
LA700,710 |
4 | ||
| 72170D - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72160-B2070 |
LA700,710 |
1 | ||
| 72173B - HANDLE, REAR SEAT TRACK ADJUSTING, LH | ||||
| 72173-B2111 |
LA700,710 |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72160-B2070 |
LA700,710 |
1 | ||
| 72695A - CABLE, REAR SEAT LOCK CONTROL | ||||
| 72695-B2090 |
LA700,710 NO.2 |
2 | ||
| 72695-B2110 |
LA700,710 NO.1 |
2 | ||
| 79959B - COVER, REAR SEAT LEG, LH | ||||
| 79959-B2160B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 79959-B2160C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 21368-B2170 | ||||
| 21368-B2180 | ||||
| 47131-B2101 | ||||
| 47131-B2102 | ||||
| 90041-05502 | ||||
| 90041-05522 | ||||
| 90041-05580 | ||||
| 90041-67017 | ||||
| 90041-68026 | ||||
| 90041-68145 | ||||
| 90041-83061 | ||||
| 90043-86135 | ||||
| 90179-08068 | ||||
| 94151-81000 | ||||
| Linked diagrams | ||||
| 7104 | ||||
