LA710A-GBVZ (2016)

Toyota Pixis Mega

Production May 2016 - Jan 2018
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1605- )

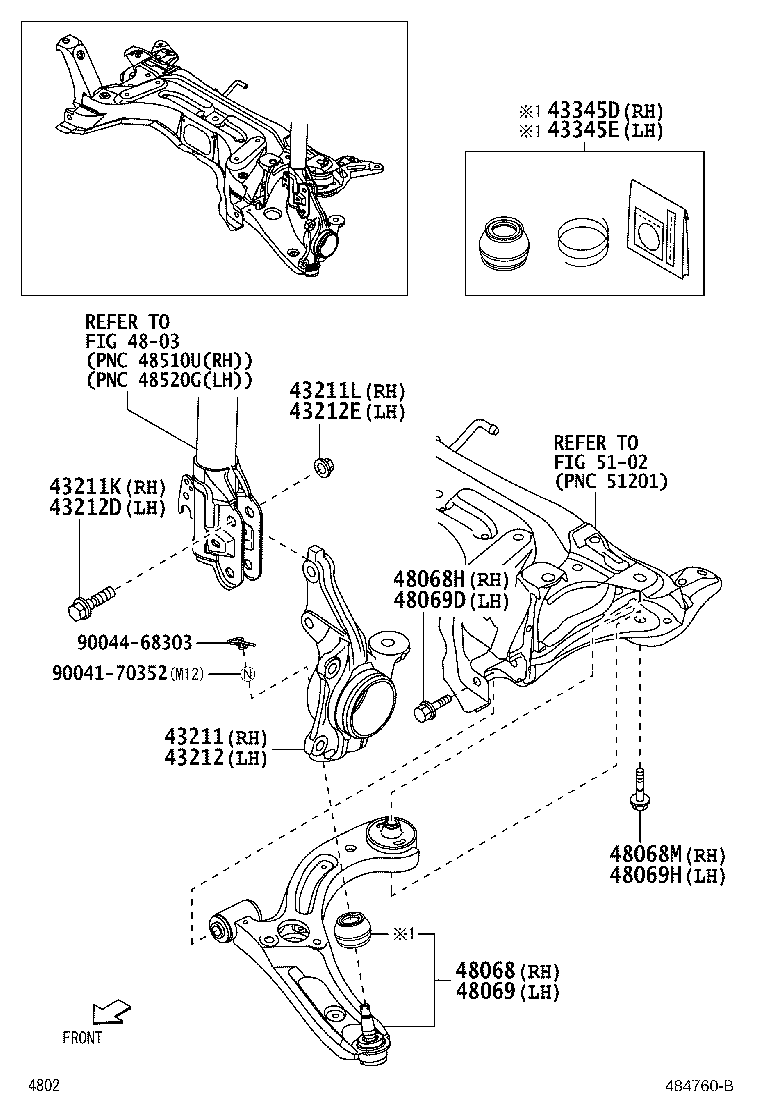

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43345D 43345E 4803 48068 48068H 48068M 48069 48069D 48069H 5102 9004170352 9004468303
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-B2130

LA700,710

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90041-01652

LA700,710

M12,L=51

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90041-70393

LA700,710

M12

 2
43212 - KNUCKLE, STEERING, LH
43212-B2130

LA700,710

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90041-01652

LA700,710

M12,L=51

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90041-70393

LA700,710

M12

 2
43345D - COVER, LOWER BALL JOINT DUST, RH
43345-B9020

LA700,710

 1
43345E - COVER, LOWER BALL JOINT DUST, LH
43345-B9020

LA700,710

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-B2200

LA700,710

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90041-20192

LA700,710

M12,L=91

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90041-05475

LA700,710

M12,L=110

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-B2100

LA700,710

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90041-20192

LA700,710

M12,L=91

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90041-05475

LA700,710

M12,L=110

 1
Common parts
90041-70352
90044-68303
Linked diagrams
4803
5102
