LA710A-GBVZ (2016)
Toyota Pixis Mega
Production
May 2016
-
Jan 2018
Engine
KFVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1605- )LA710

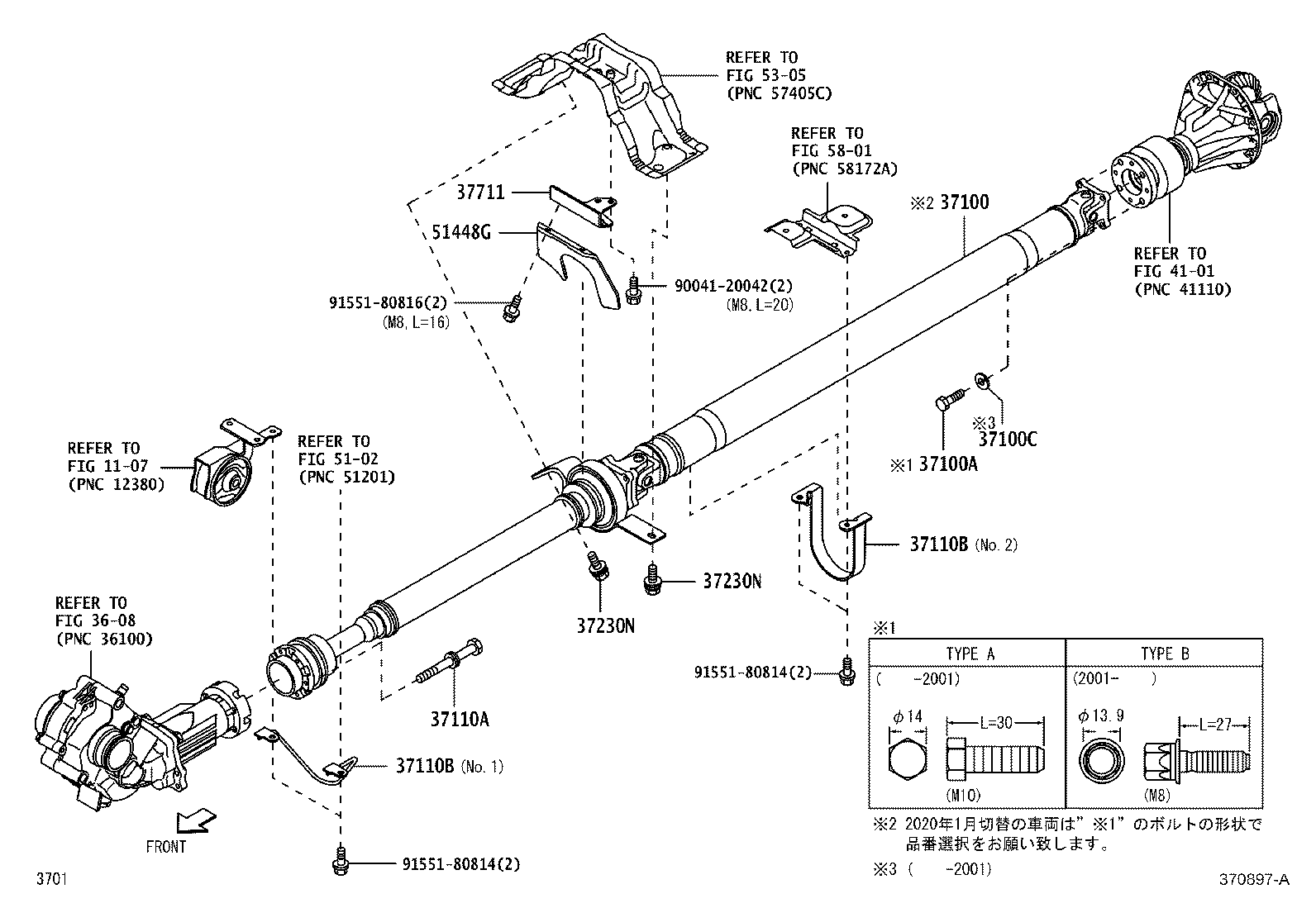

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90041-01684 |
LA710 M8,L=102.7 |
4 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-B2010 |
LA710 NO.1 |
1 | ||
| 51569-B2020 |
LA710 NO.2 |
1 | ||
| 51569-B2040 |
LA710 NO.2 |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-B2010 |
LA710 NO.1 |
1 | ||
| 51569-B2020 |
LA710 NO.2 |
1 | ||
| 51569-B2040 |
LA710 NO.2 |
1 | ||
| 37711 - BRACKET, PROPELLER SHAFT DUST COVER, NO.1 | ||||
| 37711-B2020 |
LA710 |
1 | ||
| 51448G - PROTECTOR, PROPELLER SHAFT | ||||
| 51448-B2020 |
LA710 |
1 | ||
| Common parts | ||||
| 90041-20042 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 3608 | ||||
| 4101 | ||||
| 5102 | ||||
| 5305 | ||||
| 5801 | ||||
