LA710A-GBVZ (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

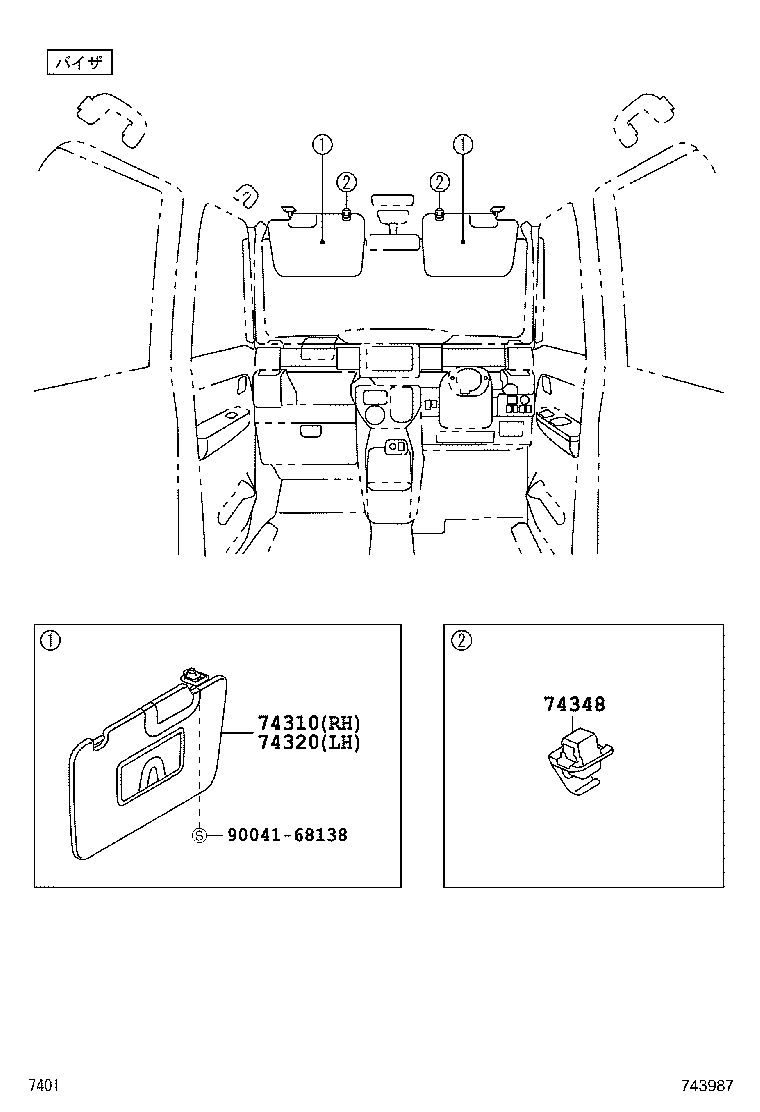

ILLUST NO. 2 OF 2(1507- )

Click highlighted areas on diagram

ﾊﾞｲｻﾞ

diagram 74310 74320 74348 9004168138
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-B2660B0

LA700,710

DK.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-B2660B1

LA700,710

DK.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-B2020B1

LA700,710

DK.GRAY,TRIM1#

 2
Common parts
90041-68138

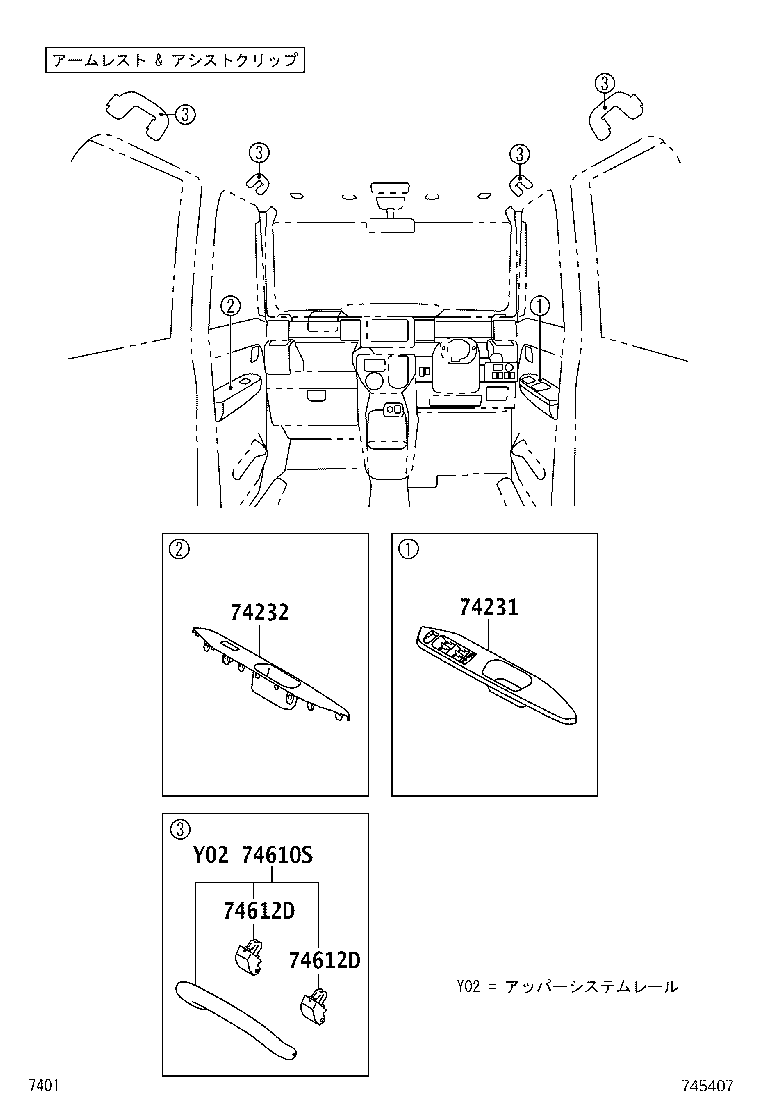

ILLUST NO. 1 OF 2(1507- )

Click highlighted areas on diagram

ｱｰﾑﾚｽﾄ & ｱｼｽﾄｸﾞﾘｯﾌﾟ

diagram 74231 74232 74610S 74612D 74612D
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B2170B0

LA700,710

DK.GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B2130B0

LA700,710

DK.GRAY,TRIM1#

 1
74610S - GRIP ASSY, ASSIST
74610-B2030B2

LA700,710

DK.GRAY,TRIM1#

 4
74612D - COVER, ASSIST GRIP
74612-B2070B1

LA700,710

DK.GRAY,TRIM1#

 8
74612D - COVER, ASSIST GRIP
74612-B2070B1

LA700,710

DK.GRAY,TRIM1#

 8
