LA710A-GBVZ (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

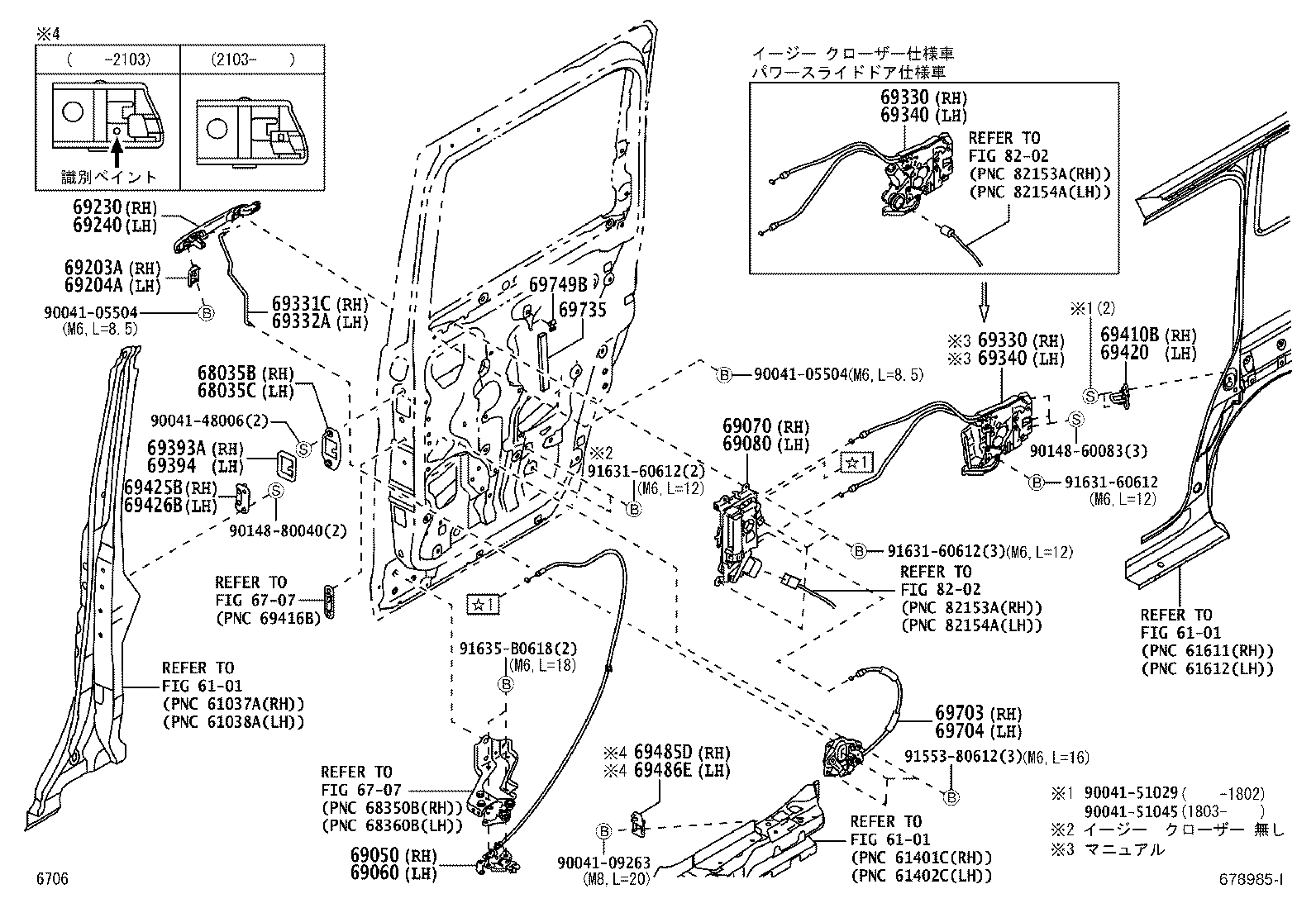

Click highlighted areas on diagram

diagram 6101 6101 6101 6707 6707 68035B 68035C 69050 69060 69070 69080 69203A 69204A 69230 69240 69330 69330 69331C 69332A 69340 69340 69393A 69394 69410B 69420 69425B 69426B 69485D 69486E 69703 69704 69735 69749B 8202 8202 9004105504 9004105504 9004109263 9004148006 9004151029 9004151045 9014860083 9014880040 9155380612 9163160612 9163160612 9163160612 91635B0618
Part # Description Qty Price
68035B - BRACKET SUB-ASSY, SLIDE DOOR CATCH, RH
68035-B2020

LA700,710

 1
68035C - BRACKET SUB-ASSY, SLIDE DOOR CATCH, LH
68035-B2020

LA700,710

 1
69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69050-B2040

LA700,710

 1
69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69060-B2040

LA700,710

 1
69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH
69070-B2050B0

LA700,710..L,X

ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ 有り,DK.GRAY,TRIM1#

 1
69070-B2030B0

LA700,710..L,X

DK.GRAY,TRIM1#

 1
69070-B2050B0

LA700,710..G

DK.GRAY,TRIM1#

 1
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69080-B2150B0

LA700,710..G,L,X

DK.GRAY,TRIM1#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-B2030

LA700,710

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69203-B2030

LA700,710

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-B2110B0

LA700,710..L,X

ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ 有り,SILVER ME.,B58 ,G55 ,R59 ,R71 ,S38 ,W24 ,X07 ,X85 ,X86 ,X87 ,Y09,ﾘｸｴｽﾄ ｽｲｯﾁ付き

 1
69230-B2120B0

LA700,710..D,L,X

SILVER ME.,B58 ,G55 ,R59 ,R71 ,S38 ,W24 ,X07 ,X85 ,X86 ,X87 ,Y09

 1
69230-B2110B0

LA700,710..G

SILVER ME.,B58 ,G55 ,R59 ,R71 ,S38 ,W24 ,X07 ,X85 ,X86 ,X87 ,Y09,ﾘｸｴｽﾄ ｽｲbﾁ付き

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-B2100B0

LA700,710..G,L,X

SILVER ME.,B58 ,G55 ,R59 ,R71 ,S38 ,W24 ,X07 ,X85 ,X86 ,X87 ,Y09,ﾘｸｴｽﾄ ｽｲbﾁ付き

 1
69330 - LOCK ASSY, REAR DOOR, RH
69200-B2030

LA700,710..L,X

ﾓｰﾀｰ付き

 1
69200-B2040

LA700,710..L,X

ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ 有り,ﾓｰﾀｰ付き

 1
69200-B2040

LA700,710..G

ﾓｰﾀｰ付き

 1
69330 - LOCK ASSY, REAR DOOR, RH
69200-B2030

LA700,710..L,X

ﾓｰﾀｰ付き

 1
69200-B2040

LA700,710..L,X

ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ 有り,ﾓｰﾀｰ付き

 1
69200-B2040

LA700,710..G

ﾓｰﾀｰ付き

 1
69331C - ROD, REAR DOOR LOCK OPEN, RH
69331-B2160

LA700,710

 1
69332A - ROD, REAR DOOR LOCK OPEN, LH
69332-B2140

LA700,710

 1
69340 - LOCK ASSY, REAR DOOR, LH
69300-B2040

LA700,710..G,L,X

ﾓｰﾀｰ付き

 1
69340 - LOCK ASSY, REAR DOOR, LH
69300-B2040

LA700,710..G,L,X

ﾓｰﾀｰ付き

 1
69393A - COVER, REAR DOOR LOCK, OUTER RH
69482-B2010

LA700,710

 1
69394 - COVER, REAR DOOR LOCK, OUTER LH
69482-B2010

LA700,710

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69470-B2010

LA700,710

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69470-B2010

LA700,710

 1
69425B - PLATE, DOOR LOCK STRIKER AUXILIARY, RH(FOR REAR DOOR)
69420-B2020

LA700,710

 1
69426B - PLATE, DOOR LOCK STRIKER AUXILIARY, LH(FOR REAR DOOR)
69420-B2020

LA700,710

 1
69485D - STRIKER, SLIDE DOOR OPEN, RH
69485-46010

LA700,710

 1
69486E - STRIKER, SLIDE DOOR OPEN, LH
69486-46020

LA700,710

 1
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69707-B2040

LA700,710

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69708-B2020

LA700,710

 1
69735 - SILENCER, REAR DOOR LOCK LINK
69759-B2030

LA700,710

ｽﾎﾟﾝｼﾞ,160X20X10

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040

LA700,710

 2
Common parts
90041-05504
90041-09263
90041-48006
90041-51029
90041-51045
90148-60083
90148-80040
91553-80612
91631-60612
91635-B0618
Linked diagrams
6101
6707
8202

(1507- )

Click highlighted areas on diagram

diagram 5305 69180 69490E 8202 9017906026
Part # Description Qty Price

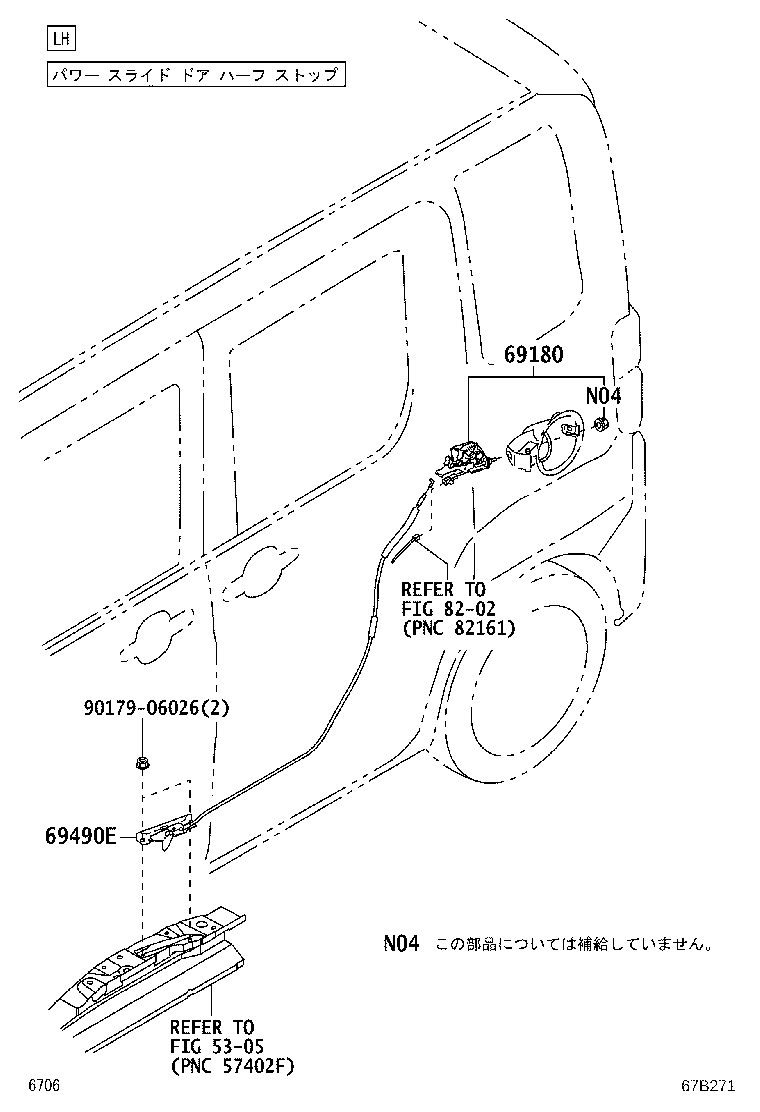

69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69180-B2050

LA700,710..G,L,X

 1
69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN
69490-B2030

LA700,710

 1
69490-B2031

LA700,710

 1
Common parts
90179-06026
Linked diagrams
5305
8202
