LA710A-GBVZ (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )LA710

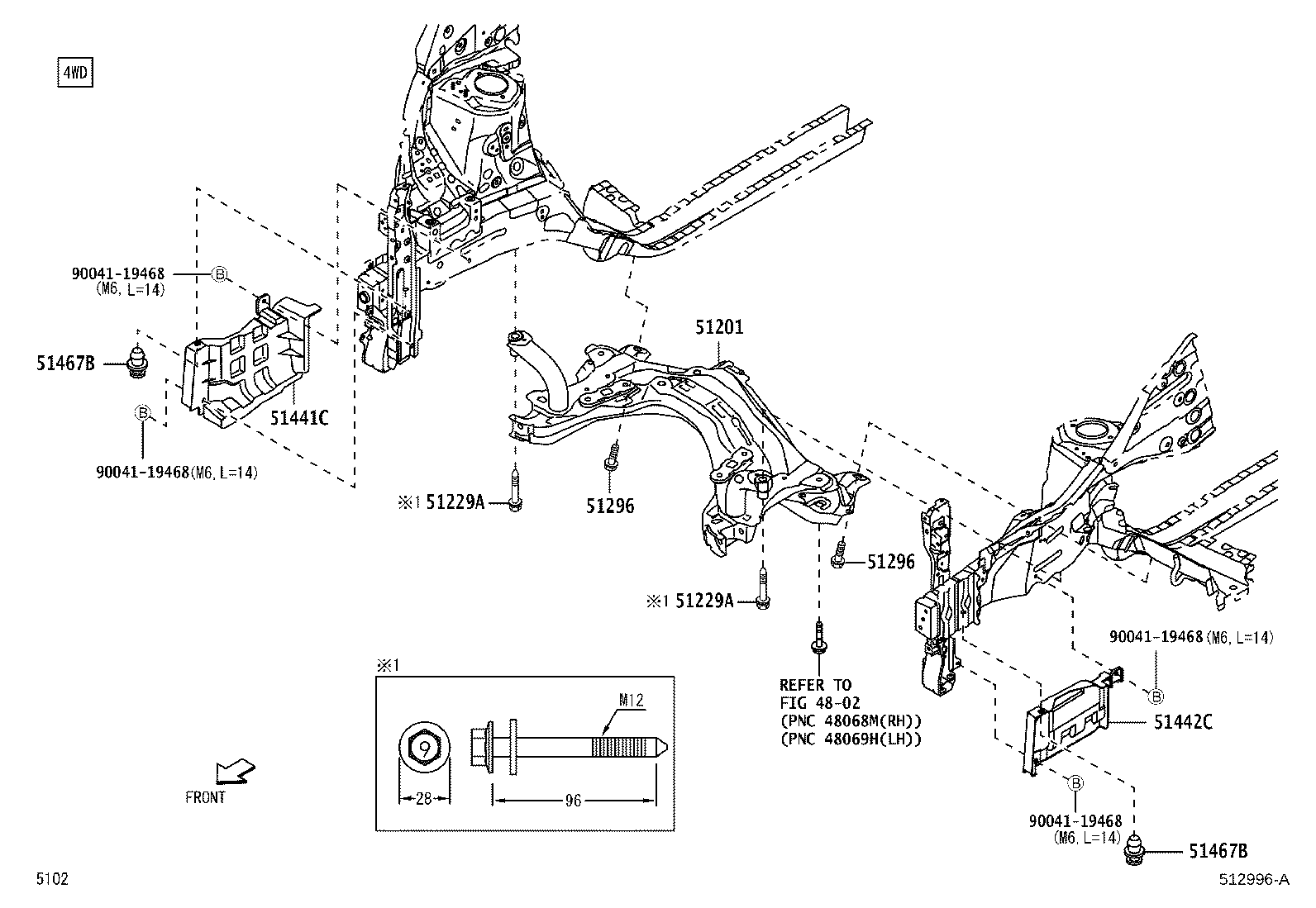

Click highlighted areas on diagram

4WD

diagram 4802 51201 51229A 51229A 51296 51296 51441C 51442C 51467B 51467B 9004119468 9004119468 9004119468 9004119468
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-B2051

LA710

 1
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-20053

LA710

M12,L=96

 2
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-20053

LA710

M12,L=96

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-19948

LA700,710

M10,L=25

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-19948

LA700,710

M10,L=25

 2
51441C - COVER, ENGINE UNDER, RH
51441-B2030

LA700,710

 1
51442C - COVER, ENGINE UNDER, LH
51442-B2030

LA700,710

 1
51467B - RETAINER, ENGINE UNDER COVER
51467-B2020

LA700,710

 2
51467B - RETAINER, ENGINE UNDER COVER
51467-B2020

LA700,710

 2
Common parts
90041-19468
Linked diagrams
4802
