LA710A-GBVZ (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

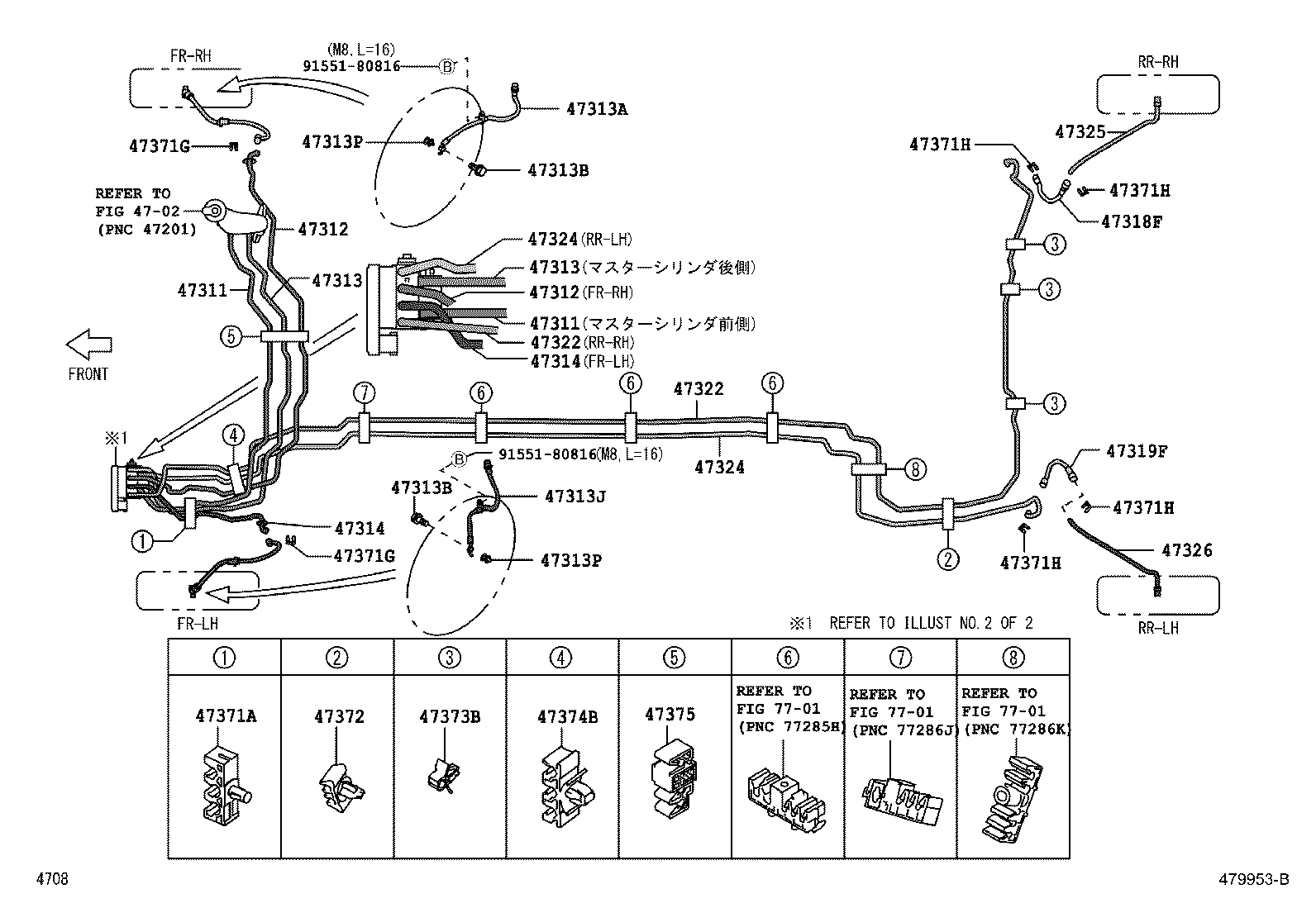

ILLUST NO. 1 OF 2(1507-1605)

Click highlighted areas on diagram

diagram 4702 47311 47311 47312 47312 47313 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47314 47318F 47319F 47322 47322 47324 47324 47325 47326 47371A 47371G 47371G 47371H 47371H 47371H 47371H 47372 47373B 47374B 47375 7701 7701 7701 9155180816 9155180816
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-B2560

LA700,710

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-B2560

LA700,710

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B2330

LA700,710

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-B2330

LA700,710

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B2520

LA700,710

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-B2520

LA700,710

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22301

LA700,710

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

LA700,710

M10,L=19

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

LA700,710

M10,L=19

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90049-22302

LA700,710

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

LA700,710

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

LA700,710

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-B2150

LA700,710

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-B2150

LA700,710

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22204

LA710

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22204

LA710

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-B2340

LA710

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-B2340

LA710

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B2630

LA710

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-B2630

LA710

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-B2030

LA710

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-B2030

LA710

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47372-B2020

LA700,710

 1
47371G - CLAMP, BRAKE TUBE, NO.11
90044-65441

LA700,710

 2
47371G - CLAMP, BRAKE TUBE, NO.11
90044-65441

LA700,710

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90044-65441

LA700,710

 4
47371H - CLAMP, BRAKE TUBE, NO.12
90044-65441

LA700,710

 4
47371H - CLAMP, BRAKE TUBE, NO.12
90044-65441

LA700,710

 4
47371H - CLAMP, BRAKE TUBE, NO.12
90044-65441

LA700,710

 4
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64485

LA700,710

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90044-64659

LA700,710

 3
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64742

LA700,710

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64807

LA700,710

 1
Common parts
91551-80816
Linked diagrams
4702
7701

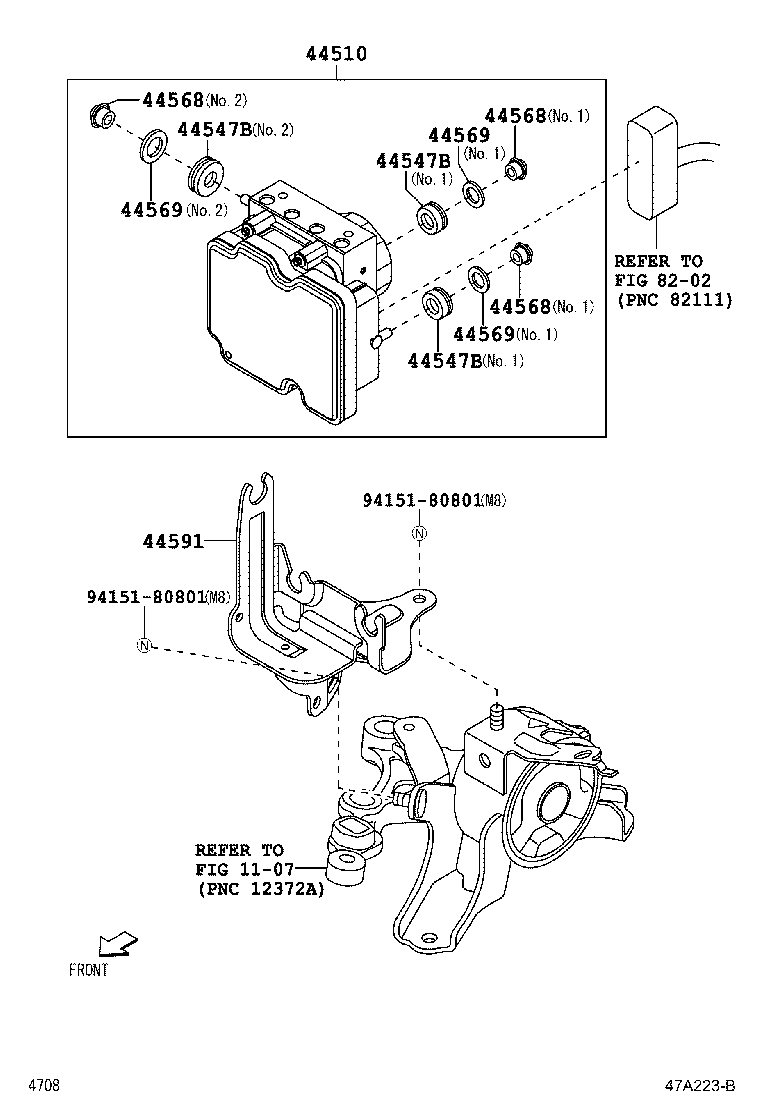

ILLUST NO. 2 OF 2(1507-1605)

Click highlighted areas on diagram

diagram 1107 44510 44547B 44547B 44547B 44568 44568 44568 44569 44569 44569 44591 8202 9415180801 9415180801
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-B2C70

LA710..TBO

ｽﾏｰﾄｱｼｽﾄ

 1
44050-B2D50

LA710..TBO

 1
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-B2050

LA700,710

NO.2

 1
44547-B2040

LA700,710

NO.1

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-B2050

LA700,710

NO.2

 1
44547-B2040

LA700,710

NO.1

 2
44547B - CUSHION, BRAKE ACTUATOR BRACKET
44547-B2050

LA700,710

NO.2

 1
44547-B2040

LA700,710

NO.1

 2
44568 - NUT, BRAKE ACTUATOR
44517-B2010

LA700,710

NO.1 (M6)

 2
44517-B2020

LA700,710

NO.2 (M6)

 1
44568 - NUT, BRAKE ACTUATOR
44517-B2010

LA700,710

NO.1 (M6)

 2
44517-B2020

LA700,710

NO.2 (M6)

 1
44568 - NUT, BRAKE ACTUATOR
44517-B2010

LA700,710

NO.1 (M6)

 2
44517-B2020

LA700,710

NO.2 (M6)

 1
44569 - WASHER, BRAKE ACTUATOR
44537-B2020

LA700,710

NO.2

 1
44537-B2010

LA700,710

NO.1

 2
44569 - WASHER, BRAKE ACTUATOR
44537-B2020

LA700,710

NO.2

 1
44537-B2010

LA700,710

NO.1

 2
44569 - WASHER, BRAKE ACTUATOR
44537-B2020

LA700,710

NO.2

 1
44537-B2010

LA700,710

NO.1

 2
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-B2120

LA700,710

 1
Common parts
94151-80801
Linked diagrams
1107
8202
