PIXIS MEGA
LA710A-GBVZ (2015)
4501 - STEERING COLUMN & SHAFT

LA710A-GBVZ (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016

Engine KFVET

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

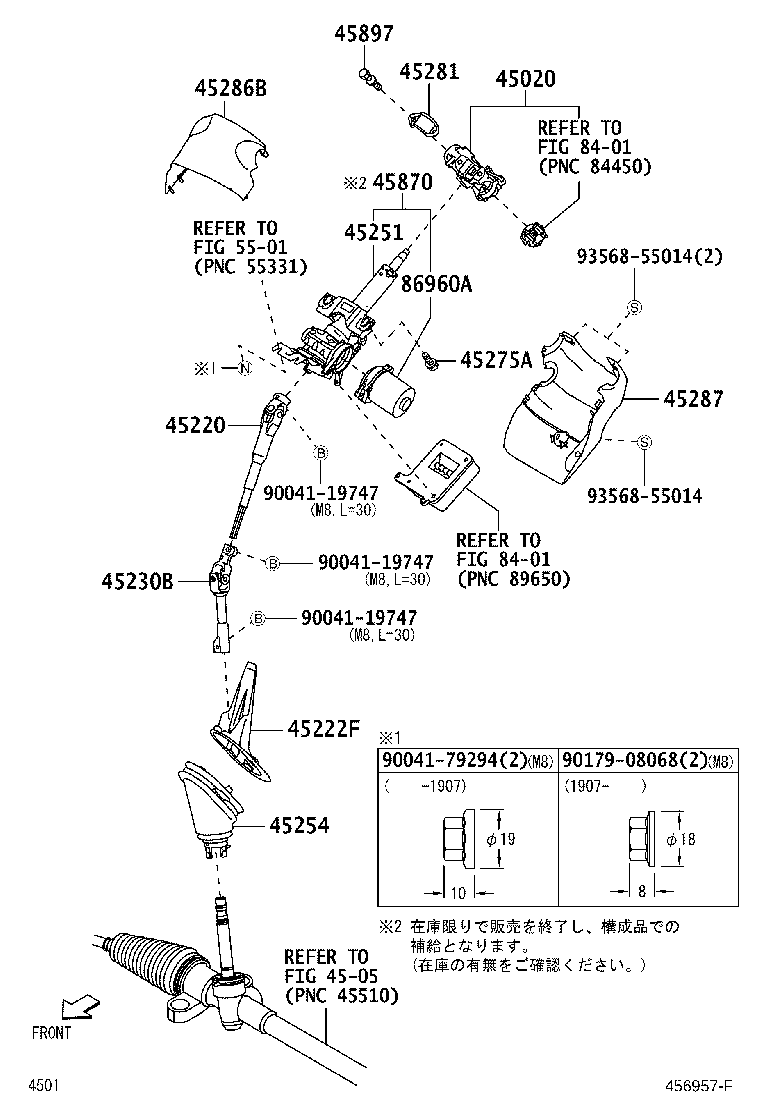

ILLUST NO. 1 OF 2(1507- )D

Click highlighted areas on diagram

Part #	Description	Period	Qty
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-B2230	LA700,710	07/2015 - 05/2016	1
45222F - COVER, DUST
45222-B2160	LA700,710	07/2015 - 05/2016	1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45290-B2180	LA700,710	07/2015 - 05/2016	1
45251 - TUBE SET, STEERING COLUMN
45251-B9020	LA700,710..G,L,X	07/2015 - 05/2016	1
45251-B9040	LA700,710..TBO ﾄﾞﾗｲﾋﾞﾝｸﾞｻﾎﾟｰﾄﾊﾟｯｸ	07/2015 - 05/2016	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-B2120	LA700,710	07/2015 - 05/2016	1
45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
91551-80822	LA700,710 M8,L=22	07/2015 - 05/2016	2
45281 - HOUSING, STEERING COLUMN
45281-B2050	LA700,710..G,L,X	07/2015 - 05/2016	1
45286B - COVER, STEERING COLUMN, UPR
45286-B2120B0	LA700,710 DK.GRAY,TRIM1#	07/2015 - 05/2016	1
45287 - COVER, STEERING COLUMN, LWR
45287-B2320B0	LA700,710 DK.GRAY,TRIM1#	07/2015 - 05/2016	1
45287-B2330B0	LA700,710..TBO ﾄﾞﾗｲﾋﾞﾝｸﾞｻﾎﾟｰﾄﾊﾟｯｸ,DK.GRAY,TRIM1#	07/2015 - 05/2016	1
45870 - TUBE ASSY, STEERING COLUMN
45870-B2C40	LA700,710..TBO ﾄﾞﾗｲﾋﾞﾝｸﾞｻﾎﾟｰﾄﾊﾟｯｸ	07/2015 - 05/2016	1
45870-B2C30	LA700,710..G,L,X	07/2015 - 05/2016	1
45897 - BOLT, STEERING LOCK SET
45897-B5010	LA700,710..G,L,X M8,L=27	07/2015 - 05/2016	2
86960A - MOTOR SET, POWER STEERING
80960-B9010	LA700,710	07/2015 - 05/2016	1
Common parts
90041-19747
90041-79294
90179-08068
93568-55014
Linked diagrams
4505
5501
8401

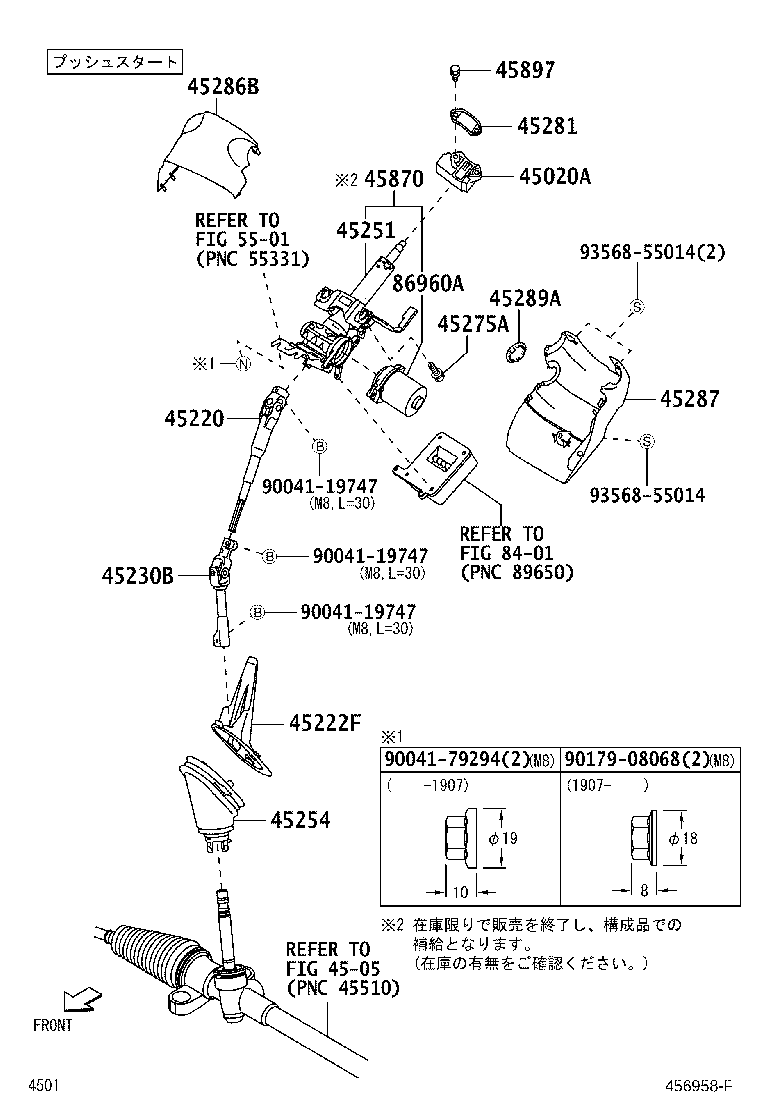

ILLUST NO. 2 OF 2(1507-1605)G,L,X ; (1605- )G,L

Click highlighted areas on diagram

ﾌﾟｯｼｭｽﾀｰﾄ

Part #	Description	Period	Qty
45020A - ACTUATOR ASSY, STEERING LOCK
45020-B2340	LA700,710..G,L,X	07/2015 - 05/2016	1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-B2230	LA700,710	07/2015 - 05/2016	1
45222F - COVER, DUST
45222-B2160	LA700,710	07/2015 - 05/2016	1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45290-B2180	LA700,710	07/2015 - 05/2016	1
45251 - TUBE SET, STEERING COLUMN
45251-B9020	LA700,710..G,L,X	07/2015 - 05/2016	1
45251-B9040	LA700,710..TBO ﾄﾞﾗｲﾋﾞﾝｸﾞｻﾎﾟｰﾄﾊﾟｯｸ	07/2015 - 05/2016	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-B2120	LA700,710	07/2015 - 05/2016	1
45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
91551-80822	LA700,710 M8,L=22	07/2015 - 05/2016	2
45281 - HOUSING, STEERING COLUMN
45281-B2050	LA700,710..G,L,X	07/2015 - 05/2016	1
45286B - COVER, STEERING COLUMN, UPR
45286-B2120B0	LA700,710 DK.GRAY,TRIM1#	07/2015 - 05/2016	1
45287 - COVER, STEERING COLUMN, LWR
45287-B2320B0	LA700,710 DK.GRAY,TRIM1#	07/2015 - 05/2016	1
45287-B2330B0	LA700,710..TBO ﾄﾞﾗｲﾋﾞﾝｸﾞｻﾎﾟｰﾄﾊﾟｯｸ,DK.GRAY,TRIM1#	07/2015 - 05/2016	1
45289A - SUPPORT, STEERING COLUMN COVER
45289-B2030B1	LA700,710..G,L,X DK.GRAY,TRIM1#	07/2015 - 05/2016	1
45870 - TUBE ASSY, STEERING COLUMN
45870-B2C40	LA700,710..TBO ﾄﾞﾗｲﾋﾞﾝｸﾞｻﾎﾟｰﾄﾊﾟｯｸ	07/2015 - 05/2016	1
45870-B2C30	LA700,710..G,L,X	07/2015 - 05/2016	1
45897 - BOLT, STEERING LOCK SET
45897-B5010	LA700,710..G,L,X M8,L=27	07/2015 - 05/2016	2
86960A - MOTOR SET, POWER STEERING
80960-B9010	LA700,710	07/2015 - 05/2016	1
Common parts
90041-19747
90041-79294
90179-08068
93568-55014
Linked diagrams
4505
5501
8401
