LA710A-GBVZ (2015)
Toyota Pixis Mega

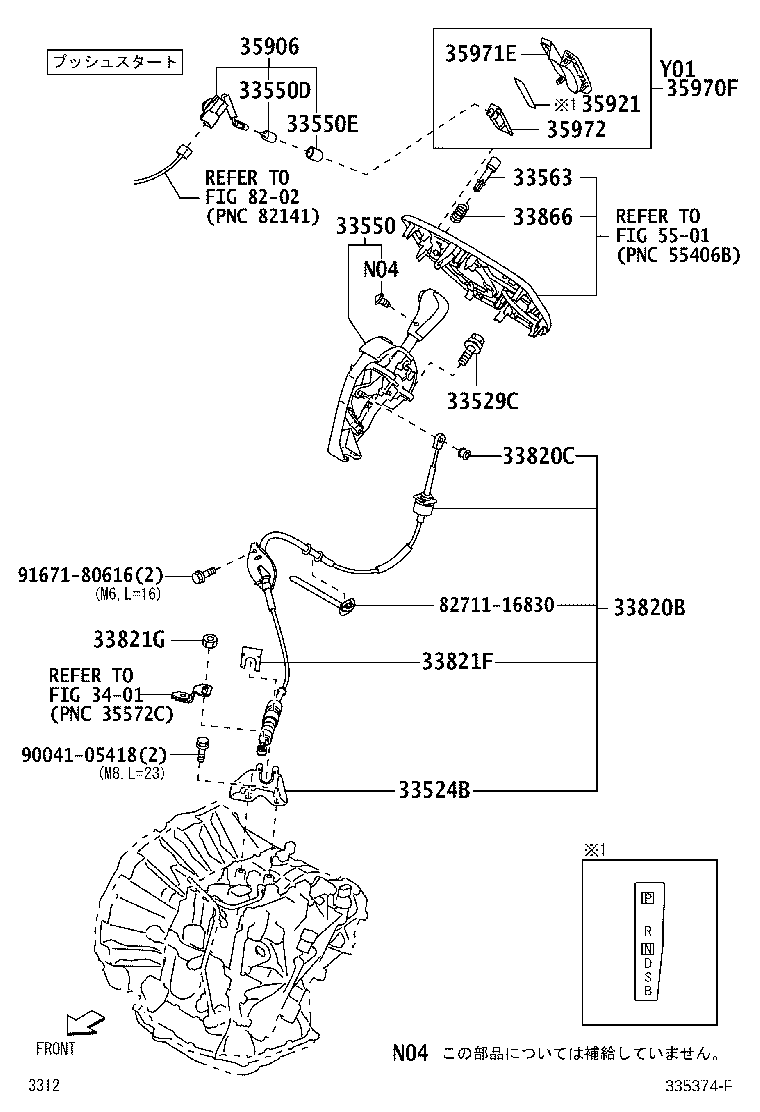

(1507-1605)D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-B2012 |
LA700,710 |
1 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 91671-80830 |
LA700,710 M8,L=30 |
3 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-B2641B0 |
LA700,710..L,X DK.GRAY,TRIM1# |
1 | ||
| 33550-B2691C1 |
LA700,710..G SILVER,TRIM1# |
1 | ||
| 33550-B2642B0 |
LA700,710..L,X DK.GRAY,TRIM1# |
1 | ||
| 33550-B2692C1 |
LA700,710..G SILVER,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 35955-B2040 |
LA700,710 |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-B2060 |
LA700,710 |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-B2400 |
LA700,710 |
1 | ||
| 33820C - BUSH (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33835-B1010 |
LA700,710 |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90044-68379 |
LA700,710 |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06274 |
LA700,710 M6 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 82285-B2030 |
LA700,710 ﾗﾝﾌﾟ付き |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-B2020 |
LA700,710 |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 58205-B2050B4 |
LA700,710..G,L,X SILVER,TRIM1# |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 58216-B2080B4 |
LA700,710..G,L,X SILVER,TRIM1# |
1 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 55534-B2010 |
LA700,710 |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82711-16830 | ||||
| 90041-05418 | ||||
| 91671-80616 | ||||
| 91671-80640 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 4501 | ||||
| 5501 | ||||
| 8202 | ||||

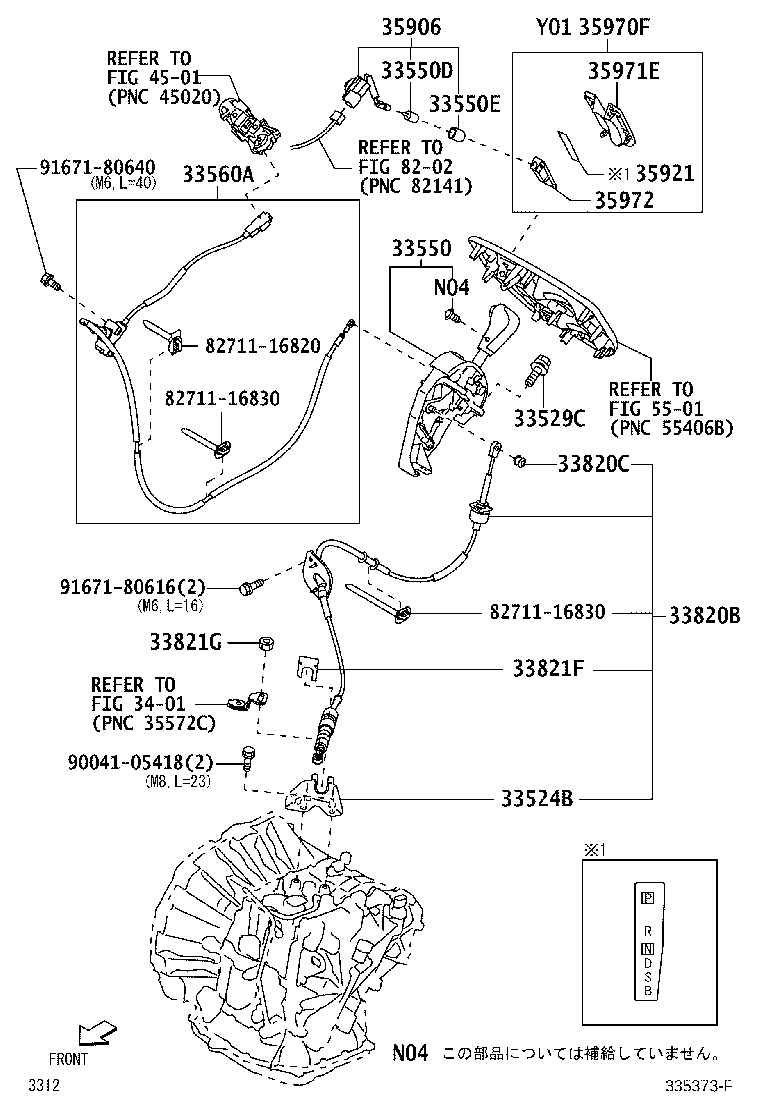

(1507-1605)G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-B2012 |
LA700,710 |
1 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 91671-80830 |
LA700,710 M8,L=30 |
3 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-B2641B0 |
LA700,710..L,X DK.GRAY,TRIM1# |
1 | ||
| 33550-B2691C1 |
LA700,710..G SILVER,TRIM1# |
1 | ||
| 33550-B2642B0 |
LA700,710..L,X DK.GRAY,TRIM1# |
1 | ||
| 33550-B2692C1 |
LA700,710..G SILVER,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 35955-B2040 |
LA700,710 |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-B2060 |
LA700,710 |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-B2010 |
LA700,710..G,L,X |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-B2400 |
LA700,710 |
1 | ||
| 33820C - BUSH (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33835-B1010 |
LA700,710 |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90044-68379 |
LA700,710 |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06274 |
LA700,710 M6 |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-B2010 |
LA700,710..G,L,X |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 82285-B2030 |
LA700,710 ﾗﾝﾌﾟ付き |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-B2020 |
LA700,710 |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 58205-B2050B4 |
LA700,710..G,L,X SILVER,TRIM1# |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 58216-B2080B4 |
LA700,710..G,L,X SILVER,TRIM1# |
1 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 55534-B2010 |
LA700,710 |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90041-05418 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 5501 | ||||
| 8202 | ||||

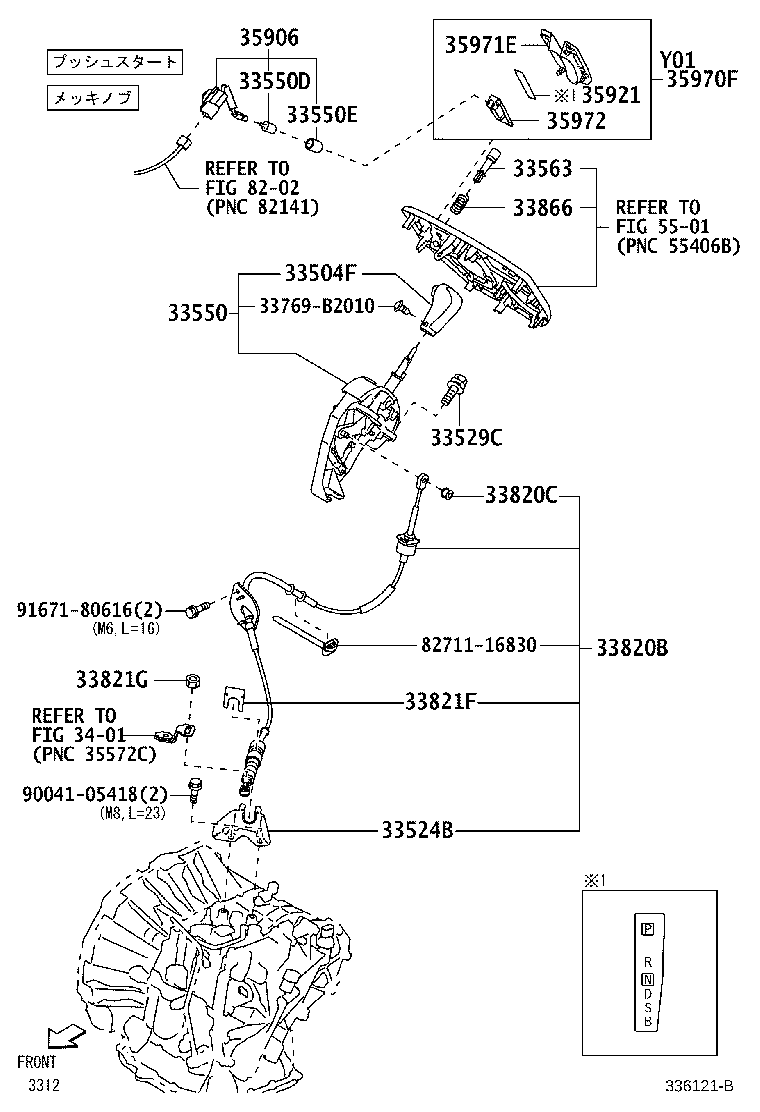

(1507-1605)L,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-B2210 |
LA700,710..L,X |
1 | ||
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-B2012 |
LA700,710 |
1 | ||
| 33529C - BOLT, SHIFT LEVER | ||||
| 91671-80830 |
LA700,710 M8,L=30 |
3 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-B2641B0 |
LA700,710..L,X DK.GRAY,TRIM1# |
1 | ||
| 33550-B2691C1 |
LA700,710..G SILVER,TRIM1# |
1 | ||
| 33550-B2642B0 |
LA700,710..L,X DK.GRAY,TRIM1# |
1 | ||
| 33550-B2692C1 |
LA700,710..G SILVER,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 35955-B2040 |
LA700,710 |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 35956-B2060 |
LA700,710 |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-B2010 |
LA700,710..G,L,X |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-B2400 |
LA700,710 |
1 | ||
| 33820C - BUSH (FOR TRANSMISSION CONTROL CABLE) | ||||
| 33835-B1010 |
LA700,710 |
1 | ||
| 33821F - CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90044-68379 |
LA700,710 |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06274 |
LA700,710 M6 |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-B2010 |
LA700,710..G,L,X |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 82285-B2030 |
LA700,710 ﾗﾝﾌﾟ付き |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-B2020 |
LA700,710 |
1 | ||
| 35970F - HOUSING ASSY, POSITION INDICATOR | ||||
| 58205-B2050B4 |
LA700,710..G,L,X SILVER,TRIM1# |
1 | ||
| 35971E - HOUSING, POSITION INDICATOR | ||||
| 58216-B2080B4 |
LA700,710..G,L,X SILVER,TRIM1# |
1 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 55534-B2010 |
LA700,710 |
1 | ||
| Common parts | ||||
| 33769-B2010 | ||||
| 82711-16830 | ||||
| 90041-05418 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 5501 | ||||
| 8202 | ||||
