LA710A-GBVZ (2015)
Toyota Pixis Mega

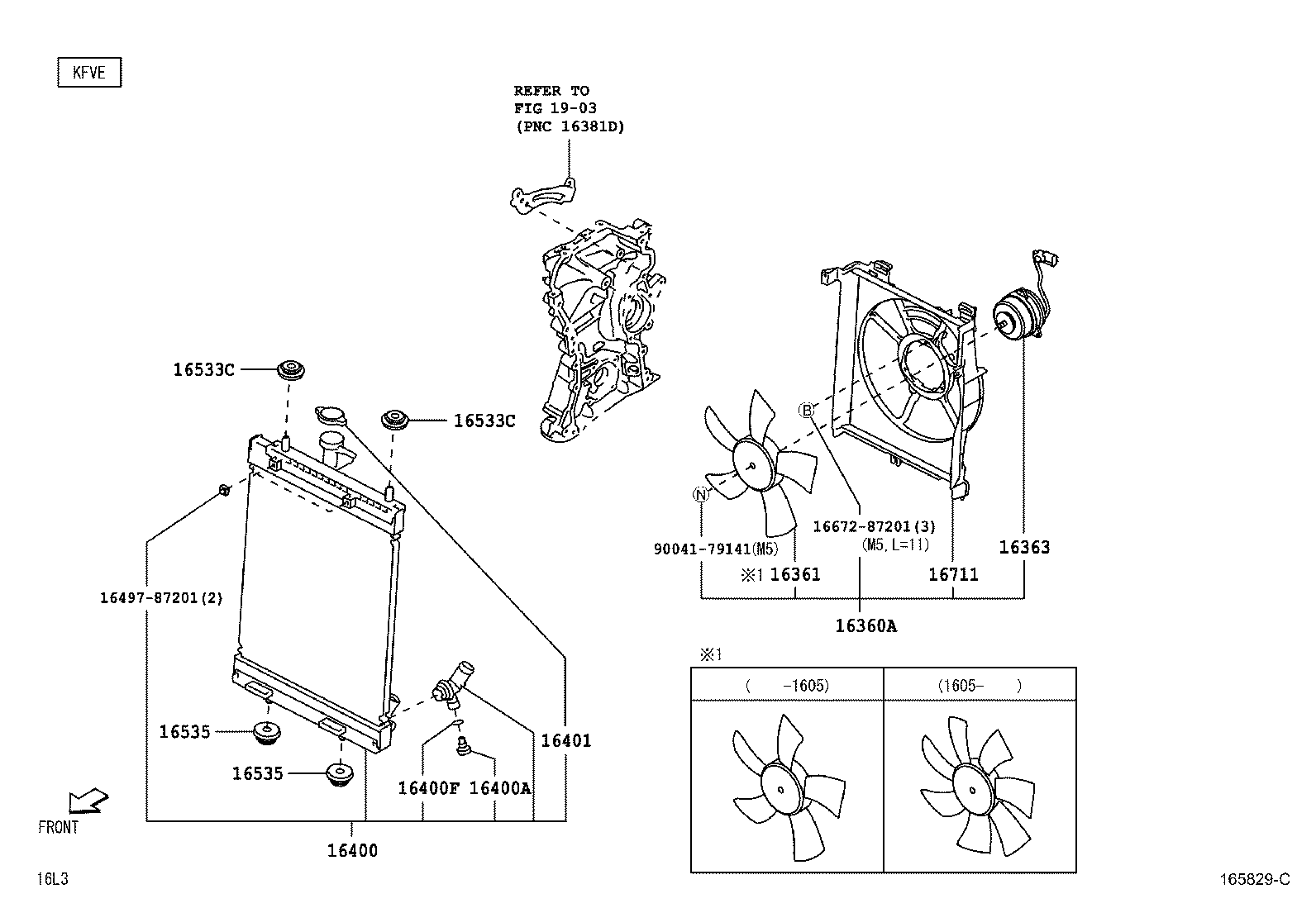

(1507- )KFVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-B2071 |
KFVET..LA710 |
1 | ||
| 16360-B2141 |
KFV#..LA700;KFVE..LA710 |
1 | ||
| 16361 - FAN | ||||
| 16361-B2060 |
KFV#..LA700;KFVE..LA710 |
1 | ||
| 16361-B2030 |
KFVET..LA710 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-B2030 |
KFV#..LA700;KFVE..LA710 |
1 | ||
| 16363-B2020 |
KFVET..LA710 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-B2330 |
KFVE..LA700,710 |
1 | ||
| 16400-B2360 |
KFVET..LA700,710 |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-B2020 |
KFV#..LA700,710 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-B2010 |
KFV#..LA700,710 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-B2010 |
KFV#..LA700,710 |
1 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
KFV#..LA700,710 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
KFV#..LA700,710 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
KFV#..LA700,710 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
KFV#..LA700,710 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-B2080 |
KFV#..LA700,710 |
1 | ||
| Common parts | ||||
| 16497-87201 | ||||
| 16672-87201 | ||||
| 90041-79141 | ||||
| Linked diagrams | ||||
| 1903 | ||||

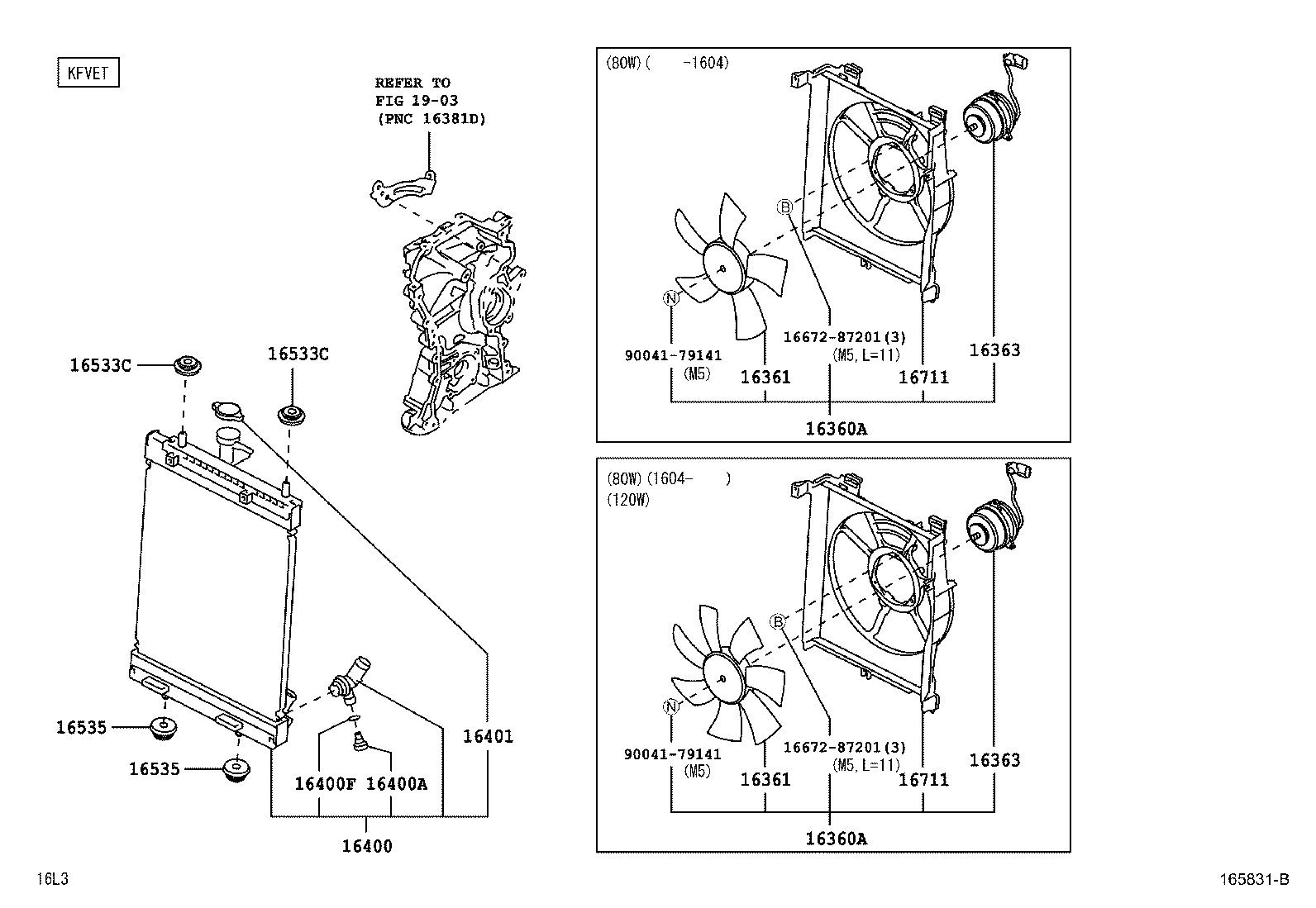

(1507- )KFVET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-B2071 |
KFVET..LA710 |
1 | ||
| 16360-B2141 |
KFV#..LA700;KFVE..LA710 |
1 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-B2071 |
KFVET..LA710 |
1 | ||
| 16360-B2141 |
KFV#..LA700;KFVE..LA710 |
1 | ||
| 16361 - FAN | ||||
| 16361-B2060 |
KFV#..LA700;KFVE..LA710 |
1 | ||
| 16361-B2030 |
KFVET..LA710 |
1 | ||
| 16361 - FAN | ||||
| 16361-B2060 |
KFV#..LA700;KFVE..LA710 |
1 | ||
| 16361-B2030 |
KFVET..LA710 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-B2030 |
KFV#..LA700;KFVE..LA710 |
1 | ||
| 16363-B2020 |
KFVET..LA710 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-B2030 |
KFV#..LA700;KFVE..LA710 |
1 | ||
| 16363-B2020 |
KFVET..LA710 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-B2330 |
KFVE..LA700,710 |
1 | ||
| 16400-B2360 |
KFVET..LA700,710 |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-B2020 |
KFV#..LA700,710 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-B2010 |
KFV#..LA700,710 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-B2010 |
KFV#..LA700,710 |
1 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
KFV#..LA700,710 |
2 | ||
| 16533C - GROMMET(FOR RADIATOR SUPPORT) | ||||
| 90044-80621 |
KFV#..LA700,710 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
KFV#..LA700,710 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90044-80592 |
KFV#..LA700,710 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-B2080 |
KFV#..LA700,710 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-B2080 |
KFV#..LA700,710 |
1 | ||
| Common parts | ||||
| 16672-87201 | ||||
| 90041-79141 | ||||
| Linked diagrams | ||||
| 1903 | ||||

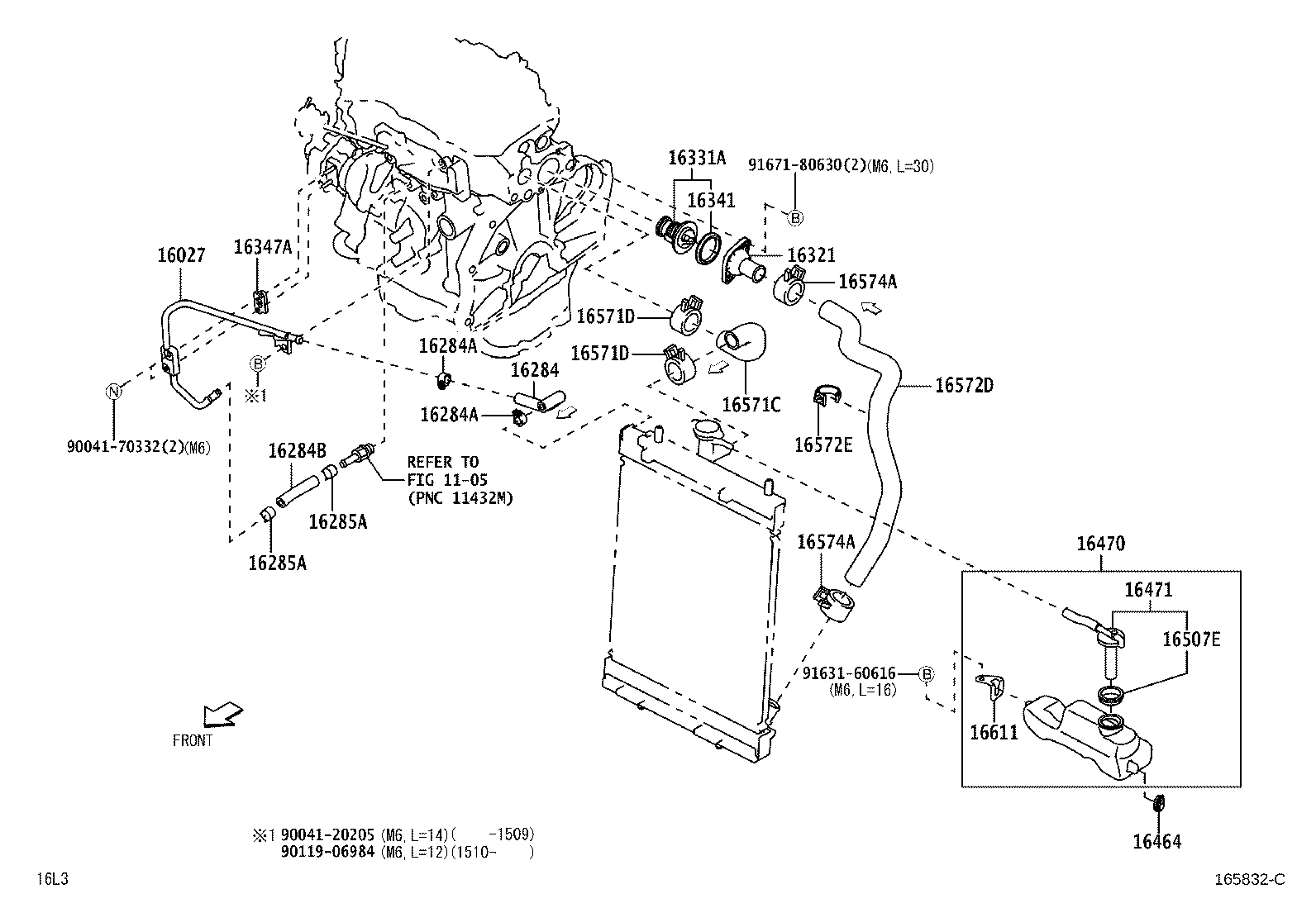

(1507- )KFVET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-B2060 |
KFVET..LA700,710 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-B2030 |
KFVET..LA700,710 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90044-67320 |
KFVET..LA700,710 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90044-67320 |
KFVET..LA700,710 |
2 | ||
| 16284B - HOSE, TURBO WATER, NO.2 | ||||
| 16284-B2081 |
KFVET..LA700,710 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90044-67320 |
KFVET..LA700,710 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90044-67320 |
KFVET..LA700,710 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-B2010 |
KFVE..LA700,710 |
1 | ||
| 16321-B2020 |
KFVET..LA700,710 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-B2020 |
KFVET..LA700,710 |
1 | ||
| 16340-B2010 |
KFVE..LA700,710 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-B2020 |
KFVET..LA700,710 |
1 | ||
| 16341-B2010 |
KFVE..LA700,710 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16258-B2020 |
KFVET..LA700,710 |
1 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-97201 |
KFV#..LA700,710 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-B2041 |
KFV#..LA700,710 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-B2041 |
KFV#..LA700,710 |
1 | ||
| 16507E - GASKET | ||||
| 90044-30318 |
KFV#..LA700,710 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B2120 |
KFVE..LA700,710 |
1 | ||
| 16571-B2070 |
KFVET..LA700,710 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KFV#..LA700,710 |
2 | ||
| 90044-67626 |
KFV#..LA700,710 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KFV#..LA700,710 |
2 | ||
| 90044-67626 |
KFV#..LA700,710 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B2100 |
KFV#..LA700,710 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-64884 |
KFV#..LA700,710 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67626 |
KFVE..LA700,710 |
1 | ||
| 90044-67387 |
KFVET..LA700,710 |
2 | ||
| 90044-67387 |
KFVE..LA700,710 |
1 | ||
| 90044-67626 |
KFVET..LA700,710 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67626 |
KFVE..LA700,710 |
1 | ||
| 90044-67387 |
KFVET..LA700,710 |
2 | ||
| 90044-67387 |
KFVE..LA700,710 |
1 | ||
| 90044-67626 |
KFVET..LA700,710 |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-B2050 |
KFV#..LA700,710 |
1 | ||
| Common parts | ||||
| 90041-20205 | ||||
| 90041-70332 | ||||
| 90119-06984 | ||||
| 91631-60616 | ||||
| 91671-80630 | ||||
| Linked diagrams | ||||
| 1105 | ||||

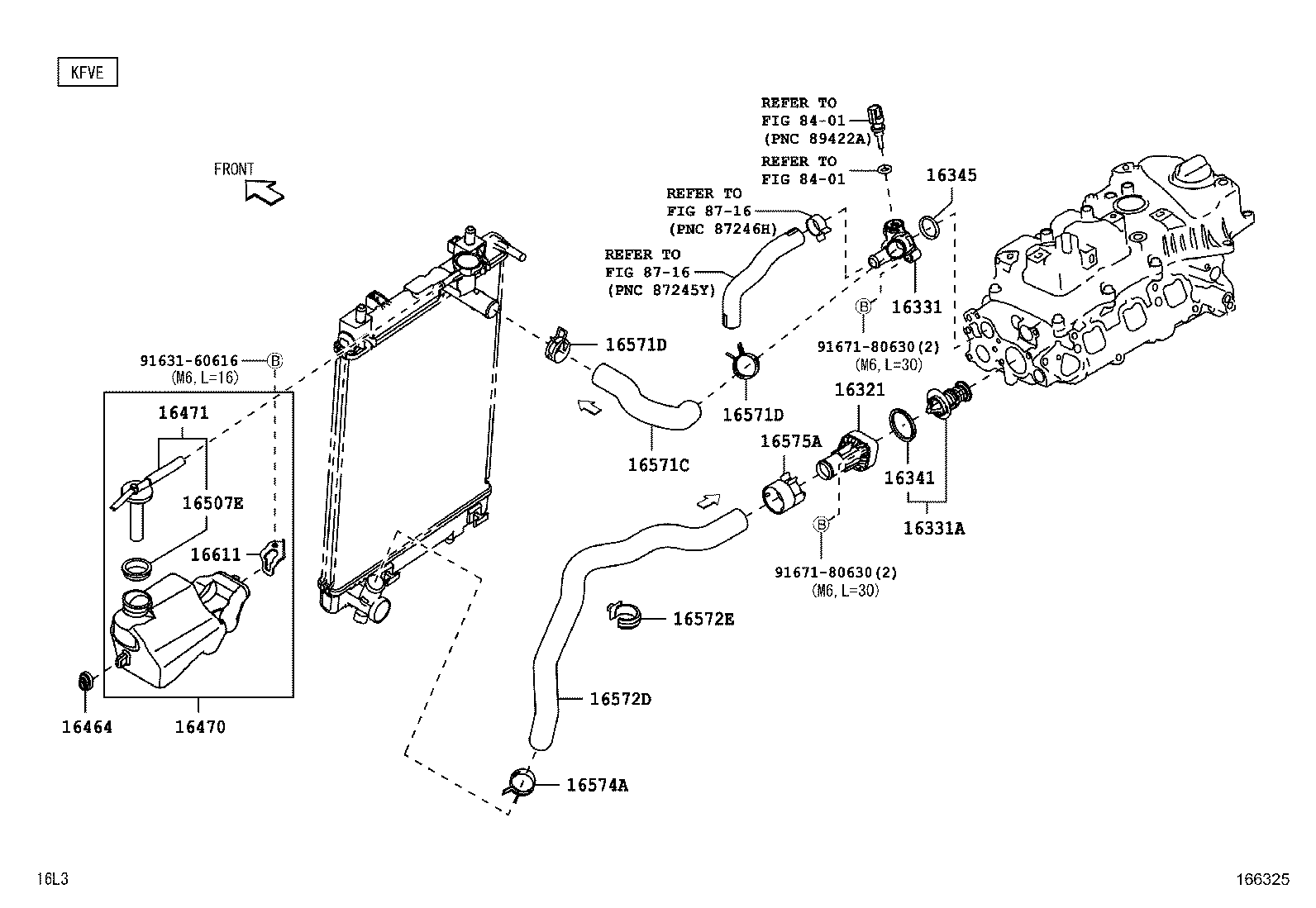

(1507- )KFVE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-B2010 |
KFVE..LA700,710 |
1 | ||
| 16321-B2020 |
KFVET..LA700,710 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-B2020 |
KFVE..LA700,710 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-B2020 |
KFVET..LA700,710 |
1 | ||
| 16340-B2010 |
KFVE..LA700,710 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-B2020 |
KFVET..LA700,710 |
1 | ||
| 16341-B2010 |
KFVE..LA700,710 |
1 | ||
| 16345 - GASKET, WATER OUTLET PIPE | ||||
| 16341-B2040 |
KFVE..LA700,710 |
1 | ||
| 16464 - BUSH, TANK LOWER | ||||
| 16464-97201 |
KFV#..LA700,710 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-B2041 |
KFV#..LA700,710 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-B2041 |
KFV#..LA700,710 |
1 | ||
| 16507E - GASKET | ||||
| 90044-30318 |
KFV#..LA700,710 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-B2120 |
KFVE..LA700,710 |
1 | ||
| 16571-B2070 |
KFVET..LA700,710 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KFV#..LA700,710 |
2 | ||
| 90044-67626 |
KFV#..LA700,710 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90044-67387 |
KFV#..LA700,710 |
2 | ||
| 90044-67626 |
KFV#..LA700,710 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-B2100 |
KFV#..LA700,710 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90044-64884 |
KFV#..LA700,710 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90044-67626 |
KFVE..LA700,710 |
1 | ||
| 90044-67387 |
KFVET..LA700,710 |
2 | ||
| 90044-67387 |
KFVE..LA700,710 |
1 | ||
| 90044-67626 |
KFVET..LA700,710 |
2 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90044-66040 |
KFVE..LA700,710 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-B2050 |
KFV#..LA700,710 |
1 | ||
| Common parts | ||||
| 91631-60616 | ||||
| 91671-80630 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8716 | ||||
