LA710A-GBVZ (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )KFV#..LA710

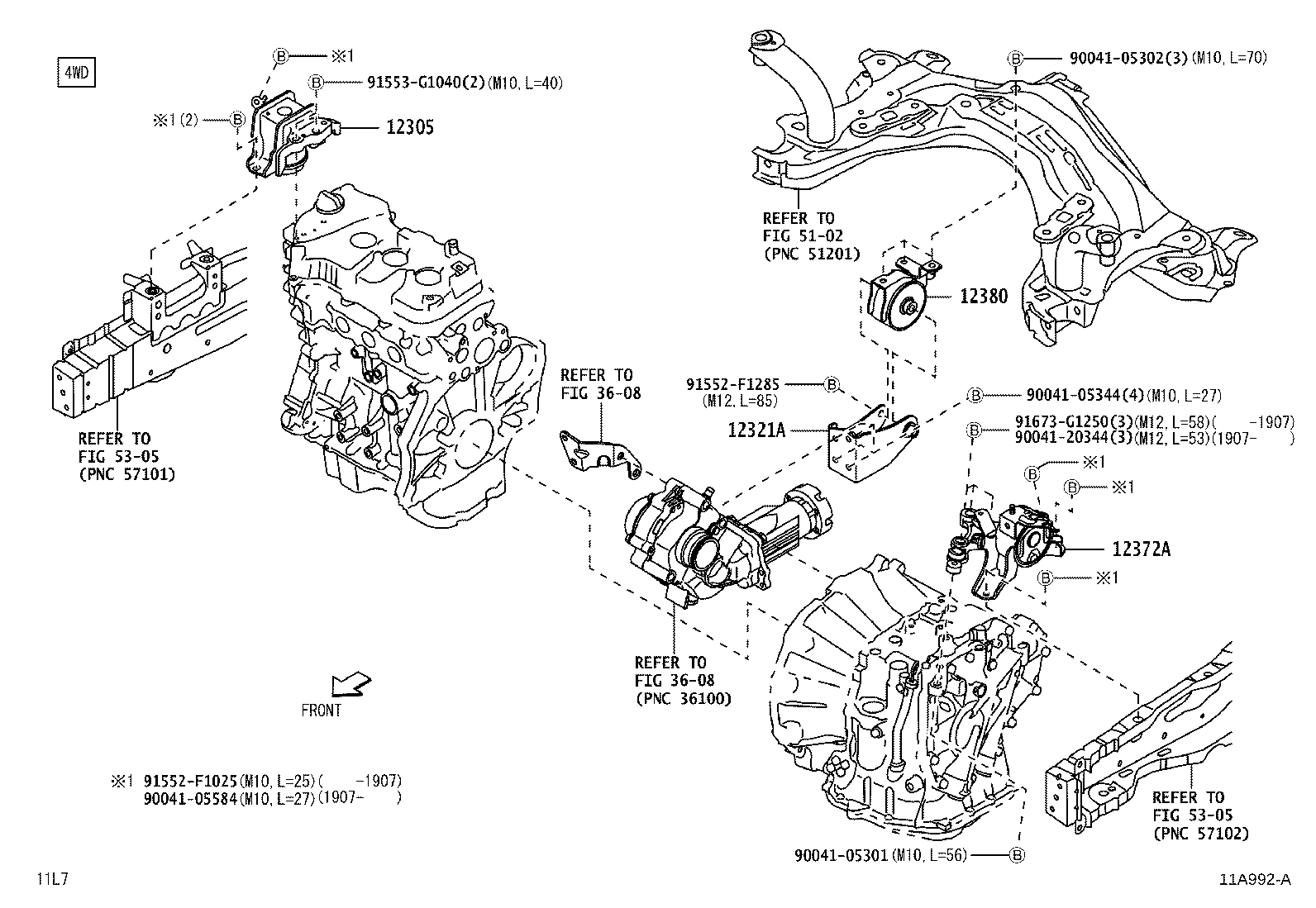

Click highlighted areas on diagram

4WD

diagram 12305 12321A 12372A 12380 3608 3608 5102 5305 5305 9004105301 9004105302 9004105344 9004105584 9004120344 91552F1025 91552F1285 91553G1040 91673G1250
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-B2210

KFV#..LA700,710

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-B2090

KFV#..LA710

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-B2120

KFV#..LA700,710

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-B2071

KFV#..LA710

 1
Common parts
90041-05301
90041-05302
90041-05344
90041-05584
90041-20344
91552-F1025
91552-F1285
91553-G1040
91673-G1250
Linked diagrams
3608
5102
5305
