LA710A-GBMF (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

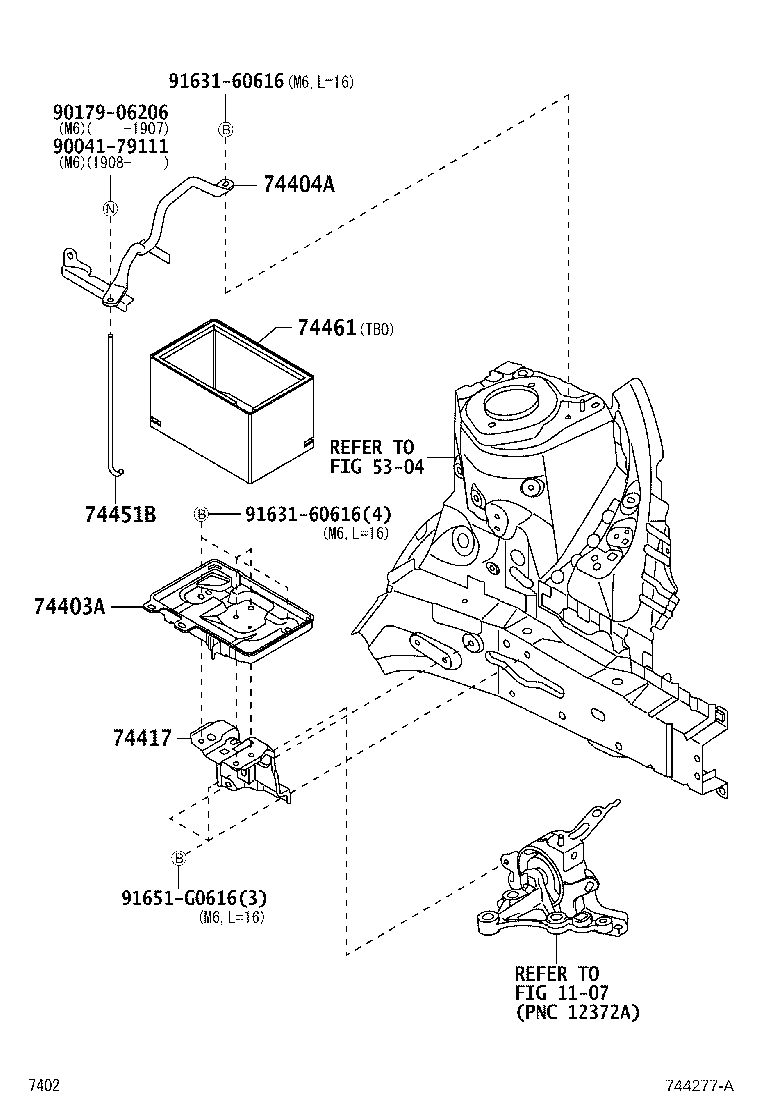

Click highlighted areas on diagram

diagram 1107 5304 74403A 74404A 74417 74451B 74461 9004179111 9017906206 9163160616 9163160616 91651G0616
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-B2050

LA700,710

 1
74404A - CLAMP SUB-ASSY, BATTERY
74404-B2150

LA700,710

 1
74417 - BRACKET, BATTERY CARRIER
74417-B2040

LA700,710

 1
74451B - BOLT, BATTERY CLAMP
74451-B2010

LA700,710

 1
74461 - COVER, BATTERY
74405-B2060

LA700,710..TBO

 1
Common parts
90041-79111
90179-06206
91631-60616
91651-G0616
Linked diagrams
1107
5304
