LA710A-GBMF (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507-1605)

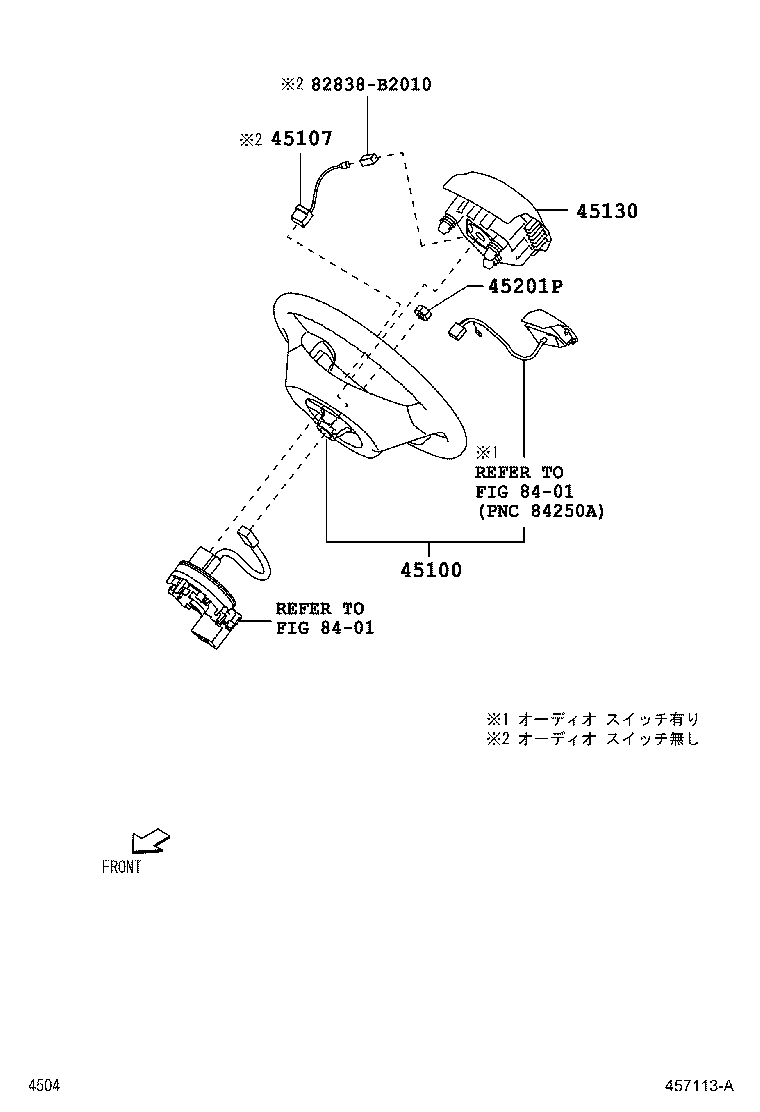

Click highlighted areas on diagram

diagram 45100 45107 45130 45201P 82838B2010 8401 8401
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45102-B2750B2

LA700,710..G

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ｼﾞｭﾝｾｲﾅﾋﾞｿｳﾁｬｸﾖｳ ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,SILVER,TRIM1#

 1
45102-B2380B2

LA700,710..D,L,X

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｼﾞｭﾝｾｲﾅﾋﾞｿｳﾁｬｸﾖｳ ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,SILVER,TRIM1#

 1
45102-B2260B2

LA700,710..D,L,X

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,SILVER,TRIM1#

 1
45102-B2270B2

LA700,710..G

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,SILVER,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-B2070

LA700,710

 1
45130 - BUTTON ASSY, HORN
45130-B2740B0

LA700,710

DK.GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90041-70014

LA700,710

M12

 1
Common parts
82838-B2010
Linked diagrams
8401
