LA710A-GBMF (2016)

Toyota Pixis Mega

Production May 2016 - Jan 2018
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1605- )

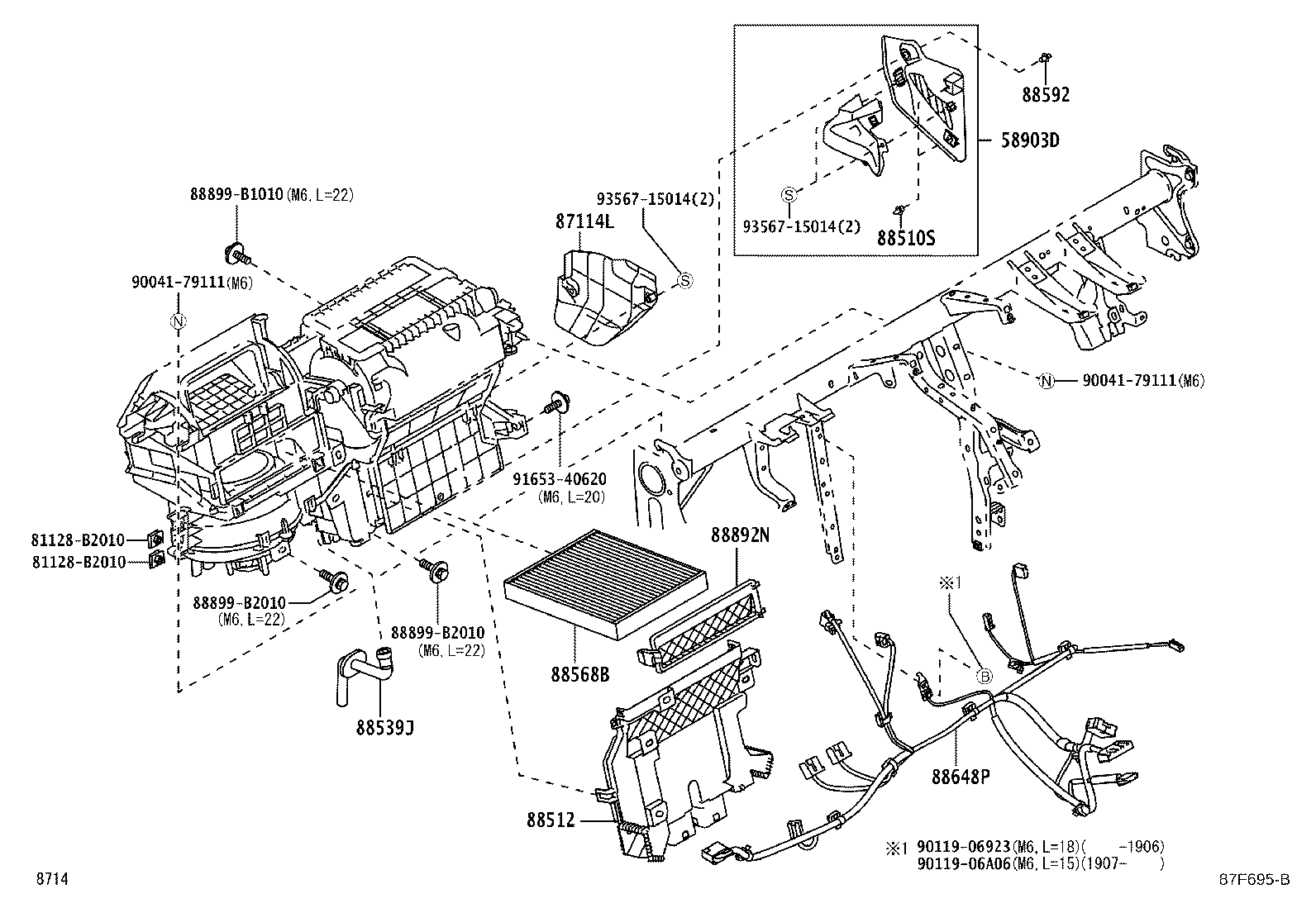

Click highlighted areas on diagram

ｴｱｺﾝﾜｲﾔ,ｸﾐﾂｹﾎﾞﾙﾄ

diagram 58903D 81128B2010 81128B2010 87114L 88510S 88512 88539J 88568B 88592 88648P 88892N 88899B1010 88899B2010 88899B2010 9004179111 9004179111 9011906923 9011906A06 9165340620 9356715014 9356715014
Part # Description Qty Price
58903D - PANEL SUB-ASSY, CONSOLE REAR END(FOR COOL BOX)
58805-B2040B0

LA700,710

DK.GRAY,TRIM1#

 1
87114L - COVER, HEATER, NO.2
87114-B2080

LA700,710

 1
88510S - CLIP (FOR COOLER UNIT COVER)
90467-10161

LA700,710

 2
88512 - DUCT, AIR
87211-B2090

LA710

 1
88539J - HOSE, DRAIN COOLER
88539-B2101

LA700,710

 1
88568B - FILTER, AIR
88568-B2030

LA700,710

粗塵ﾌｨﾙﾀ

 1
88568-B2070

LA700..D..PS1;LA700,710..G,L

ｽｰﾊﾟｰｸﾘｰﾝｴｱﾌｨﾙﾀｰ,花粉ﾌｨﾙﾀ

 1
88592 - RETAINER (FOR COOLER UNIT BRACKET)
90044-67579B0

LA700,710

DK.GRAY

 1
90044-67579C2

LA700,710

BLACK

 1
88648P - WIRE,AIR CONDITIONER,NO.1
88648-B2630

LA700,710..G,L

 1
88892N - COVER, COOLER, NO.2
88892-B2080

LA700,710

 1
Common parts
81128-B2010
88899-B1010
88899-B2010
90041-79111
90119-06923
90119-06A06
91653-40620
93567-15014

ILLUST NO. 2 OF 3(1605- )D

Click highlighted areas on diagram

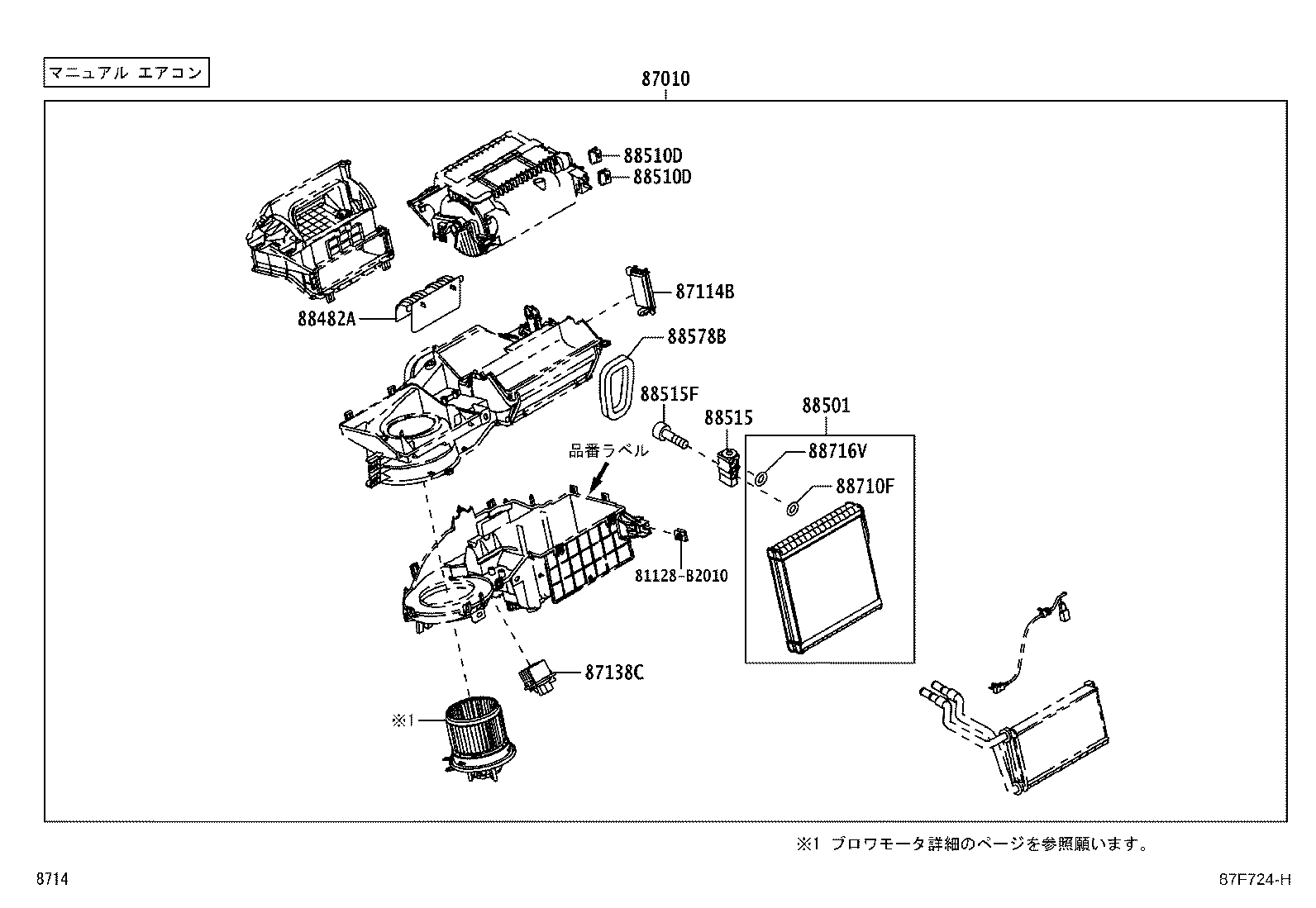

ﾏﾆｭｱﾙ ｴｱｺﾝ

diagram 81128B2010 87010 87114B 87138C 88482A 88501 88510D 88510D 88515 88515F 88578B 88710F 88716V
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-B2D00

LA700,710..G,L

 1
87114B - COVER, HEATER
87114-B2070

LA700,710

 1
87138C - RESISTOR, BLOWER
87138-B2040

LA700,710..G,L

 1
88482A - COVER
87114-B2090

LA700,710

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-B2060

LA700,710

 1
88515 - VALVE, COOLER EXPANSION
88515-B2030

LA700,710

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201

LA700,710

M5,L=40

 2
88578B - PACKING, COOLING UNIT, NO.1
88578-B2460

LA700,710

 1
88710F - RING, O
15188-87402

LA700,710

 1
88716V - RING, O(FOR COOLER UNIT)
15188-87403

LA700,710

 1
Common parts
81128-B2010

ILLUST NO. 3 OF 3(1605- )

Click highlighted areas on diagram

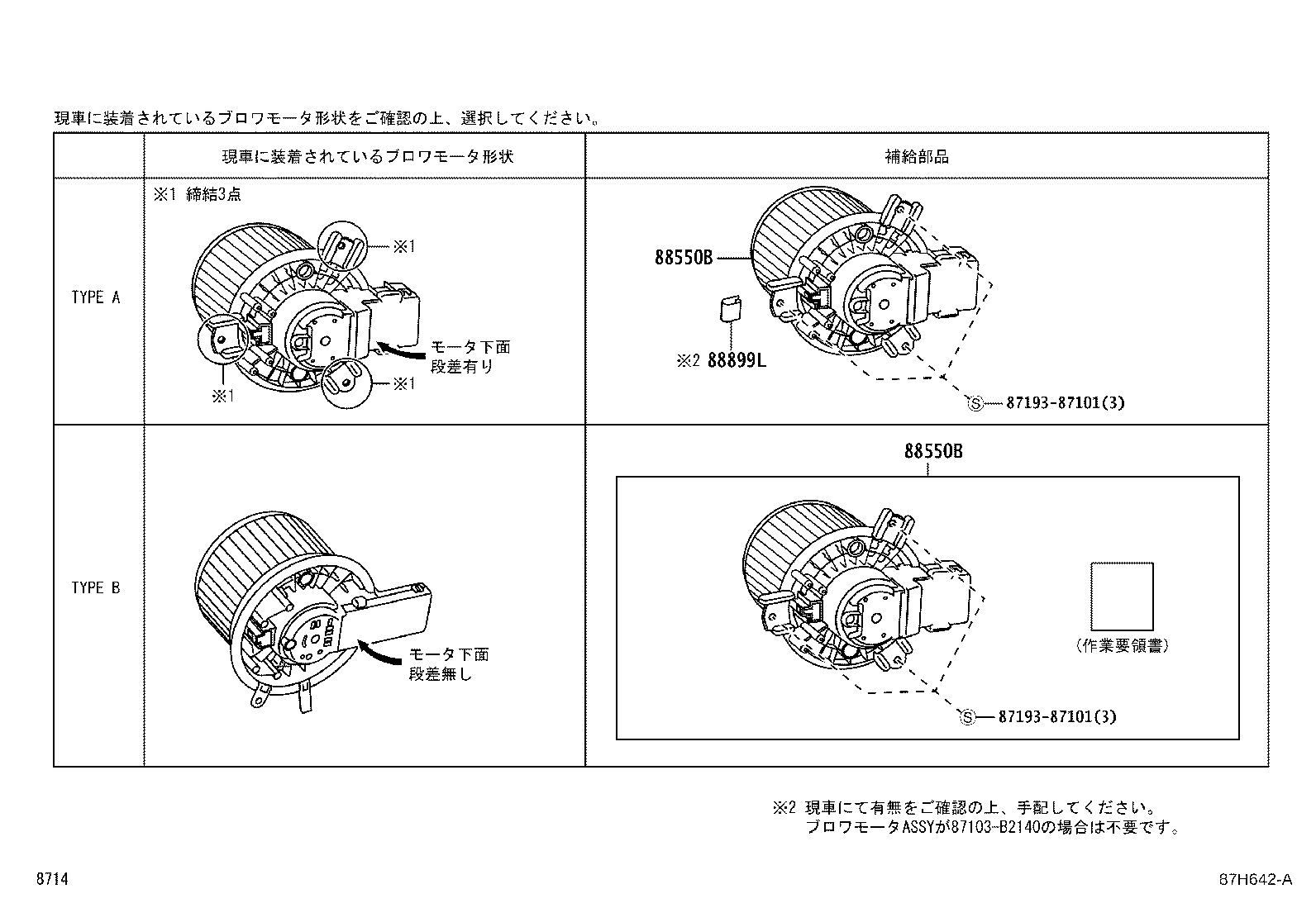

ﾌﾞﾛﾜﾓｰﾀ ｼｮｳｻｲ

diagram 8719387101 8719387101 88550B 88550B 88899L
Part # Description Qty Price
Common parts
87193-87101

ILLUST NO. 2 OF 3(1605- )G,L

Click highlighted areas on diagram

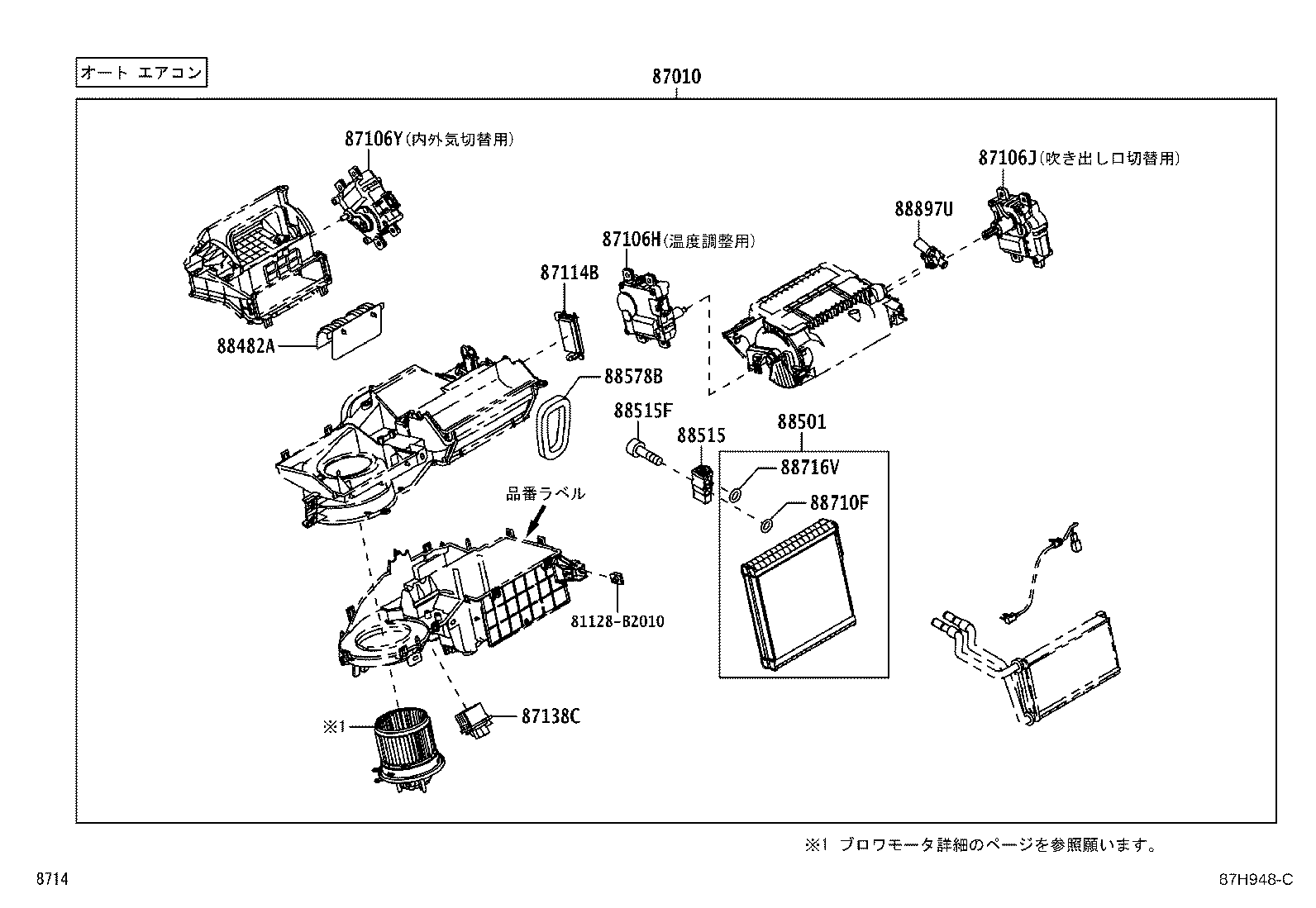

ｵｰﾄ ｴｱｺﾝ

diagram 81128B2010 87010 87106H 87106J 87106Y 87114B 87138C 88482A 88501 88515 88515F 88578B 88710F 88716V 88897U
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-B2D00

LA700,710..G,L

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
88660-B2040

LA700,710..G,L

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
88660-B2030

LA700,710..G,L

 1
87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH)
88660-B2050

LA700,710..G,L

 1
87114B - COVER, HEATER
87114-B2070

LA700,710

 1
87138C - RESISTOR, BLOWER
87138-B2040

LA700,710..G,L

 1
88482A - COVER
87114-B2090

LA700,710

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-B2060

LA700,710

 1
88515 - VALVE, COOLER EXPANSION
88515-B2030

LA700,710

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201

LA700,710

M5,L=40

 2
88578B - PACKING, COOLING UNIT, NO.1
88578-B2460

LA700,710

 1
88710F - RING, O
15188-87402

LA700,710

 1
88716V - RING, O(FOR COOLER UNIT)
15188-87403

LA700,710

 1
88897U - PIPE, ASPIRATOR
88897-B2030

LA700,710..G,L

 1
Common parts
81128-B2010
