LA710A-GBMF (2016)

Toyota Pixis Mega

Production May 2016 - Jan 2018
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507-1801)

Click highlighted areas on diagram

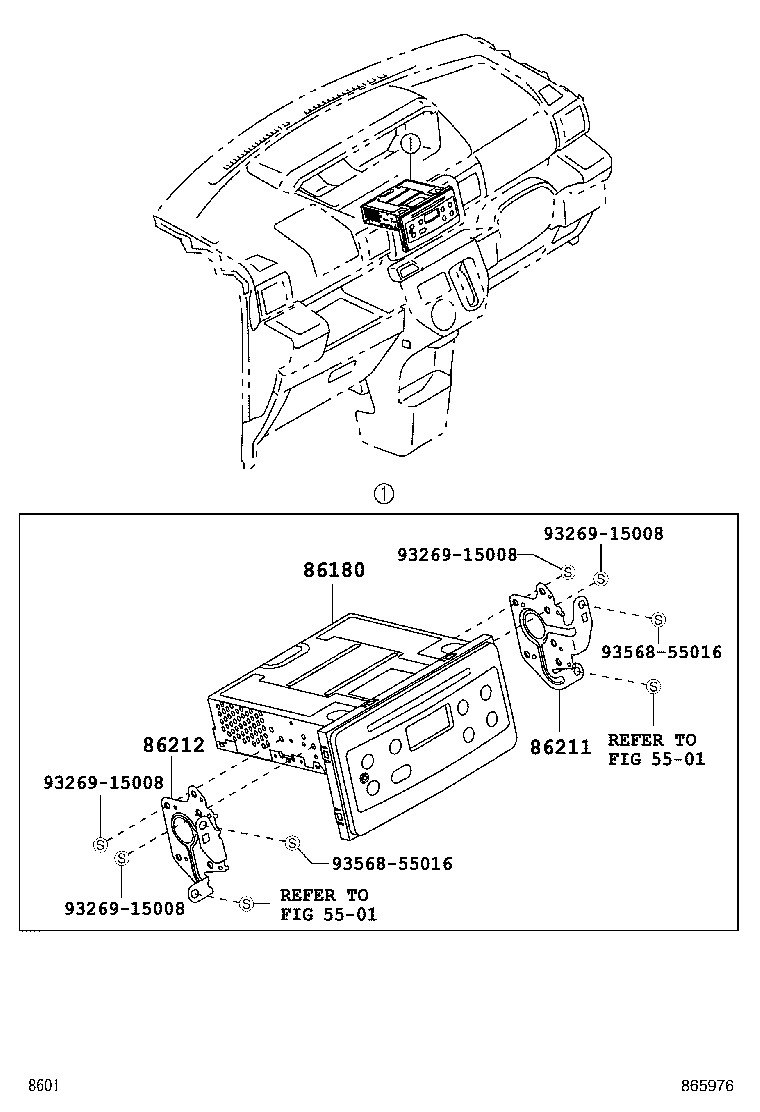

diagram 5501 5501 86180 86211 86212 9326915008 9326915008 9326915008 9326915008 9356855016 9356855016
Part # Description Qty Price
86180 - TUNER ASSY, STEREO COMPONENT
86180-B2801B0

LA700,710

富士通ﾃﾝ,ｲﾝﾃｸﾞﾚｰﾄｽﾃﾚｵ(CD+AUX 16CM*2),-,TRIM1#

 1
86211 - BRACKET, RADIO, NO.1
86211-B2380

LA700,710

ｲﾝﾃｸﾞﾚｰﾄｽﾃﾚｵ(CD+AUX 16CM*2)

 1
86212 - BRACKET, RADIO, NO.2
86212-B2380

LA700,710

ｲﾝﾃｸﾞﾚｰﾄｽﾃﾚｵ(CD+AUX 16CM*2)

 1
Common parts
93269-15008
93568-55016
Linked diagrams
5501
