LA710A-GBGZ (2015)
Toyota Pixis Mega
Production
Jul 2015
-
May 2016
Engine
KFVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1507- )

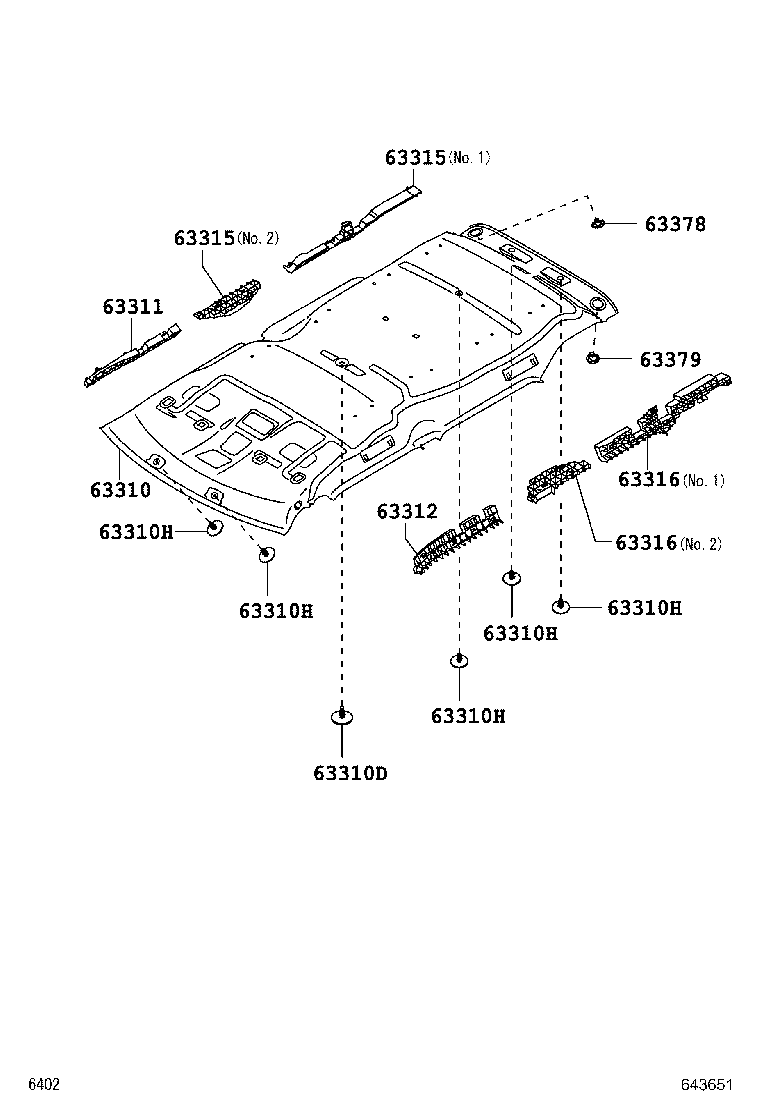

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-B2680B1 |
LA700,710 DARK GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90044-67571B2 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90044-67467B1 |
LA700,710 DK.GRAY,TRIM1# |
5 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90044-67467B1 |
LA700,710 DK.GRAY,TRIM1# |
5 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90044-67467B1 |
LA700,710 DK.GRAY,TRIM1# |
5 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90044-67467B1 |
LA700,710 DK.GRAY,TRIM1# |
5 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90044-67467B1 |
LA700,710 DK.GRAY,TRIM1# |
5 | ||
| 63311 - GARNISH, ROOF HEADLINING, FRONT RH | ||||
| 63691-B2120 |
LA700,710 |
1 | ||
| 63312 - GARNISH, ROOF HEADLINING, FRONT LH | ||||
| 63692-B2120 |
LA700,710 |
1 | ||
| 63315 - GARNISH, ROOF HEADLINING, REAR RH | ||||
| 63693-B2140 |
LA700,710 NO.2 |
1 | ||
| 63693-B2130 |
LA700,710 NO.1 |
1 | ||
| 63315 - GARNISH, ROOF HEADLINING, REAR RH | ||||
| 63693-B2140 |
LA700,710 NO.2 |
1 | ||
| 63693-B2130 |
LA700,710 NO.1 |
1 | ||
| 63316 - GARNISH, ROOF HEADLINING, REAR LH | ||||
| 63694-B2140 |
LA700,710 NO.2 |
1 | ||
| 63694-B2130 |
LA700,710 NO.1 |
1 | ||
| 63316 - GARNISH, ROOF HEADLINING, REAR LH | ||||
| 63694-B2140 |
LA700,710 NO.2 |
1 | ||
| 63694-B2130 |
LA700,710 NO.1 |
1 | ||
| 63378 - COVER, ROOF HEADLINING REAR TRIM, RH | ||||
| 63378-B2010B1 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 63379 - COVER, ROOF HEADLINING REAR TRIM, LH | ||||
| 63378-B2010B1 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
