LA710A-GBGZ (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

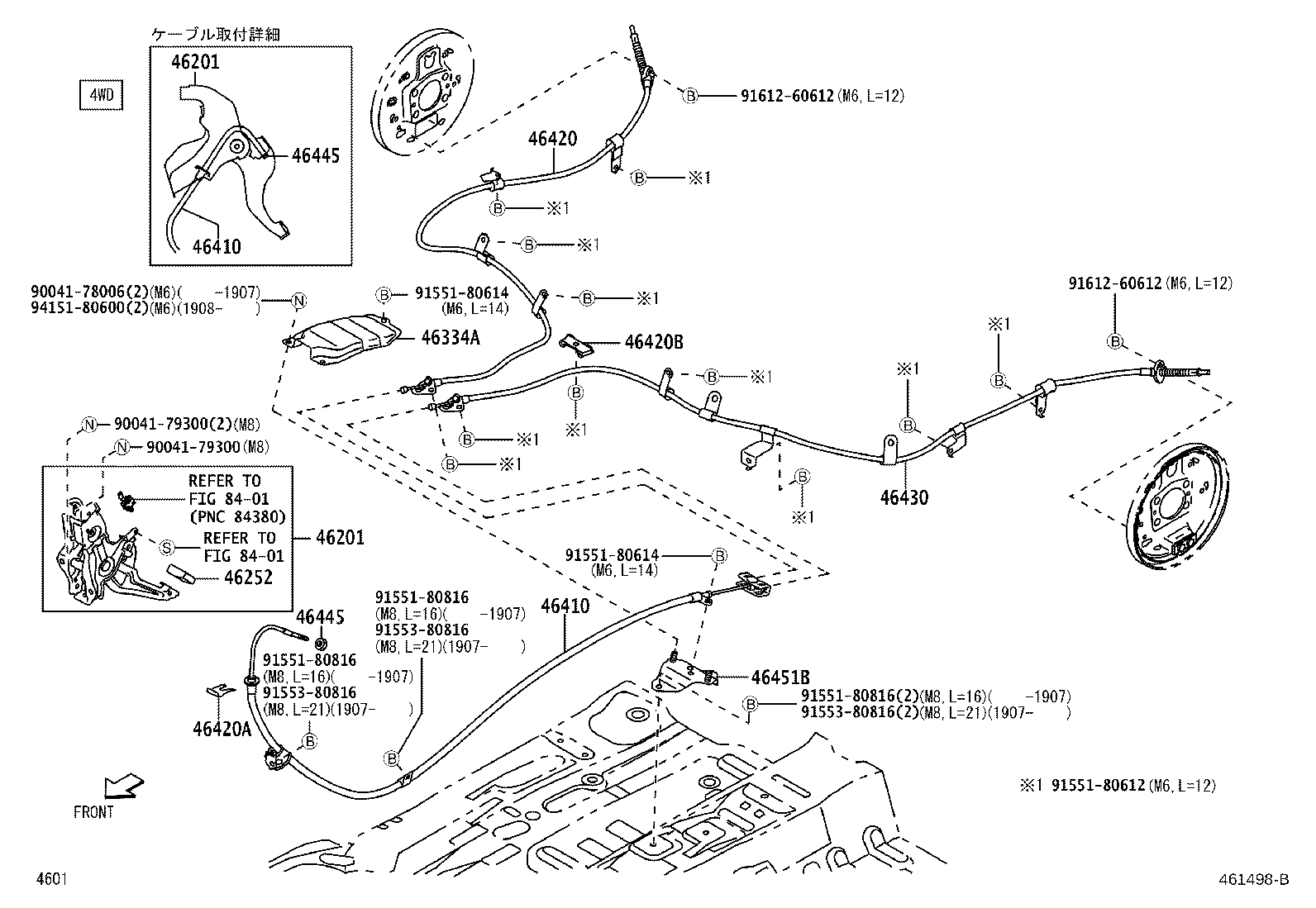

ILLUST NO. 2 OF 2(1507- )LA710

Click highlighted areas on diagram

4WD

diagram 46201 46201 46252 46334A 46410 46410 46420 46420A 46420B 46430 46445 46445 46451B 8401 8401 9004178006 9004179300 9004179300 9155180612 9155180614 9155180614 9155180816 9155180816 9155180816 9155380816 9155380816 9155380816 9161260612 9161260612 9415180600
Part # Description Qty Price
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46210-B2161

LA700,710

 1
46201 - PEDAL SUB-ASSY, PARKING BRAKE
46210-B2161

LA700,710

 1
46252 - PAD, PARKING PEDAL
46252-B2030

LA700,710

 1
46334A - PROTECTOR, PARKING BRAKE CABLE JOINT
57889-B2010

LA700,710

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-B2080

LA700,710

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-B2080

LA700,710

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-B2250

LA710

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90044-65529

LA700,710

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90044-61832

LA700,710

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-B2250

LA710

 1
46445 - NUT, PARKING BRAKE CABLE ADJUSTING, NO.2
90041-78060

LA700,710

M6

 1
46445 - NUT, PARKING BRAKE CABLE ADJUSTING, NO.2
90041-78060

LA700,710

M6

 1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
58253-B2010

LA700,710

 1
Common parts
90041-78006
90041-79300
91551-80612
91551-80614
91551-80816
91553-80816
91612-60612
94151-80600
Linked diagrams
8401
