LA710A-GBGZ (2015)
Toyota Pixis Mega
Production
Jul 2015
-
May 2016
Engine
KFVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

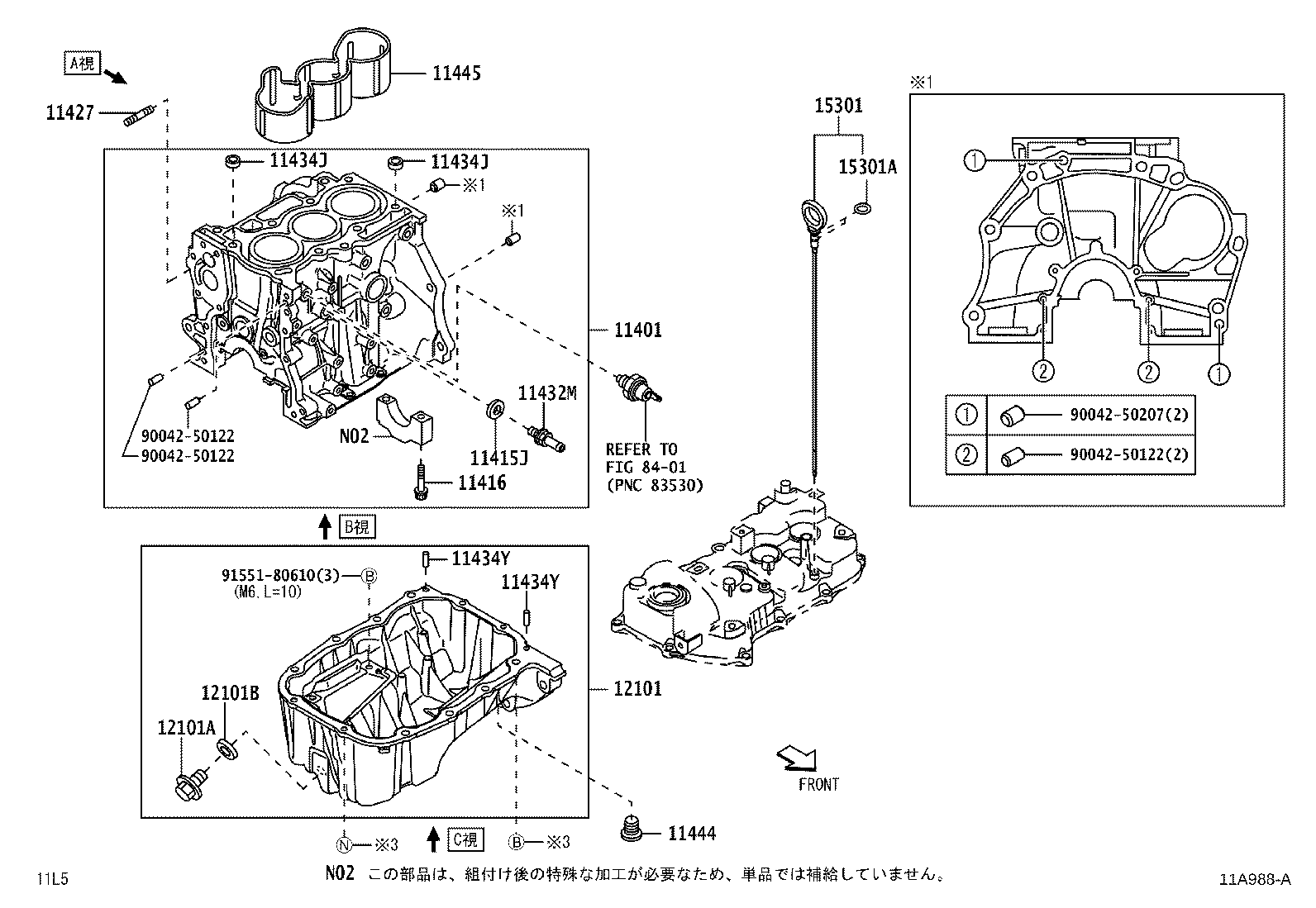

ILLUST NO. 1 OF 3(1507- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-B2190 |
KFVE..LA700,710 |
1 | ||
| 11401-B2143 |
KFVET..LA700,710 |
1 | ||
| 11415J - GASKET(FOR DRAIN COCK) | ||||
| 90044-30279 |
KFV#..LA700,710 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90041-05368 |
KFV#..LA700,710 |
8 | ||
| 11427 - BOLT, STUD(FOR TIMING CHAIN COVER SET) | ||||
| 90041-16498 |
KFV#..LA700,710 |
1 | ||
| 11432M - UNION(FOR CYLINDER BLOCK) | ||||
| 90044-04155 |
KFV#..LA700,710 |
1 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90042-53013 |
KFV#..LA700,710 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90042-53013 |
KFV#..LA700,710 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-06003 |
KFV#..LA700,710 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-06003 |
KFV#..LA700,710 |
2 | ||
| 11444 - PLUG, HOLE | ||||
| 11444-B2010 |
KFV#..LA700,710 |
2 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-B2030 |
KFV#..LA700,710 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-B2025 |
KFV#..LA700,710 ｱﾙﾐ |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90043-41087 |
KFV#..LA700,710 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90044-30281 |
KFV#..LA700,710 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-B2061 |
KFV#..LA700,710 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
KFV#..LA700,710 |
2 | ||
| Common parts | ||||
| 90042-50122 | ||||
| 90042-50207 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 8401 | ||||

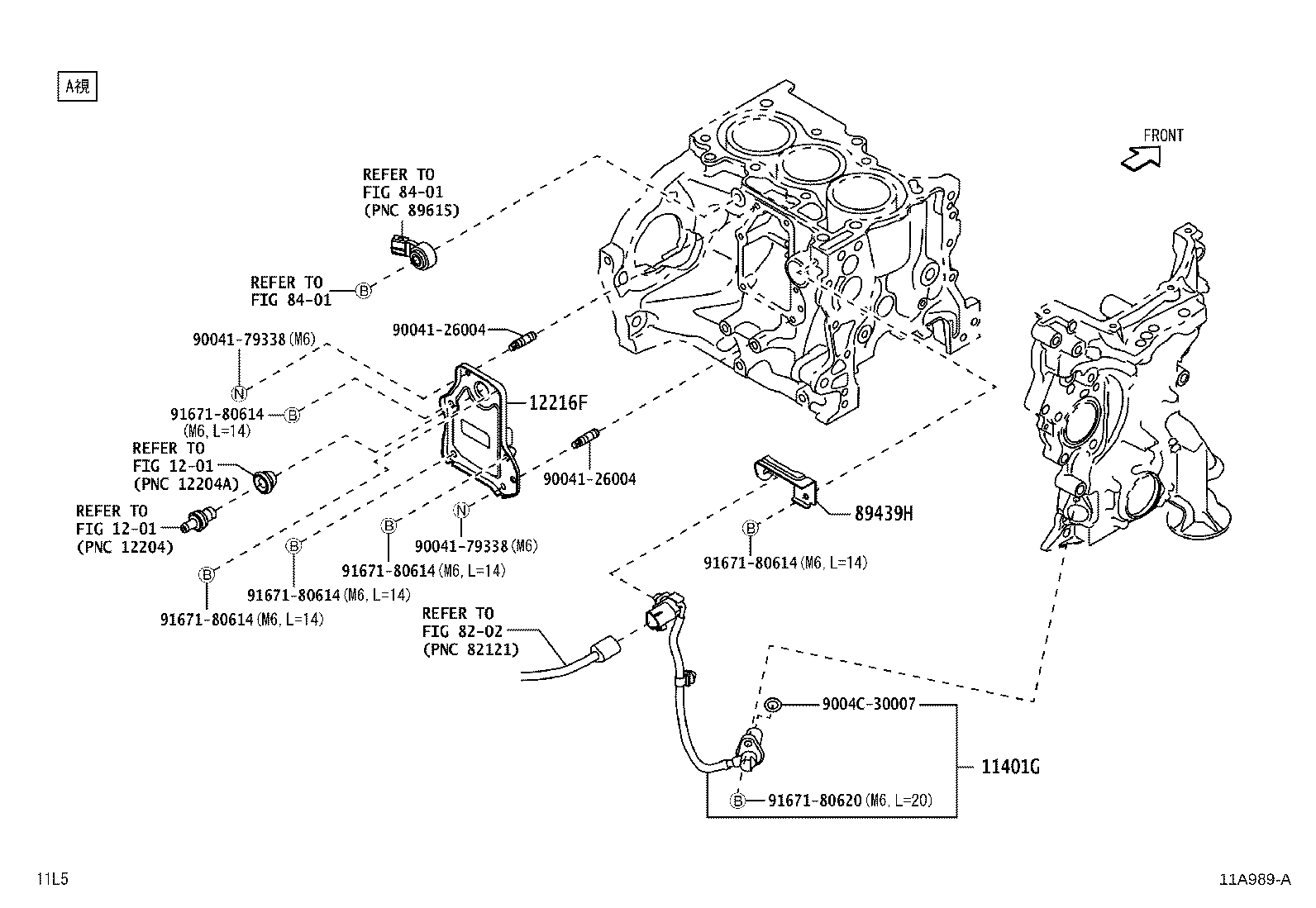

ILLUST NO. 2 OF 3(1507- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401G - SENSOR, CRANK POSITION | ||||
| 19311-B2030 |
KFV#..LA700,710 |
1 | ||
| 12216F - PLATE, VENTILATION BAFFLE | ||||
| 12216-B2021 |
KFV#..LA700,710 |
1 | ||
| 89439H - BRACKET, SENSOR | ||||
| 89439-B2071 |
LA700,710 |
1 | ||
| Common parts | ||||
| 90041-26004 | ||||
| 90041-79338 | ||||
| 9004C-30007 | ||||
| 91671-80614 | ||||
| 91671-80620 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 8202 | ||||
| 8401 | ||||

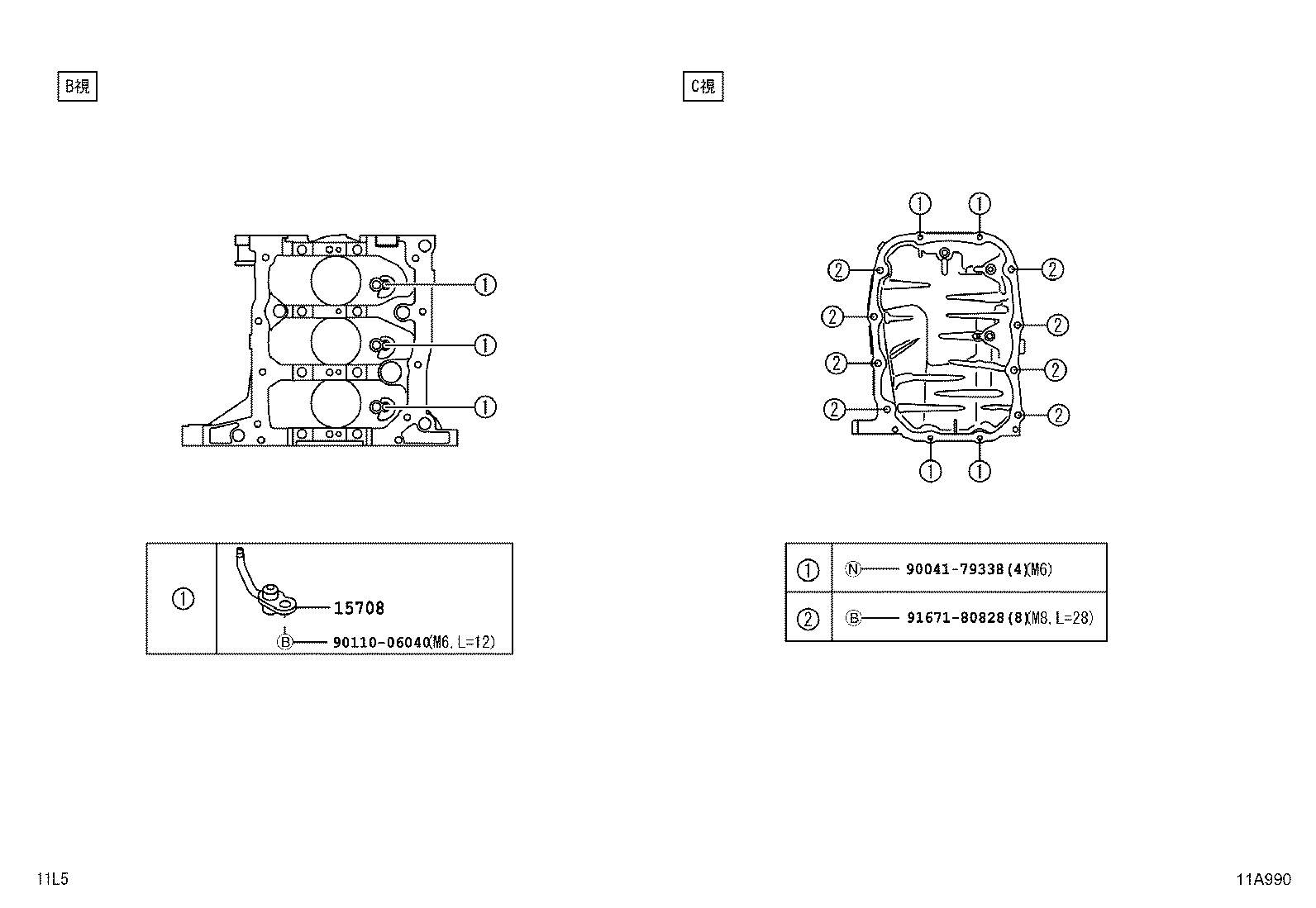

ILLUST NO. 3 OF 3(1507- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-B2010 |
KFV#..LA700,710 |
3 | ||
| Common parts | ||||
| 90041-79338 | ||||
| 90110-06040 | ||||
| 91671-80828 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
