LA700A-GBVZ (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

Click highlighted areas on diagram

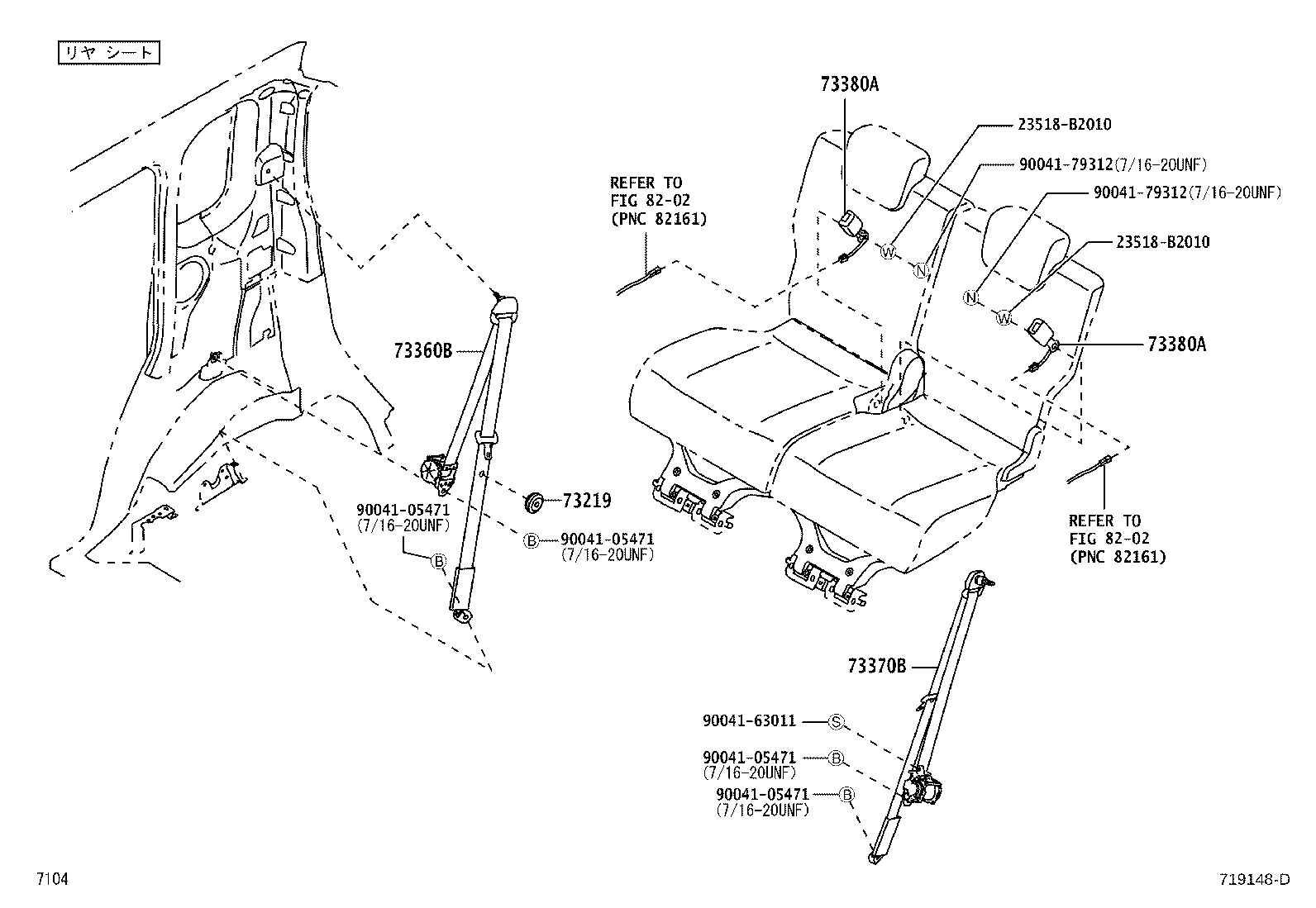

ﾘﾔｼｰﾄ

diagram 23518B2010 23518B2010 73219 73360B 73370B 73380A 73380A 8202 8202 9004105471 9004105471 9004105471 9004105471 9004163011 9004179312 9004179312
Part # Description Qty Price
73360B - BELT ASSY, REAR SEAT, OUTER
73360-B2400C0

LA700,710

BLACK,TRIM1#

 1
73370B - BELT ASSY, REAR SEAT, OUTER
73370-B2400C0

LA700,710

BLACK,TRIM1#

 1
73380A - BELT ASSY, REAR SEAT, INNER
73380-B2380B0

LA700,710

DK.GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-B2380B0

LA700,710

DK.GRAY,TRIM1#

 2
Common parts
23518-B2010
90041-05471
90041-63011
90041-79312
Linked diagrams
8202

(1507- )

Click highlighted areas on diagram

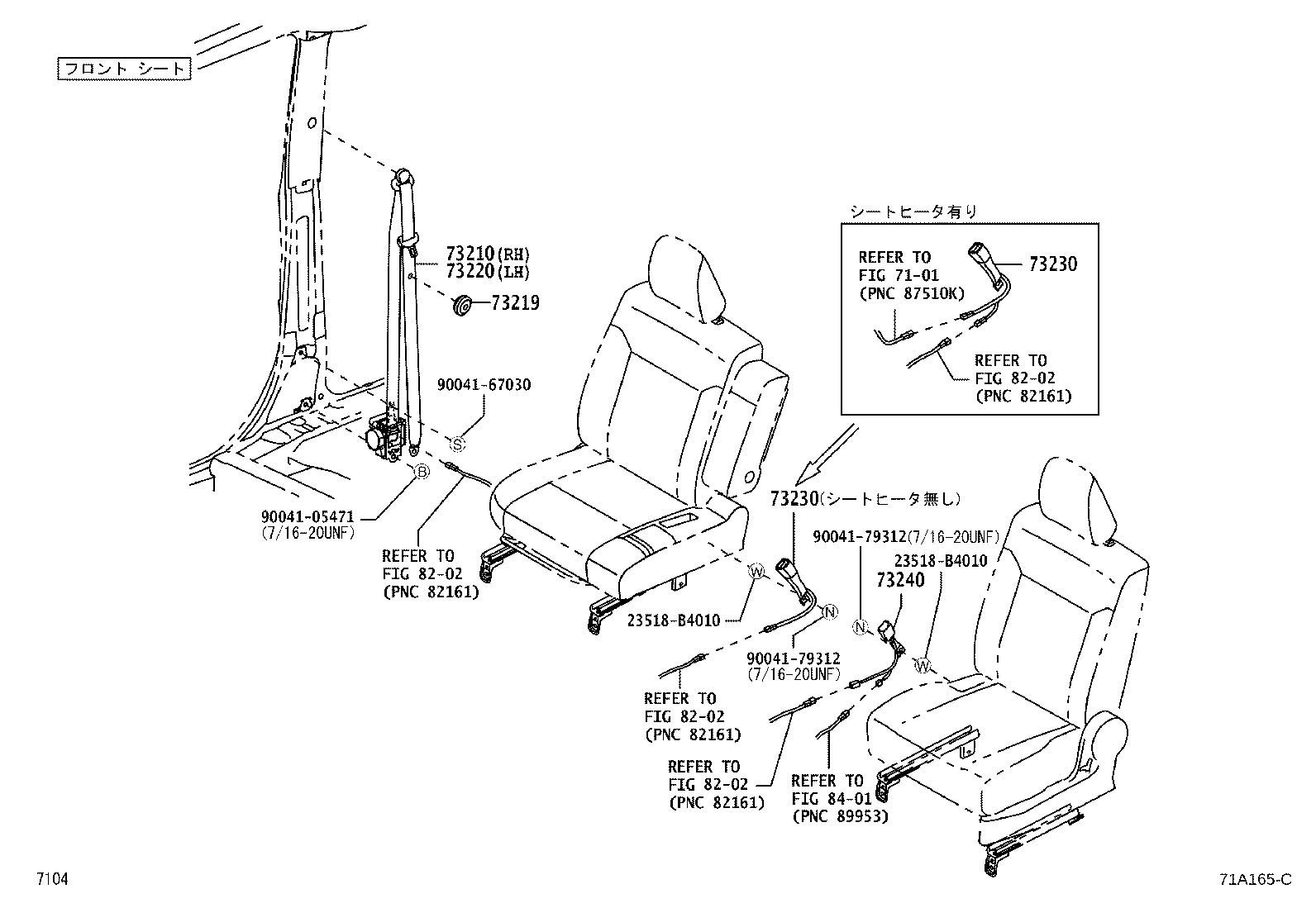

ﾌﾛﾝﾄｼｰﾄ

diagram 23518B4010 23518B4010 7101 73210 73219 73220 73230 73230 73240 8202 8202 8202 8202 8401 9004105471 9004167030 9004179312 9004179312
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-B2E90C0

LA700,710

BLACK,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-B2710C0

LA700,710

BLACK,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-B2520B1

LA700

DK.GRAY,TRIM1#

 1
73230-B2660B0

LA700

寒冷地仕様,DK.GRAY,TRIM1#

 1
73230-B2670B0

LA700..TBO

ﾄﾞﾗｲﾋﾞﾝｸﾞ ｻﾎﾟｰﾄ ﾊﾟｯｸ&寒冷地仕様,DK.GRAY,TRIM1#

 1
73230-B2530B1

LA700..TBO

ﾄﾞﾗｲﾋﾞﾝｸﾞ ｻﾎﾟｰﾄ ﾊﾟｯｸ,DK.GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-B2520B1

LA700

DK.GRAY,TRIM1#

 1
73230-B2660B0

LA700

寒冷地仕様,DK.GRAY,TRIM1#

 1
73230-B2670B0

LA700..TBO

ﾄﾞﾗｲﾋﾞﾝｸﾞ ｻﾎﾟｰﾄ ﾊﾟｯｸ&寒冷地仕様,DK.GRAY,TRIM1#

 1
73230-B2530B1

LA700..TBO

ﾄﾞﾗｲﾋﾞﾝｸﾞ ｻﾎﾟｰﾄ ﾊﾟｯｸ,DK.GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-B2680B0

LA700,710

DK.GRAY,TRIM1#

 1
Common parts
23518-B4010
90041-05471
90041-67030
90041-79312
Linked diagrams
7101
8202
8401
