LA700A-GBVZ (2015)
Toyota Pixis Mega
Production
Jul 2015
-
May 2016
Engine
KFVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

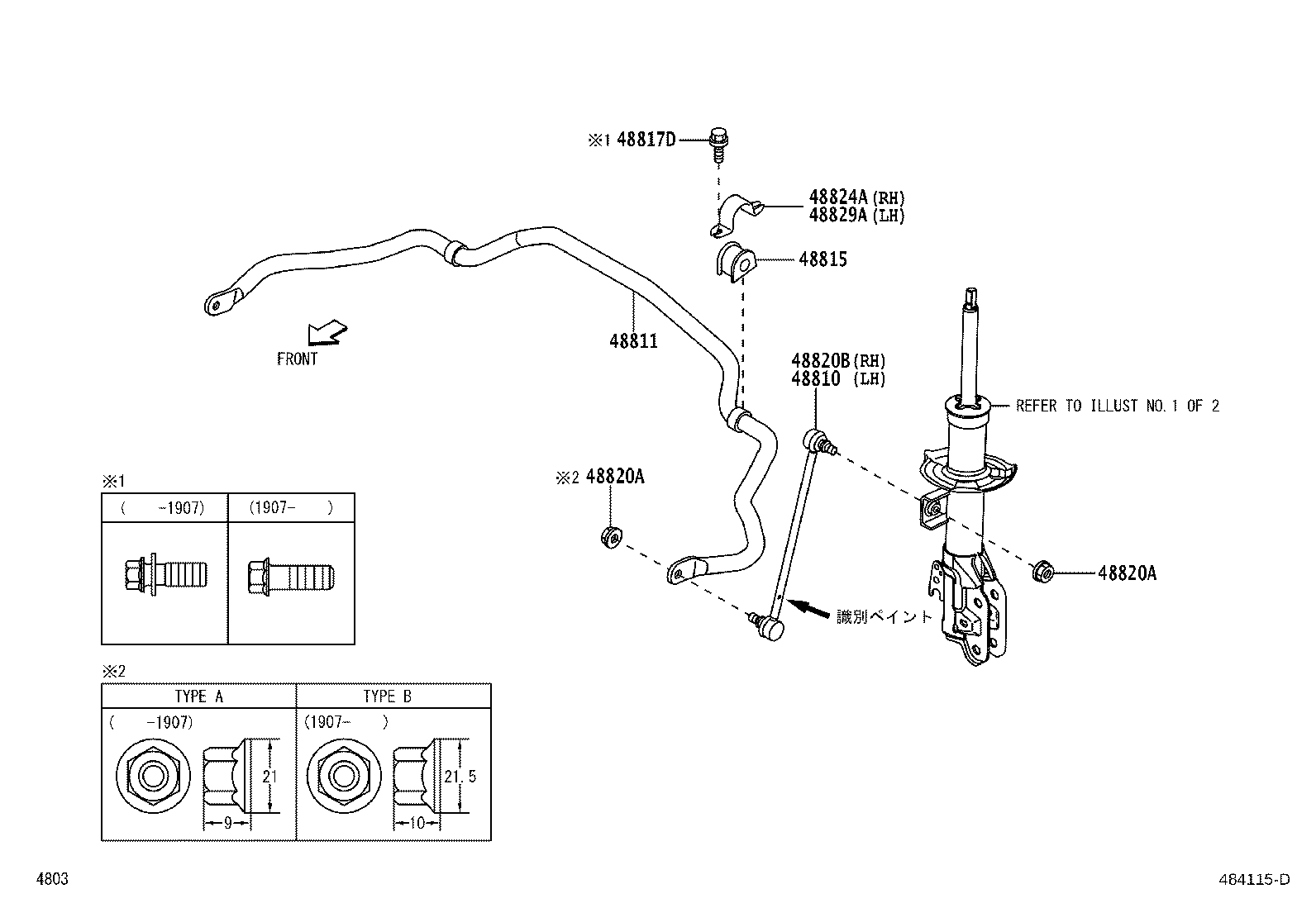

ILLUST NO. 2 OF 2(1507- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-B2011 |
LA700,710 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-B2090 |
LA700 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-B2070 |
LA700,710 |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 91671-80820 |
LA700,710 M8,L=20 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90041-70397 |
LA700,710 M10 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90041-70397 |
LA700,710 M10 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-B2011 |
LA700,710 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-B2020 |
LA700,710 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-B2020 |
LA700,710 |
1 | ||

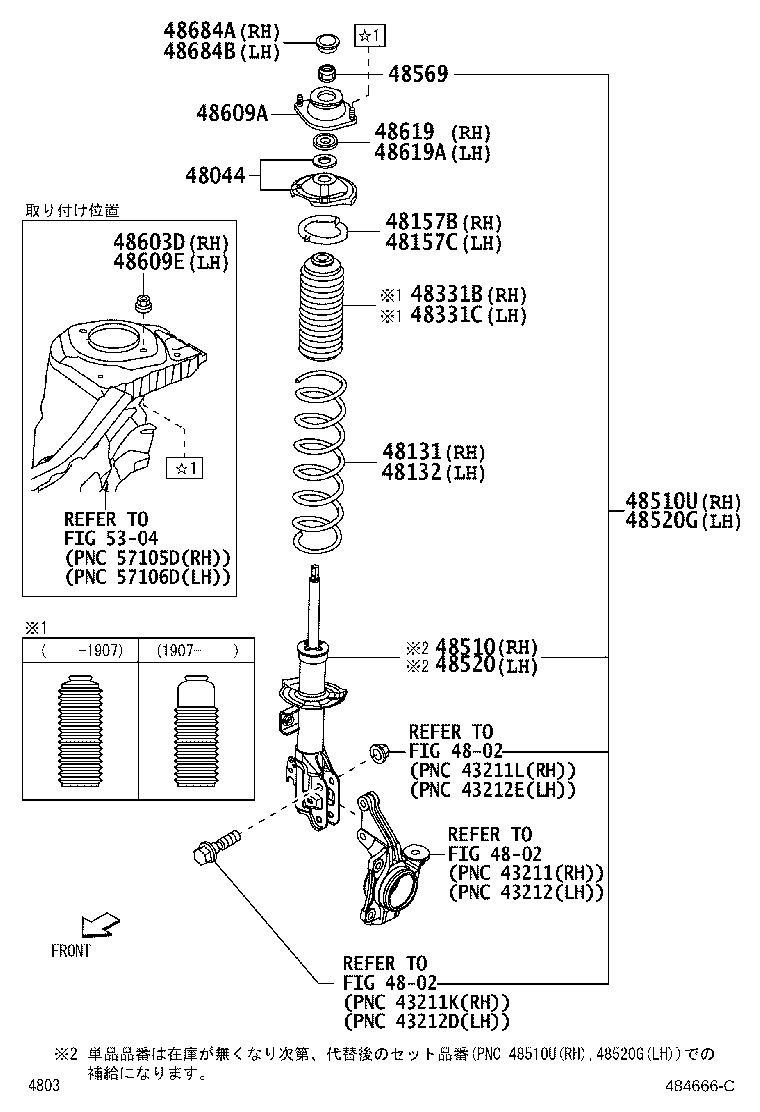

ILLUST NO. 1 OF 2(1507- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48044-B2010 |
LA700,710 |
2 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-B2C50 |
LA700 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-B2C50 |
LA700 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-B2010 |
LA700,710 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-B2010 |
LA700,710 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-B2060 |
LA700,710 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-B2060 |
LA700,710 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-B2D41 |
LA700 ﾏｰｸ 48510―B2D41 |
1 | ||
| 48510U - ABSORBER SET, SHOCK, FRONT RH | ||||
| 48510-B9175 |
LA700 ﾏｰｸ 48510−B2D41 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-B2D41 |
LA700 ﾏｰｸ 48520―B2D41 |
1 | ||
| 48520G - ABSORBER SET, SHOCK, FRONT LH | ||||
| 48520-B9175 |
LA700 MARK 48520−B2D41 |
1 | ||
| 48569 - NUT, SHOCK ABSORBER PISTON | ||||
| 90041-77005 |
LA700,710 M12 |
2 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90041-79347 |
LA700,710 M8 |
2 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-B2060 |
LA700,710 |
2 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90041-79347 |
LA700,710 M8 |
2 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 48619-B2010 |
LA700,710 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-B2010 |
LA700,710 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-B2010 |
LA700,710 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-B2010 |
LA700,710 |
1 | ||
| Linked diagrams | ||||
| 4802 | ||||
| 5304 | ||||
