LA700A-GBVZ (2015)
Toyota Pixis Mega
Production
Jul 2015
-
May 2016
Engine
KFVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

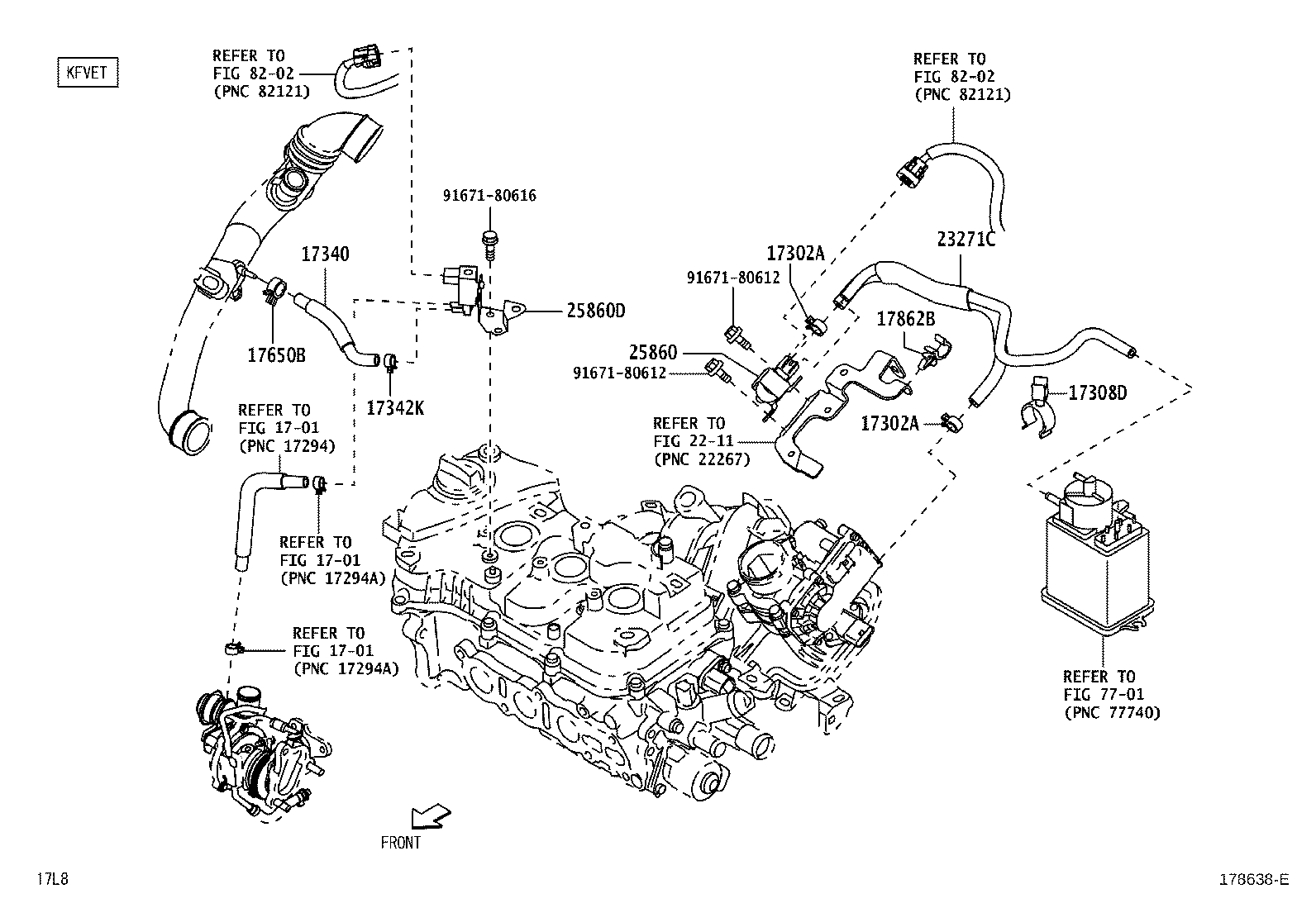

(1507-1605)KFVET
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302A - CLIP, HOSE | ||||
| 96135-41100 |
KFVET..LA700,710 |
2 | ||
| 17302A - CLIP, HOSE | ||||
| 96135-41100 |
KFVET..LA700,710 |
2 | ||
| 17308D - CLAMP, NO.2(FOR VACUUM HOSE) | ||||
| 90044-64831 |
KFV#..LA700,710 |
1 | ||
| 17340 - HOSE ASSY, VACUUM SWITCHING VALVE | ||||
| 17340-B2010 |
KFVET..LA700,710 |
1 | ||
| 17342K - CLIP(FOR VACUUM HOSE) | ||||
| 90044-67271 |
KFVET..LA700,710 |
1 | ||
| 17650B - CLIP(FOR VACUUM SWITCHING VALVE HOSE) | ||||
| 90044-67510 |
KFVET..LA700,710 |
1 | ||
| 17862B - CLAMP, HOSE | ||||
| 90044-64779 |
KFV#..LA700,710 |
1 | ||
| 23271C - HOSE, FUEL | ||||
| 77795-B2100 |
KFV#..LA700,710 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 89470-B1020 |
KFV#..LA700,710 |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 89470-B2010 |
KFVET..LA700,710 |
1 | ||
| Common parts | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2211 | ||||
| 7701 | ||||
| 8202 | ||||

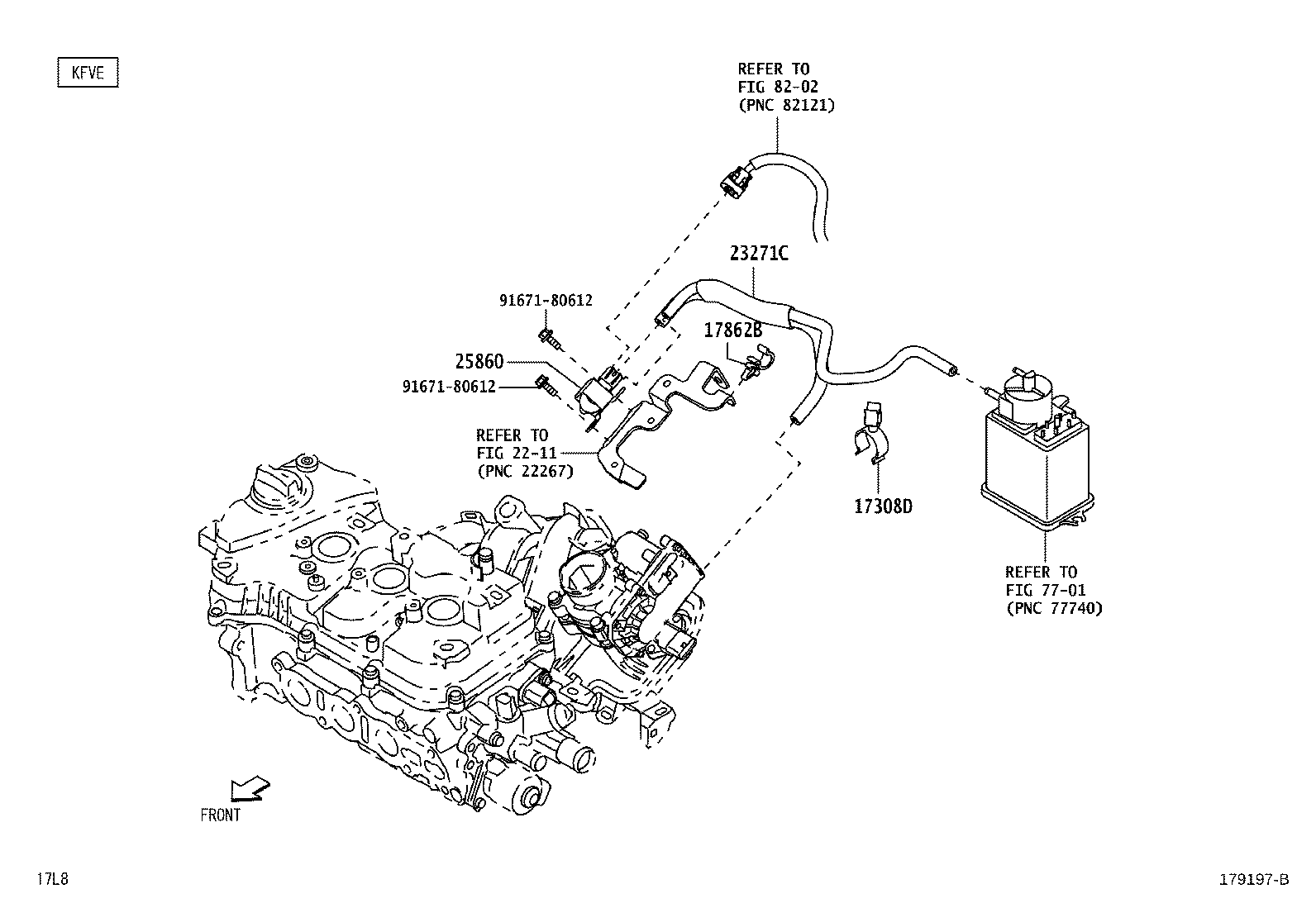

(1507-1605)KFVE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308D - CLAMP, NO.2(FOR VACUUM HOSE) | ||||
| 90044-64831 |
KFV#..LA700,710 |
1 | ||
| 17862B - CLAMP, HOSE | ||||
| 90044-64779 |
KFV#..LA700,710 |
1 | ||
| 23271C - HOSE, FUEL | ||||
| 77795-B2100 |
KFV#..LA700,710 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 89470-B1020 |
KFV#..LA700,710 |
1 | ||
| Common parts | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 7701 | ||||
| 8202 | ||||
