LA700A-GBMF2 (2018)

Toyota Pixis Mega

Production Jan 2018 - Sep 9999
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

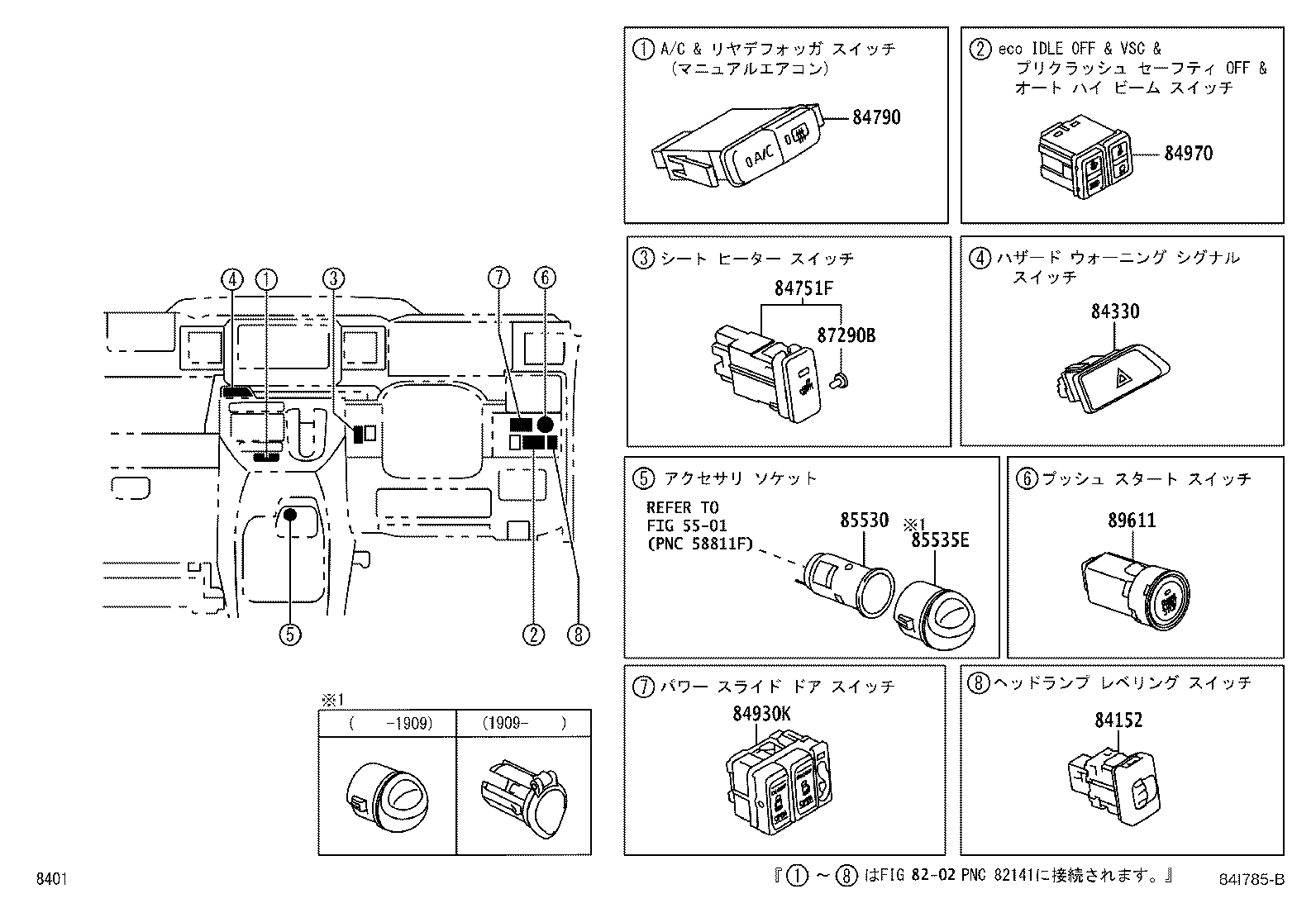

ILLUST NO. 4 OF 6(1801- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ NO.2

diagram 5501 8202 84152 84330 84751F 84790 84930K 84970 85530 85535E 87290B 89611
Part # Description Qty Price
84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL
84930-B1030

LA700,710..G,L

 1
84970 - SWITCH ASSY, COMBINATION
84970-B2010

LA700..D

 1
84970-B2030

LA700,710..G,L

 1
84970-B2030

LA700..D

有り(ｽﾃﾚｵｶﾒﾗ+AHB)

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-B1030

LA700,710

 1
89611 - SWITCH, PUSH START
89611-B2070

LA700,710..G,L

 1
