LA700A-GBMF (2016)

Toyota Pixis Mega

Production May 2016 - Jan 2018
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1605- )

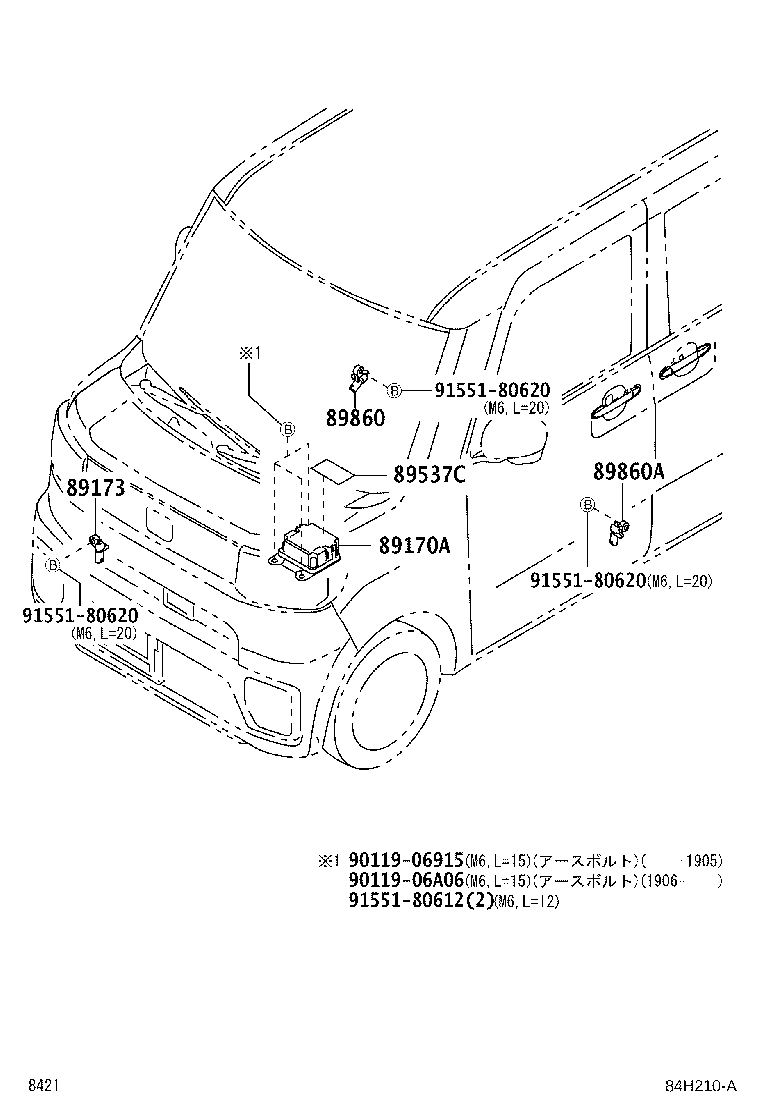

Click highlighted areas on diagram

diagram 89170A 89173 89537C 89860 89860A 9011906915 9011906A06 9155180612 9155180620 9155180620 9155180620
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-B2D30

LA700,710

 1
89173 - SENSOR, AIR BAG, FRONT
89173-B2160

LA700,710

 1
89537C - COVER, COMPUTER
19114-B2050

LA700,710

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-B2180

LA700,710

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89860-B2180

LA700,710

 1
Common parts
90119-06915
90119-06A06
91551-80612
91551-80620
