LA700A-GBMF (2016)
Toyota Pixis Mega

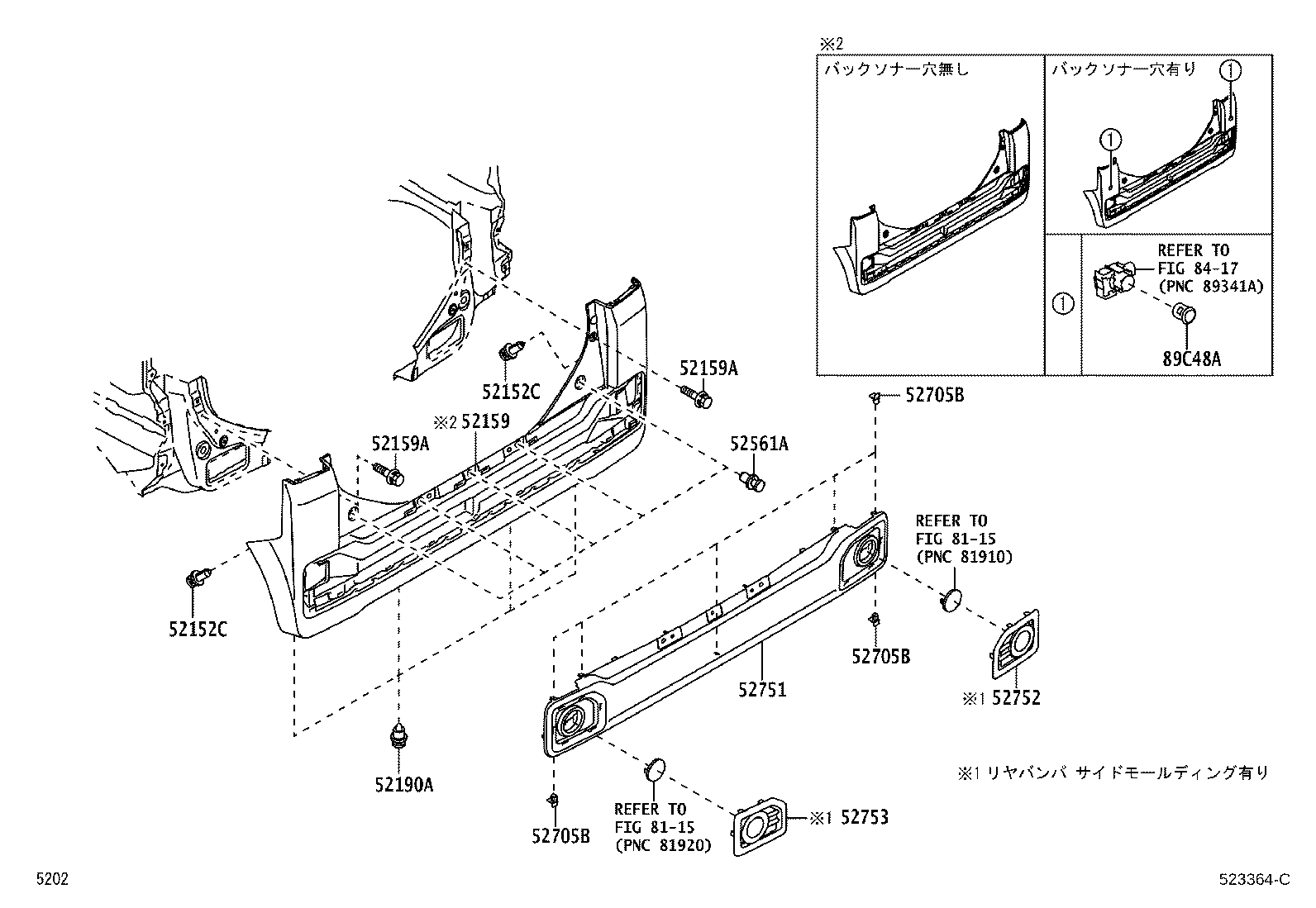

ILLUST NO. 1 OF 2(1605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90044-67555 |
LA700,710 |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90044-67555 |
LA700,710 |
2 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-B2770G0 |
LA700..D KHAKI ME.,G55 ,X87,ﾊﾞｯｸｿﾅｰ取付穴 無し |
1 | ||
| 52159-B2B00D1 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,ORANGE ME.,R71 ,X85,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00D1 |
LA700,710..G,L ORANGE ME.,R71 ,X85,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00A0 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,WHITE PEARL MC.CS,W24,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00G1 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,GREEN,G57 ,XA3,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00D0 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,BROWN MC.CS,R59,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00G0 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,KHAKI ME.,G55 ,X87,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00G0 |
LA700,710..G,L KHAKI ME.,G55 ,X87,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00B0 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,GRAY ME.,S38,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00J1 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,PALE BLUE M.M.,B69 ,X81,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00C0 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,BLACK M.M.,X07,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00J0 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,BLUE M.M.,B58 ,XE1,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2770D0 |
LA700..D BROWN MC.CS,R59,ﾊﾞｯｸｿﾅｰ取付穴 無し |
1 | ||
| 52159-B2770C0 |
LA700..D BLACK M.M.,X07,ﾊﾞｯｸｿﾅｰ取付穴 無し |
1 | ||
| 52159-B2770B0 |
LA700..D GRAY ME.,S38,ﾊﾞｯｸｿﾅｰ取付穴 無し |
1 | ||
| 52159-B2B00B0 |
LA700,710..G,L GRAY ME.,S38,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2B00D0 |
LA700,710..G,L BROWN MC.CS,R59,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159-B2770D1 |
LA700..D ORANGE ME.,R71 ,X85,ﾊﾞｯｸｿﾅｰ取付穴 無し |
1 | ||
| 52159-B2B00C0 |
LA700,710..G,L BLACK M.M.,X07,ﾊﾞｯｸｿﾅｰ取付穴 有り |
1 | ||
| 52159A - BOLT(FOR REAR BUMPER COVER) | ||||
| 90041-19693 |
LA700,710 M6,L=18 |
2 | ||
| 52159A - BOLT(FOR REAR BUMPER COVER) | ||||
| 90041-19693 |
LA700,710 M6,L=18 |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90044-68381 |
LA700,710 |
5 | ||
| 52705B - RETAINER, REAR BUMPER MOULDING | ||||
| 76854-87401 |
LA700,710 |
7 | ||
| 52705B - RETAINER, REAR BUMPER MOULDING | ||||
| 76854-87401 |
LA700,710 |
7 | ||
| 52705B - RETAINER, REAR BUMPER MOULDING | ||||
| 76854-87401 |
LA700,710 |
7 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-B2060D0 |
LA700,710 BROWN MC.CS,R59 |
1 | ||
| 52751-B2060B0 |
LA700,710 GRAY ME.,S38 |
1 | ||
| 52751-B2060A0 |
LA700,710 WHITE PEARL MC.CS,W24 ,X81 ,X85 ,X87 ,XA3 ,XE1 |
1 | ||
| 52751-B2060C0 |
LA700,710 BLACK M.M.,X07 |
1 | ||
| 52751-B2060D1 |
LA700,710 ORANGE ME.,R71 |
1 | ||
| 52751-B2060G0 |
LA700,710 KHAKI ME.,G55 |
1 | ||
| 52752 - MOULDING, REAR BUMPER SIDE, RH | ||||
| 52752-B2070 |
LA700,710 ｸﾛﾑ ﾒｯｷ |
1 | ||
| 52753 - MOULDING, REAR BUMPER SIDE, LH | ||||
| 52753-B2070 |
LA700,710 ｸﾛﾑ ﾒｯｷ |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-B2020C0 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,BLACK M.M.,X07 |
2 | ||
| 89348-B2020B3 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,GRAY ME.,S38 |
2 | ||
| 89348-B2020D0 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,BROWN MC.CS,R59 |
2 | ||
| 89348-B2020G3 |
LA700,710..G,L KHAKI ME.,G55 ,X87 |
2 | ||
| 89348-B2020G3 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,KHAKI ME.,G55 ,X87 |
2 | ||
| 89348-B2020A1 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,WHITE PEARL MC.CS,W24 |
2 | ||
| 89348-B2020G1 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,GREEN,G57 ,XA3 |
2 | ||
| 89348-B2020J5 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,PALE BLUE M.M.,B69 ,X81 |
2 | ||
| 89348-B2020J4 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,BLUE M.M.,B58 ,XE1 |
2 | ||
| 89348-B2020D2 |
LA700,710..G,L ORANGE ME.,R71 ,X85 |
2 | ||
| 89348-B2020D2 |
LA700..D ｽﾏｰﾄｱｼｽﾄ,ORANGE ME.,R71 ,X85 |
2 | ||
| 89348-B2020B3 |
LA700,710..G,L GRAY ME.,S38 |
2 | ||
| 89348-B2020D0 |
LA700,710..G,L BROWN MC.CS,R59 |
2 | ||
| 89348-B2020C0 |
LA700,710..G,L BLACK M.M.,X07 |
2 | ||
| Linked diagrams | ||||
| 8115 | ||||
| 8417 | ||||
