LA700A-GBMF (2015)
Toyota Pixis Mega
Production
Jul 2015
-
May 2016
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1507- )

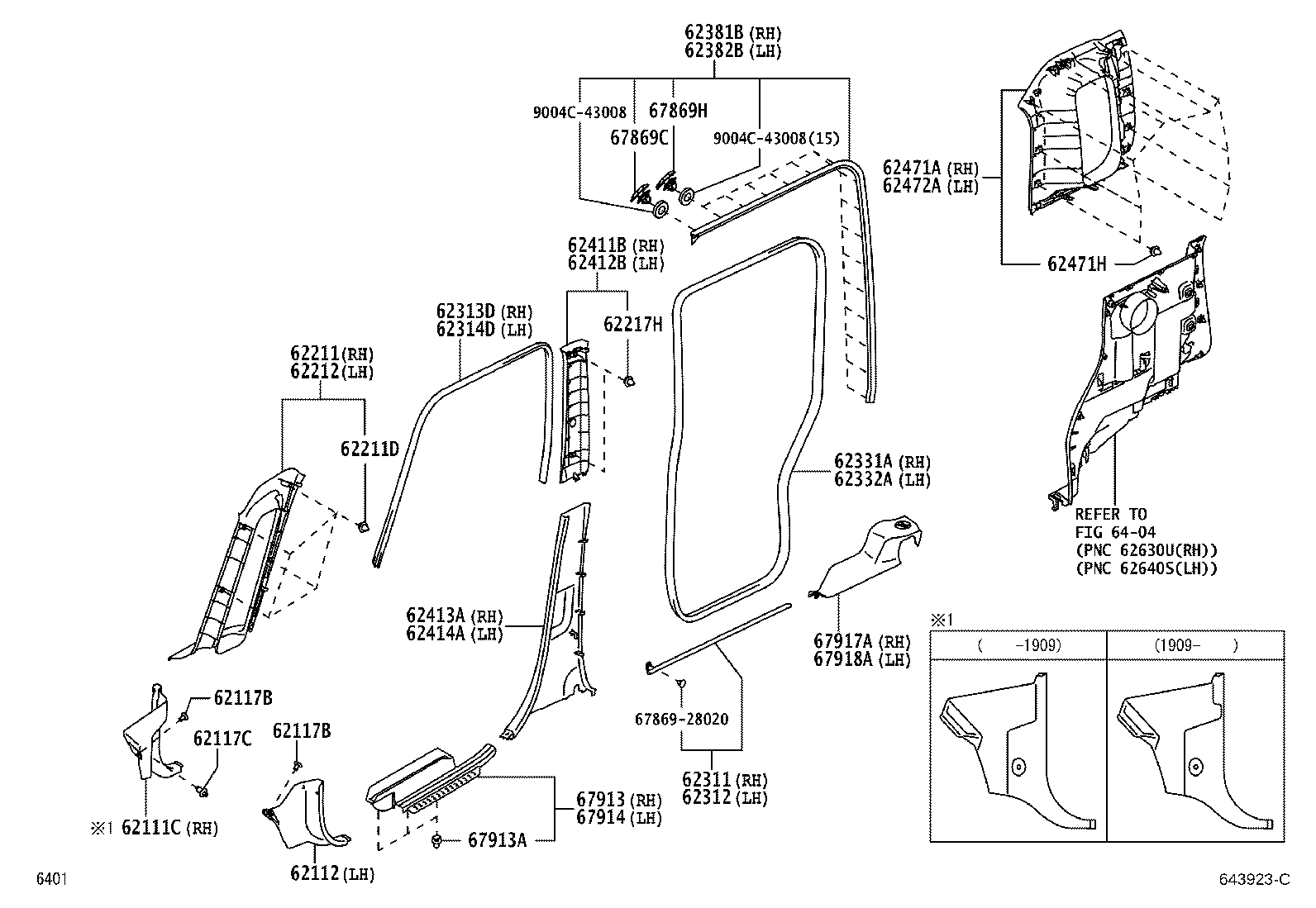

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-B2260B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-B2240B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90044-67397 |
LA700,710 |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90044-67397 |
LA700,710 |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90044-67579B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-B2500B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 67771-B2010 |
LA700,710 |
8 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-B2500B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 67771-B2010 |
LA700,710 |
4 | ||
| 62311 - WEATHERSTRIP, DOOR OPENING TRIM, LOWER RH | ||||
| 67873-B2010 |
LA700,710 |
1 | ||
| 62312 - WEATHERSTRIP, DOOR OPENING TRIM, LOWER LH | ||||
| 67874-B2030 |
LA700,710 |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-B2320C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-B2320C0 |
LA700,710 BLACK,TRIM1# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-B2100 |
LA700,710 |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-B2020 |
LA700,710 |
1 | ||
| 62381B - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-B2030 |
LA700,710 |
1 | ||
| 62382B - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-B2050 |
LA700,710 |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-B2490B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-B2460B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-B2200B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-B2180B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-B2300B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62471H - PLUG, HOLE(FOR ROOF SIDE INNER GARNISH) | ||||
| 67771-B2010 |
LA700,710 |
18 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-B2300B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 67869C - CLIP, ROOF SIDE RAIL WEATHERSTRIP | ||||
| 67869-B2030 |
LA700,710 |
1 | ||
| 67869H - CLIP, ROOF SIDE RAIL WEATHERSTRIP | ||||
| 67868-97206 |
LA700,710 |
15 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-B2160B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 67771-B2070 |
LA700,710 |
6 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-B2180B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-B2130B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-B2140B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67869-28020 | ||||
| 9004C-43008 | ||||
| Linked diagrams | ||||
| 6404 | ||||
