Toyota Pixis mega LA700A WIRING & CLAMP

LA700A-GBGZ (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016

Engine KFVET

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

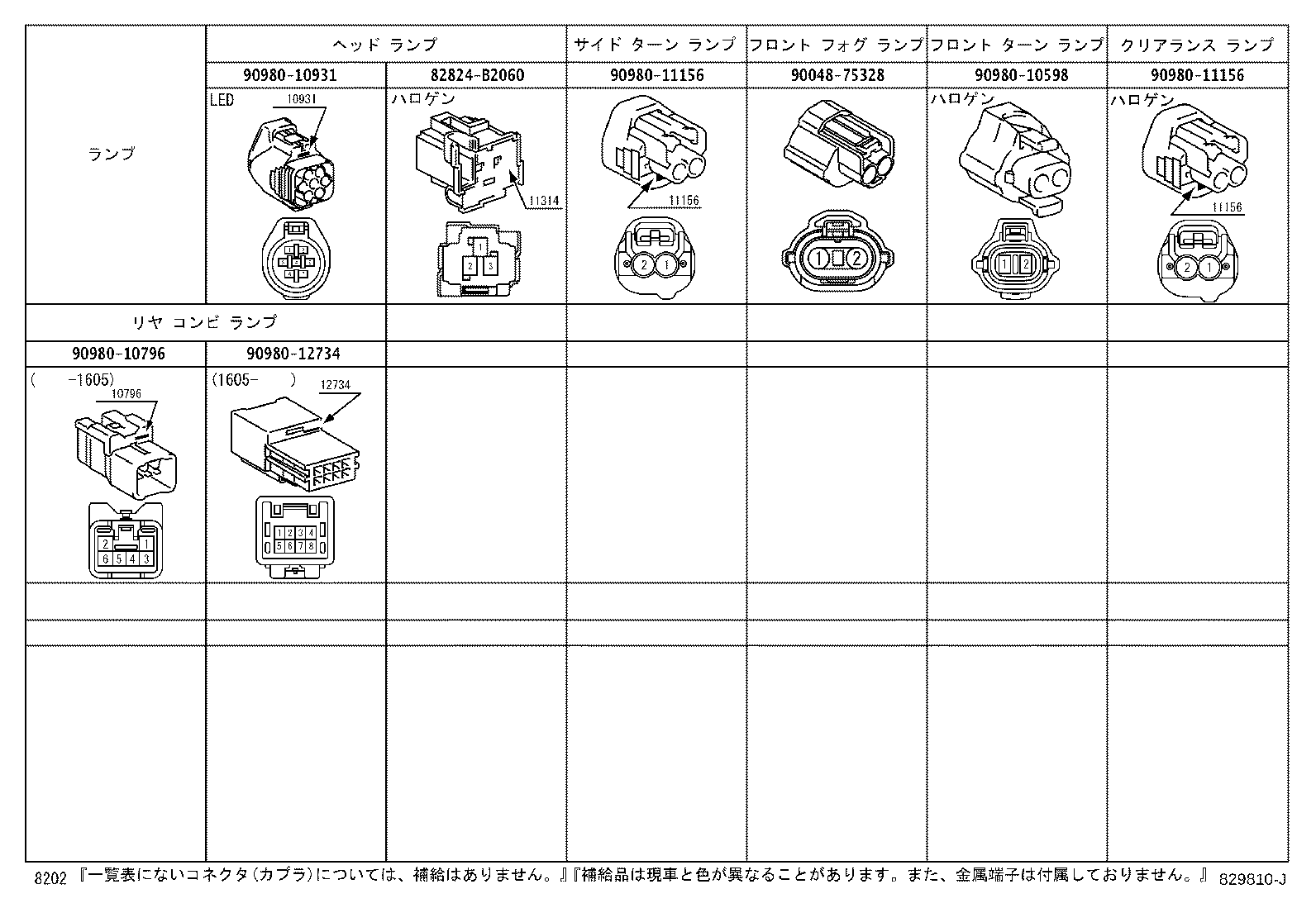

ILLUST NO. 9 OF10(1507- )

Click highlighted areas on diagram

ｺﾈｸﾀ NO.1

Part #	Description	Period	Qty	Price
Common parts
82824-B2060
90048-75328
90980-10598
90980-10796
90980-10931
90980-11156
90980-12734

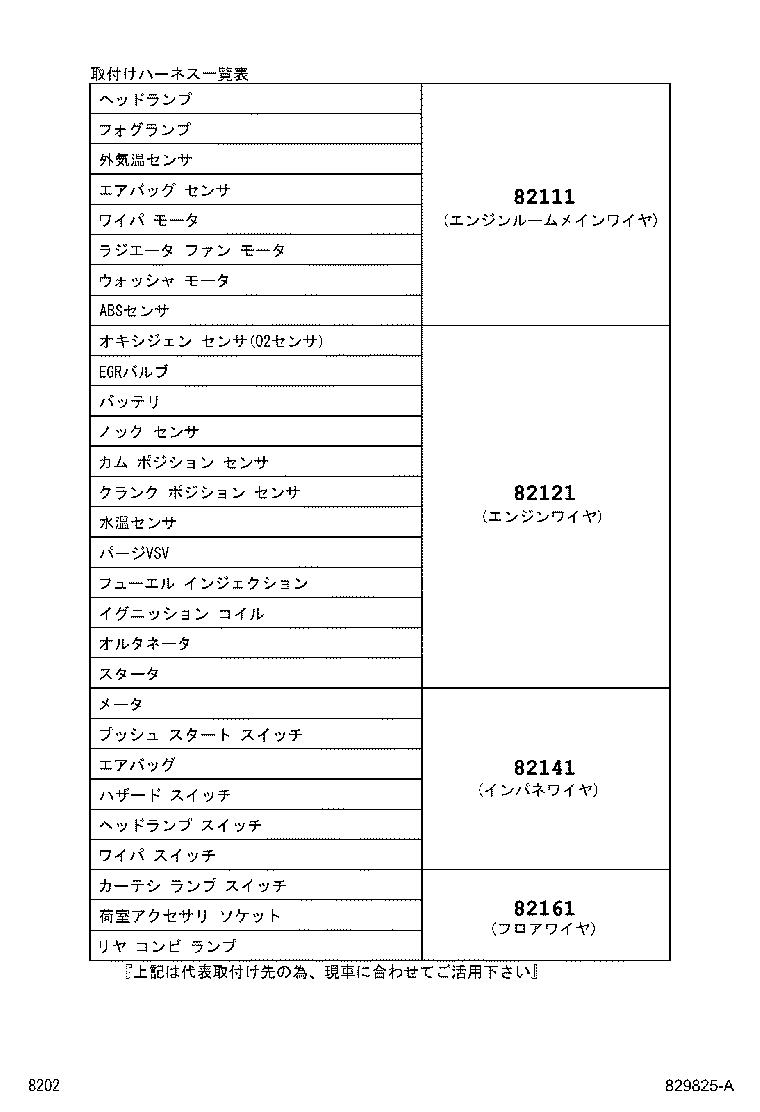

ILLUST NO. 1 OF10(1507- )

Click highlighted areas on diagram

ﾄﾘﾂｹﾊｰﾈｽｲﾁﾗﾝ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82116-B2E20	LA700,710	07/2015 - 05/2016	1
82116-B2D70	LA700,710 ｽﾏｰﾄｱｼｽﾄ	07/2015 - 05/2016	1
82121 - WIRE, ENGINE
82121-B2J91	LA700,710..TBO 品番ﾗﾍﾞﾙ有り	07/2015 - 05/2016	1
82141 - WIRE, INSTRUMENT PANEL
82141-BAJ00	LA700..D ｽﾏｰﾄｱｼｽﾄ	07/2015 - 05/2016	1
82141-BAK20	LA700,710..G	07/2015 - 05/2016	1
82141-BAJ30	LA700,710..G ｽﾏｰﾄｱｼｽﾄ	07/2015 - 05/2016	1
82141-BAJ90	LA700..D	07/2015 - 05/2016	1
82141-BAK20	LA700,710..L,X ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ有り	07/2015 - 05/2016	1
82141-BAJ20	LA700,710..L,X ｽﾏｰﾄｱｼｽﾄ	07/2015 - 05/2016	1
82141-BAJ30	LA700,710..L,X ｽﾏｰﾄｱｼｽﾄ&ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ有り	07/2015 - 05/2016	1
82141-BAK10	LA700,710..L,X	07/2015 - 05/2016	1
82161 - WIRE, FLOOR
82161-BA490	LA700..G	07/2015 - 05/2016	1
82161-BA480	LA700..L,X	07/2015 - 05/2016	1
82161-B2Z90	LA700..D	07/2015 - 05/2016	1
82161-BA490	LA700..L,X ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ有り	07/2015 - 05/2016	1

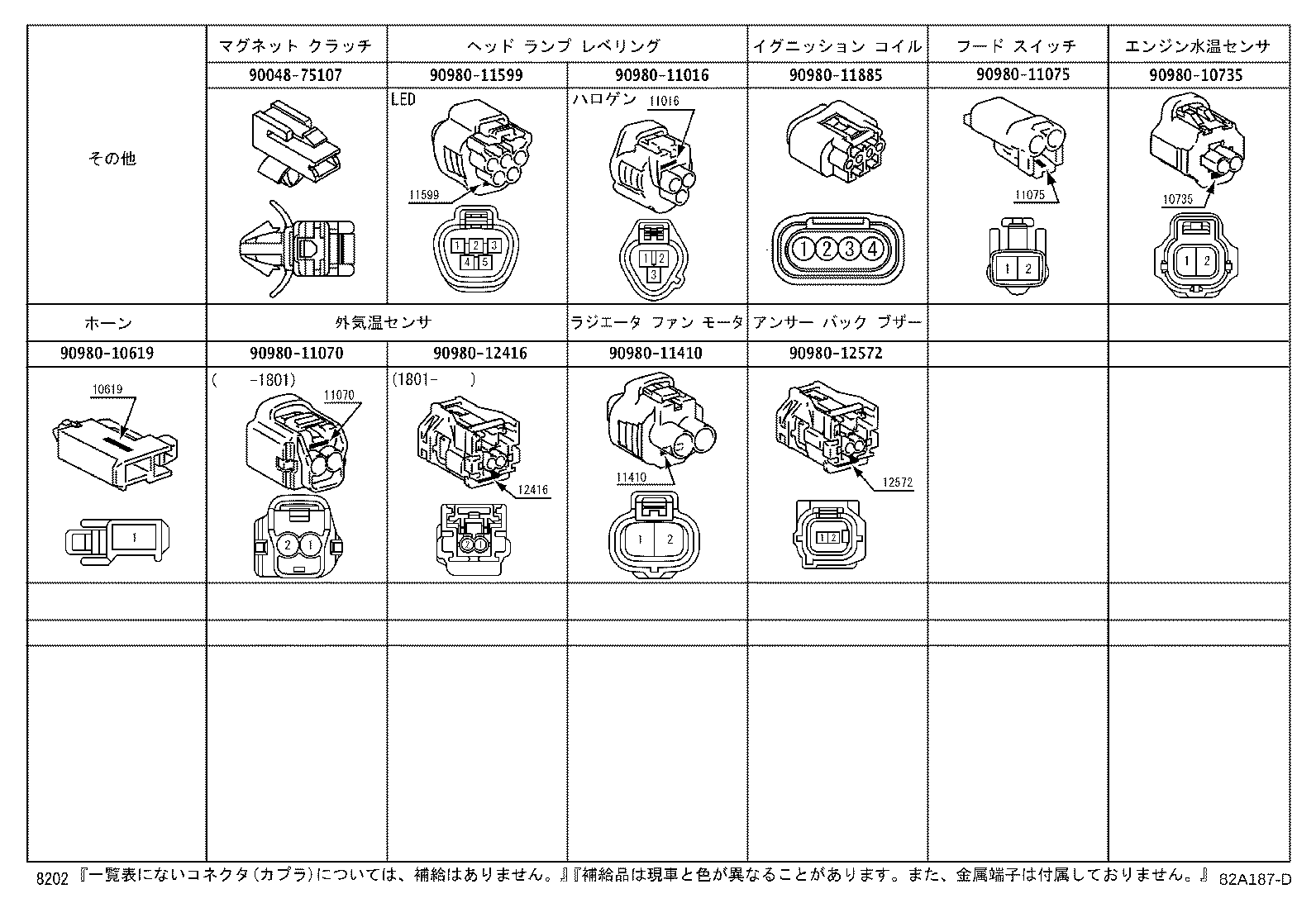

ILLUST NO.10 OF10(1507- )

Click highlighted areas on diagram

ｺﾈｸﾀ NO.2

Part #	Description	Period	Qty	Price
Common parts
90048-75107
90980-10619
90980-10735
90980-11016
90980-11070
90980-11075
90980-11410
90980-11599
90980-11885
90980-12416
90980-12572

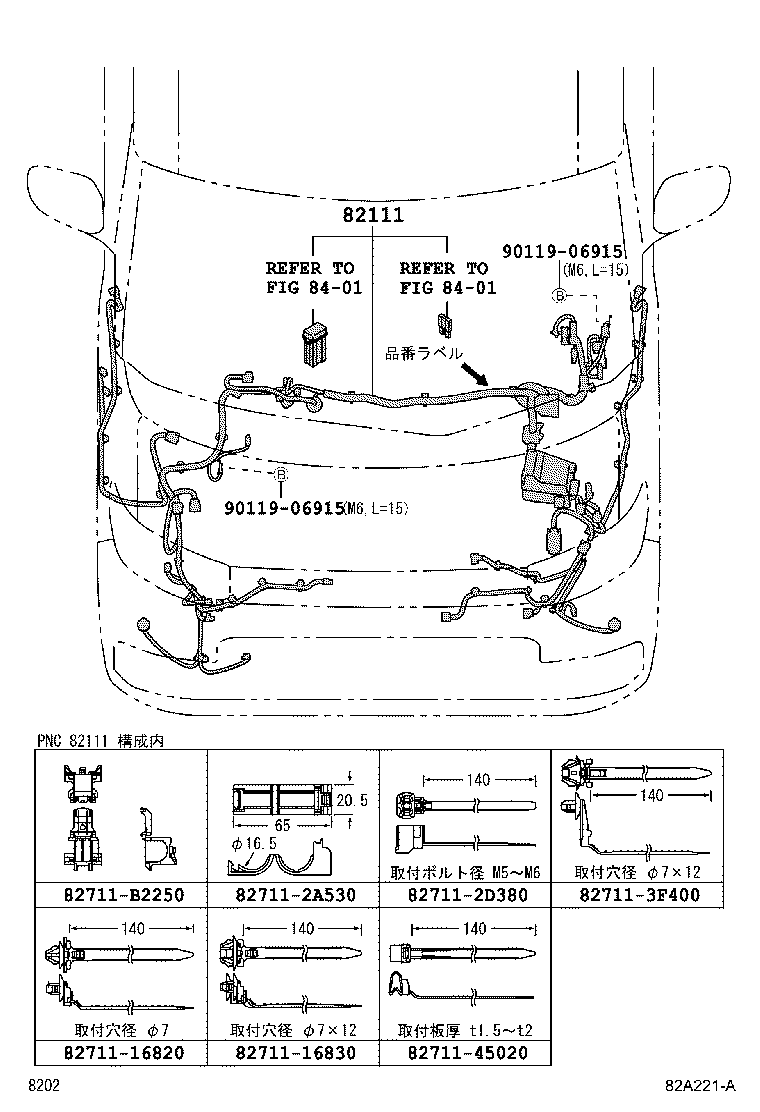

ILLUST NO. 2 OF10(1507-1605)

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82116-B2E20	LA700,710	07/2015 - 05/2016	1
82116-B2D70	LA700,710 ｽﾏｰﾄｱｼｽﾄ	07/2015 - 05/2016	1
Common parts
82711-16820
82711-16830
82711-2A530
82711-2D380
82711-3F400
82711-45020
82711-B2250
90119-06915
Linked diagrams
8401

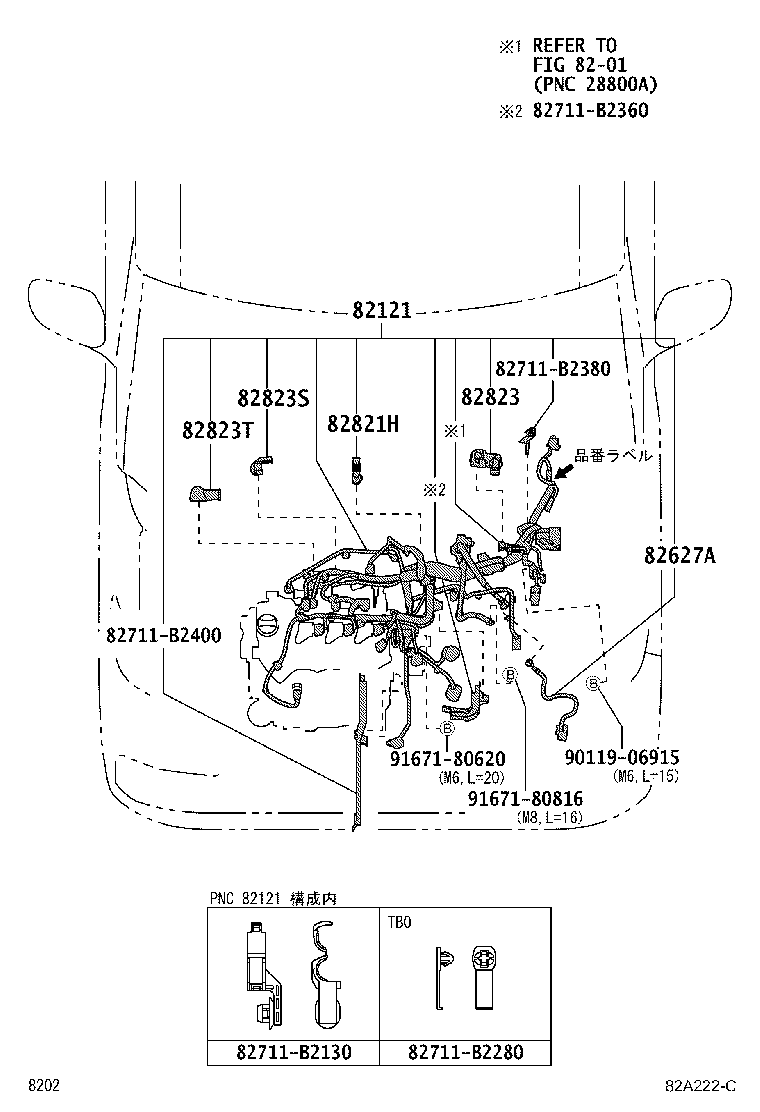

ILLUST NO. 3 OF10(1507-1605)

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-B2J91	LA700,710..TBO 品番ﾗﾍﾞﾙ有り	07/2015 - 05/2016	1
82627A - WIRE, FUSIBLE LINK
82627-B2030	LA700,710	07/2015 - 05/2016	1
82823 - CAP, TERMINAL, NO.1
82823-B2020	LA700,710	07/2015 - 05/2016	1
82823S - CAP, STARTER TERMINAL
82823-B2030	LA700,710	07/2015 - 05/2016	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22060	LA700,710	07/2015 - 05/2016	1
Common parts
82711-B2130
82711-B2280
82711-B2360
82711-B2380
82711-B2400
90119-06915
91671-80620
91671-80816
Linked diagrams
8201

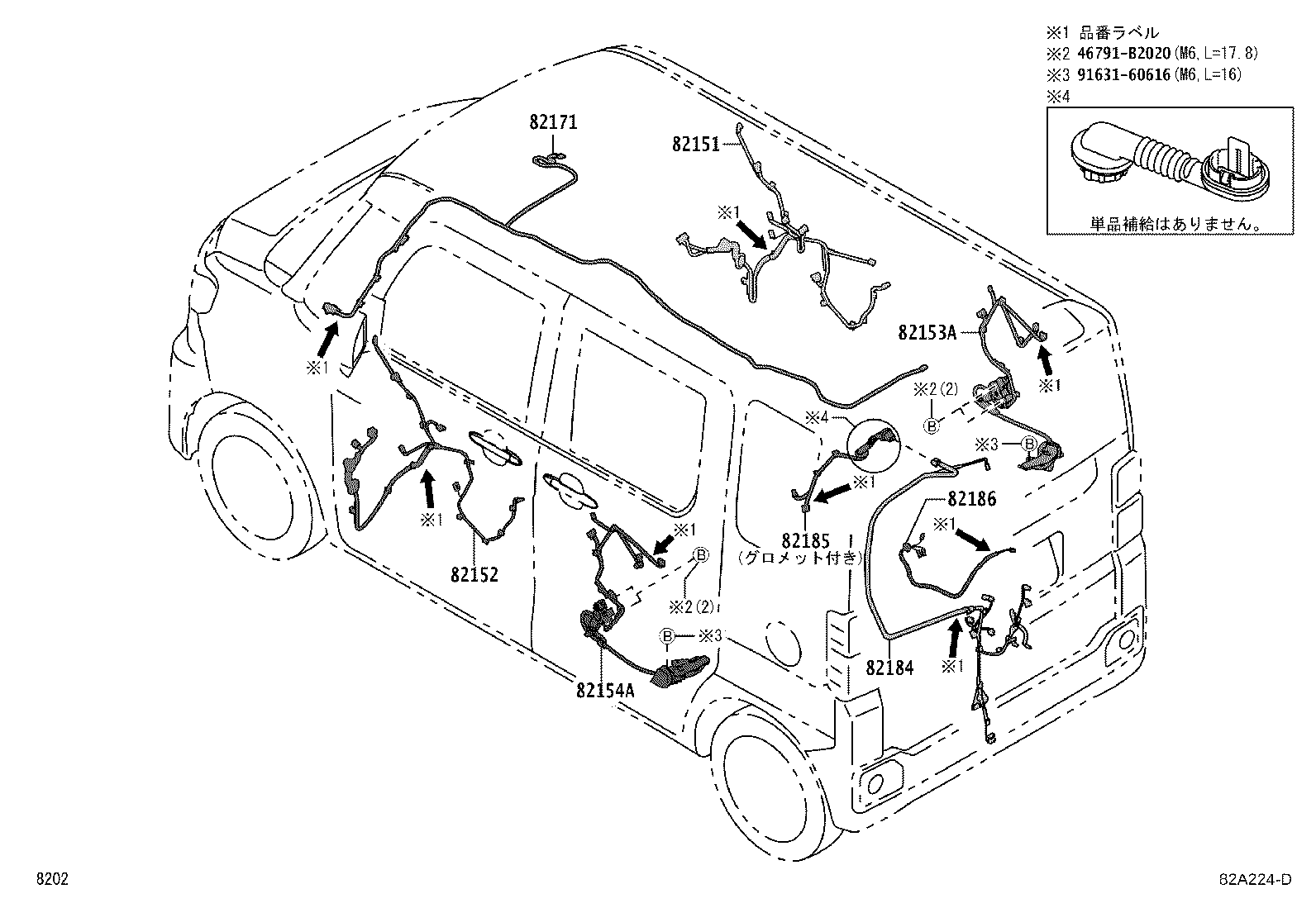

ILLUST NO. 5 OF10(1507- )

Click highlighted areas on diagram

ﾄﾞｱ&ﾙｰﾌ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-B2P20	LA700,710..G,L,X	07/2015 - 05/2016	1
82151-B2P10	LA700..D	07/2015 - 05/2016	1
82152 - WIRE, FRONT DOOR, LH
82152-B2Q10	LA700..D	07/2015 - 05/2016	1
82152-B2Q20	LA700,710..G,L,X	07/2015 - 05/2016	1
82153A - WIRE, REAR DOOR, RH
82053-B2071	LA700,710..G	07/2015 - 05/2016	1
82053-B2051	LA700..D	07/2015 - 05/2016	1
82053-B2071	LA700,710..L,X ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ有り	07/2015 - 05/2016	1
82053-B2061	LA700,710..L,X	07/2015 - 05/2016	1
82154A - WIRE, REAR DOOR, LH
82054-B2121	LA700..D	07/2015 - 05/2016	1
82054-B2131	LA700,710..G,L,X	07/2015 - 05/2016	1
82171 - WIRE, ROOF, NO.1
82171-B2D70	LA700,710	07/2015 - 05/2016	1
82171-B2D80	LA700,710 ｼﾞｭﾝｾｲﾅﾋﾞｿｳﾁｬｸﾖｳｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	07/2015 - 05/2016	1
82184 - WIRE, BACK DOOR, NO.1
82184-B2D60	LA700,710	07/2015 - 05/2016	1
82185 - WIRE, BACK DOOR, NO.2
82185-B2170	LA700,710	07/2015 - 05/2016	1
82185-B2160	LA700,710 ｼﾞｭﾝｾｲﾅﾋﾞｿｳﾁｬｸﾖｳｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	07/2015 - 05/2016	1
82186 - WIRE, REAR WINDOW, NO.1
82186-B2100	LA700,710	07/2015 - 05/2016	1
Common parts
46791-B2020
91631-60616

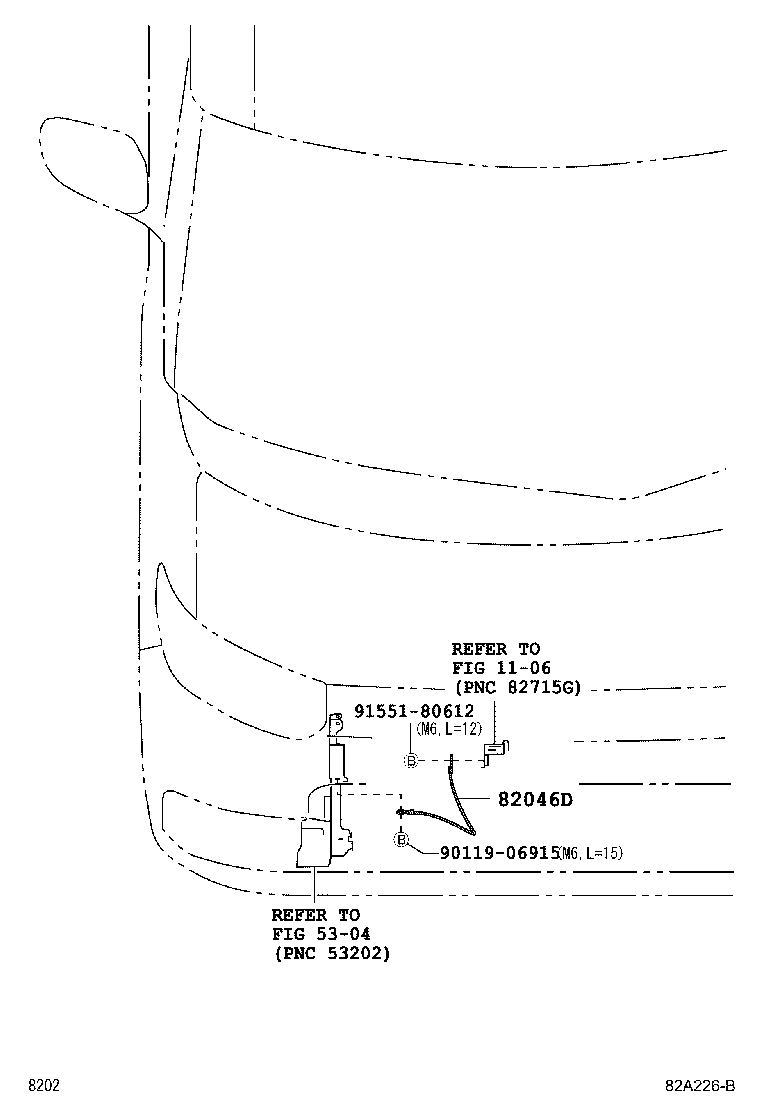

ILLUST NO. 7 OF10(1507- )

Click highlighted areas on diagram

ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ

Part #	Description	Period	Qty
82046D - WIRE, BODY GROUND
82046-B2070	LA700,710	07/2015 - 05/2016	1
Common parts
90119-06915
91551-80612
Linked diagrams
1106
5304

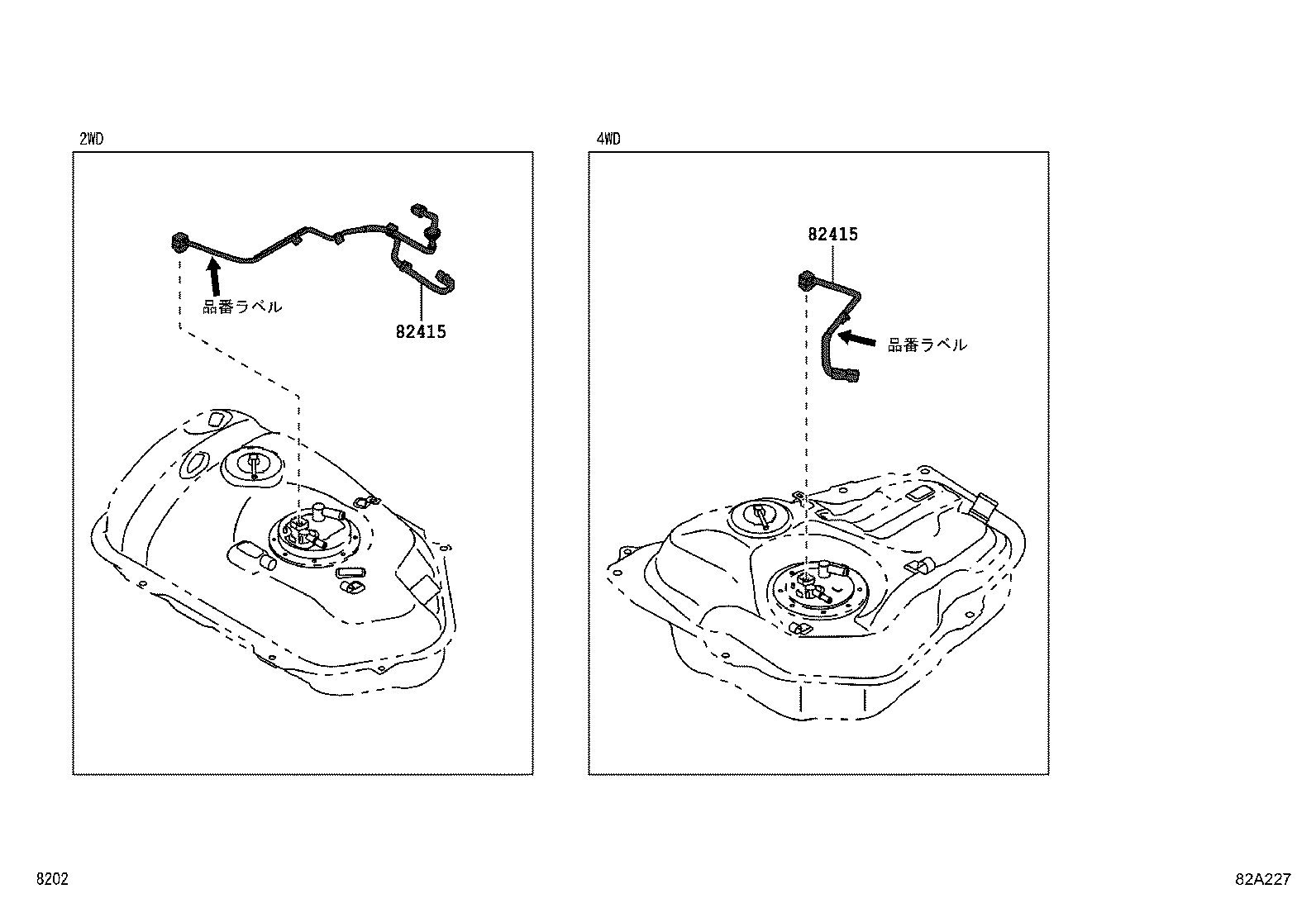

ILLUST NO. 8 OF10(1507- )

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

Part #	Description	Period	Qty
82415 - WIRE, FUEL PUMP
82415-B2520	LA700	07/2015 - 05/2016	1
82415 - WIRE, FUEL PUMP
82415-B2520	LA700	07/2015 - 05/2016	1

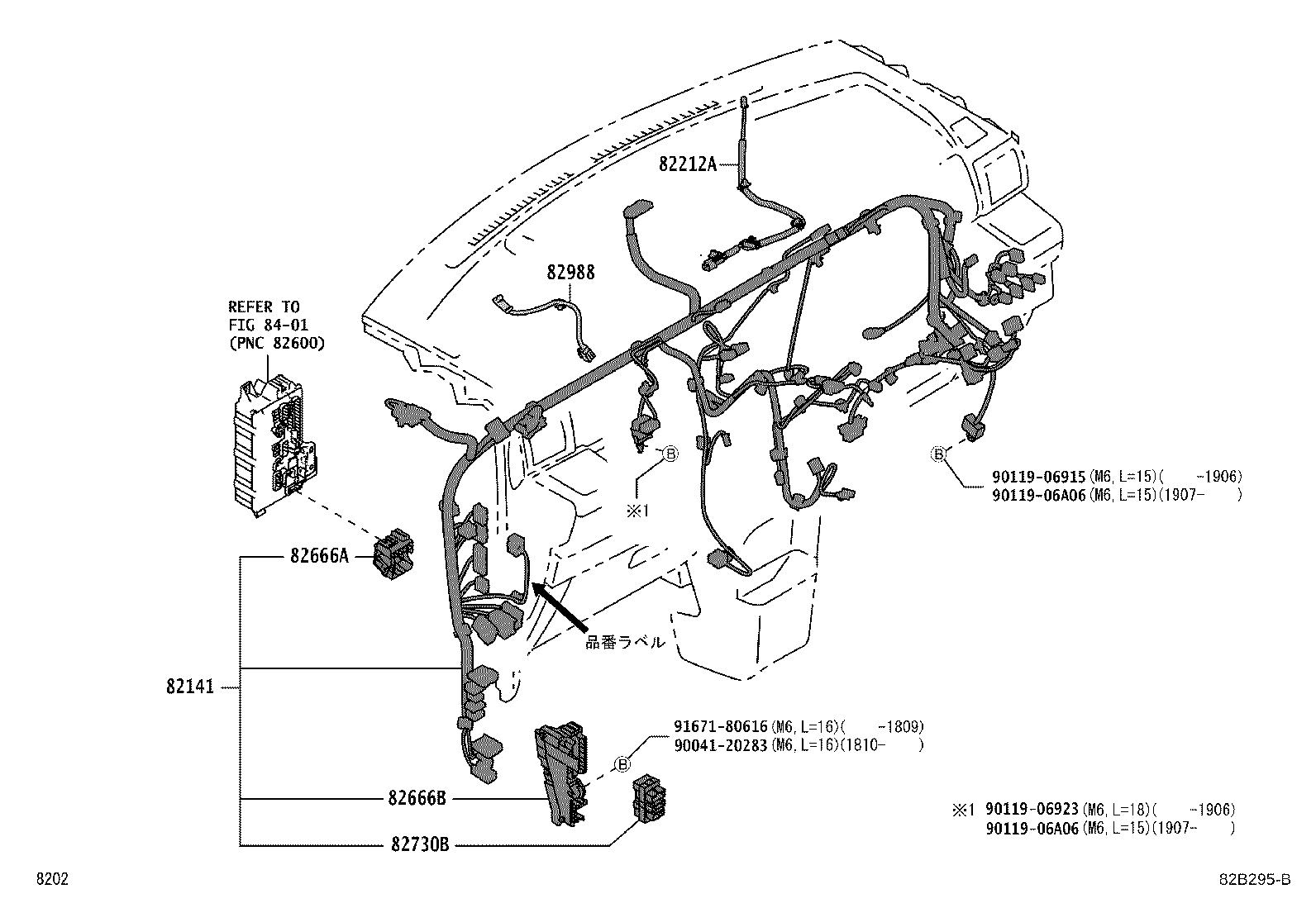

ILLUST NO. 4 OF10(1507- )

Click highlighted areas on diagram

ｲﾝﾊﾟﾈ

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-BAJ00	LA700..D ｽﾏｰﾄｱｼｽﾄ	07/2015 - 05/2016	1
82141-BAK20	LA700,710..G	07/2015 - 05/2016	1
82141-BAJ30	LA700,710..G ｽﾏｰﾄｱｼｽﾄ	07/2015 - 05/2016	1
82141-BAJ90	LA700..D	07/2015 - 05/2016	1
82141-BAK20	LA700,710..L,X ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ有り	07/2015 - 05/2016	1
82141-BAJ20	LA700,710..L,X ｽﾏｰﾄｱｼｽﾄ	07/2015 - 05/2016	1
82141-BAJ30	LA700,710..L,X ｽﾏｰﾄｱｼｽﾄ&ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ有り	07/2015 - 05/2016	1
82141-BAK10	LA700,710..L,X	07/2015 - 05/2016	1
82212A - HARNESS, AIR CONDITIONER
88605-B2250	LA700,710..G,L,X	07/2015 - 05/2016	1
82666A - HOLDER, CONNECTOR NO.2
82666-B2180	LA700,710	07/2015 - 05/2016	1
82666B - HOLDER, CONNECTOR NO.3
82666-B2190	LA700,710	07/2015 - 05/2016	1
82730B - BLOCK ASSY, PASSENGER SIDE JUNCTION
82730-B2170	LA700,710	07/2015 - 05/2016	1
82988 - WIRE, AIR BAG REPAIR
89171-B2070	LA700,710	07/2015 - 05/2016	1
Common parts
90041-20283
90119-06915
90119-06923
90119-06A06
91671-80616
Linked diagrams
8401

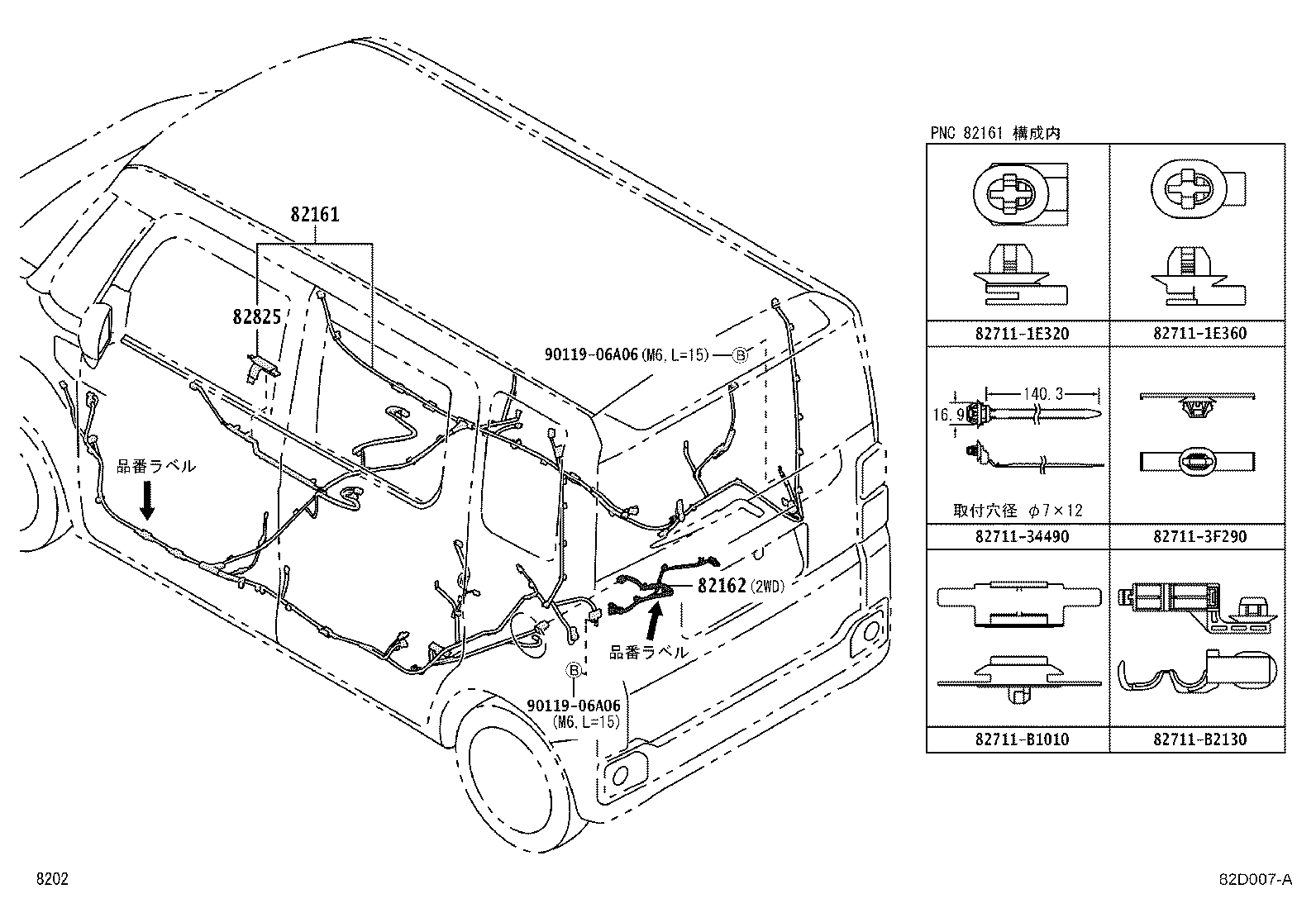

ILLUST NO. 6 OF10(1507- )

Click highlighted areas on diagram

ﾌﾛｱ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-BA490	LA700..G	07/2015 - 05/2016	1
82161-BA480	LA700..L,X	07/2015 - 05/2016	1
82161-B2Z90	LA700..D	07/2015 - 05/2016	1
82161-BA490	LA700..L,X ｲｰｼﾞｰｸﾛｰｻﾞｰ+R/L電動ｽﾗｲﾄﾞ有り	07/2015 - 05/2016	1
82162 - WIRE, FLOOR, NO.2
82162-B2210	LA700	07/2015 - 05/2016	1
82825 - PROTECTOR, WIRING HARNESS
82711-B2320	LA700,710	07/2015 - 05/2016	1
Common parts
82711-1E320
82711-1E360
82711-34490
82711-3F290
82711-B1010
82711-B2130
90119-06A06
