LA700A-GBGZ (2015)
Toyota Pixis Mega

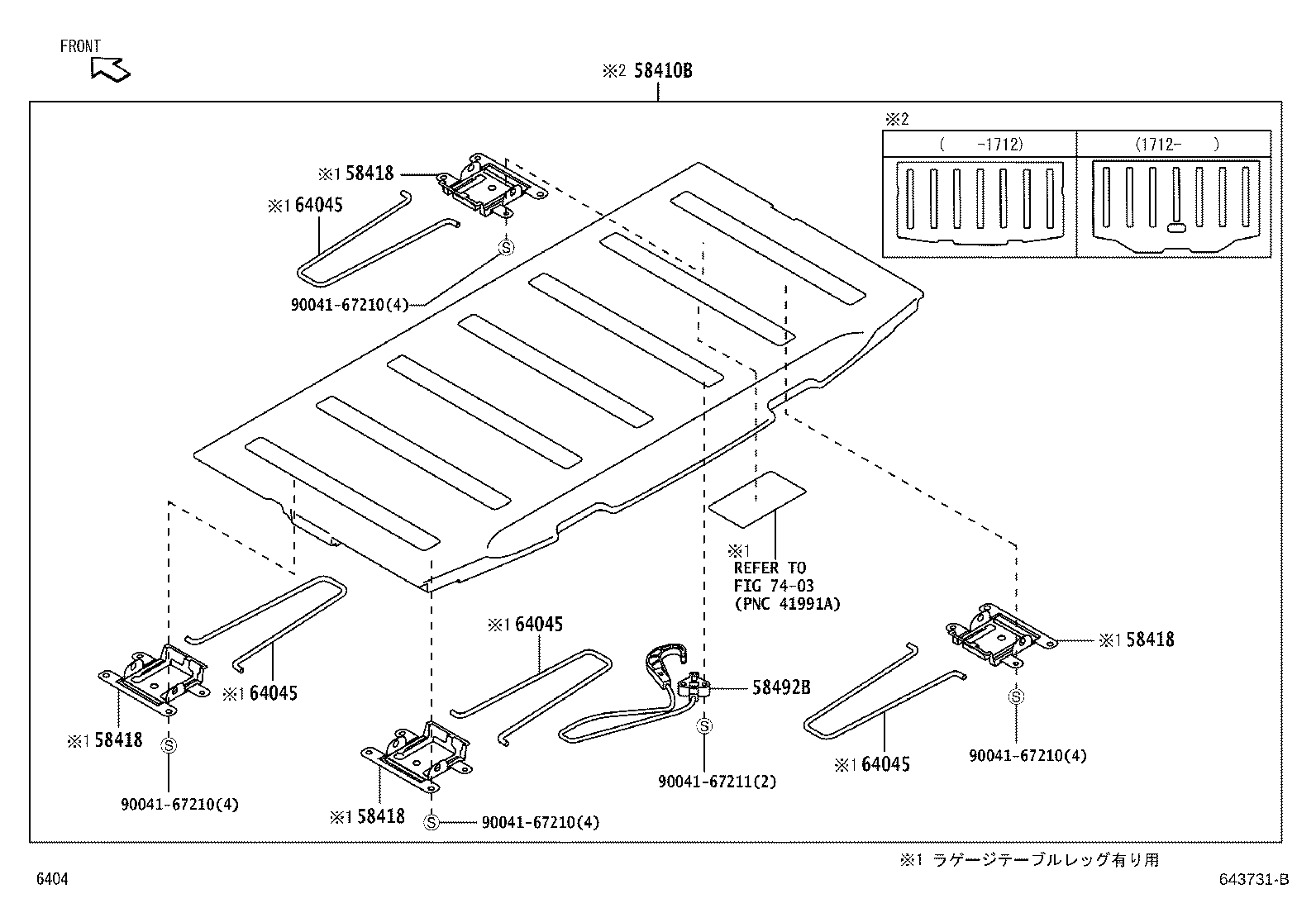

ILLUST NO. 2 OF 3(1507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-B2290B0 |
LA700..D,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT,DK.GRAY,TRIM1#,ﾗｯｹﾞｰｼﾞ ﾃｰﾌﾞﾙ ﾚｯｸﾞ有り |
1 | ||
| 58410-B2360B0 |
LA700,710..D,L,X DK.GRAY,TRIM1#,ﾗｯｹﾞｰｼﾞ ﾃｰﾌﾞﾙ ﾚｯｸﾞ無し |
1 | ||
| 58410-B2290B0 |
LA700,710..G DK.GRAY,TRIM1#,ﾗｯｹﾞｰｼﾞ ﾃｰﾌﾞﾙ ﾚｯｸﾞ有り |
1 | ||
| 58418 - BRACKET, DECK BOARD, NO.1 | ||||
| 57367-B2010 |
LA700,710..G |
4 | ||
| 57367-B2010 |
LA700..D,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| 58418 - BRACKET, DECK BOARD, NO.1 | ||||
| 57367-B2010 |
LA700,710..G |
4 | ||
| 57367-B2010 |
LA700..D,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| 58418 - BRACKET, DECK BOARD, NO.1 | ||||
| 57367-B2010 |
LA700,710..G |
4 | ||
| 57367-B2010 |
LA700..D,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| 58418 - BRACKET, DECK BOARD, NO.1 | ||||
| 57367-B2010 |
LA700,710..G |
4 | ||
| 57367-B2010 |
LA700..D,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| 58492B - HOOK, DECK BOARD LOCK | ||||
| 58492-B2020 |
LA700,710 |
1 | ||
| 64045 - LEG SUB-ASSY, LUGGAGE ROOM TABLE, RH | ||||
| 64447-B2010 |
LA700,710..G |
4 | ||
| 64447-B2010 |
LA700..D,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| 64045 - LEG SUB-ASSY, LUGGAGE ROOM TABLE, RH | ||||
| 64447-B2010 |
LA700,710..G |
4 | ||
| 64447-B2010 |
LA700..D,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| 64045 - LEG SUB-ASSY, LUGGAGE ROOM TABLE, RH | ||||
| 64447-B2010 |
LA700,710..G |
4 | ||
| 64447-B2010 |
LA700..D,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| 64045 - LEG SUB-ASSY, LUGGAGE ROOM TABLE, RH | ||||
| 64447-B2010 |
LA700,710..G |
4 | ||
| 64447-B2010 |
LA700..D,L,X ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| Common parts | ||||
| 90041-67210 | ||||
| 90041-67211 | ||||
| Linked diagrams | ||||
| 7403 | ||||

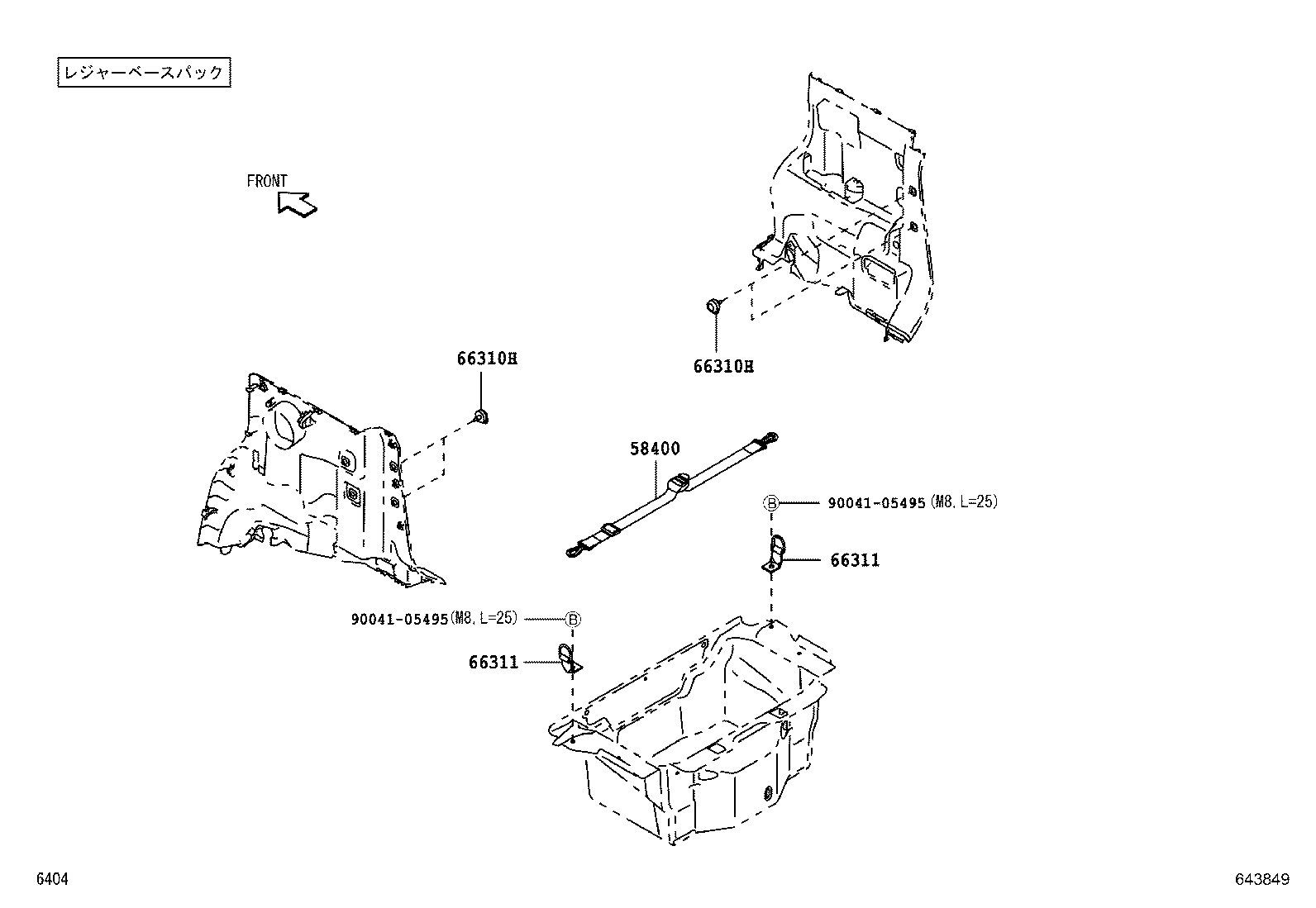

ILLUST NO. 3 OF 3(1507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58400 - BELT ASSY, LUGGAGE HOLD, NO.1 | ||||
| 58400-B2010 |
LA700 ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-B2021 |
LA700 ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-B2021 |
LA700 ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
4 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-B2010 |
LA700 ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
2 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-B2010 |
LA700 ﾗｹﾞ−ｼﾞ & ﾃﾞｯｷ ｶ−ﾍﾟｯﾄ/ﾏｯﾄ−ﾃﾞｯｷﾎﾞｰﾄﾞ(W/LEG)& LARGE BOX & KIT |
2 | ||
| Common parts | ||||
| 90041-05495 | ||||

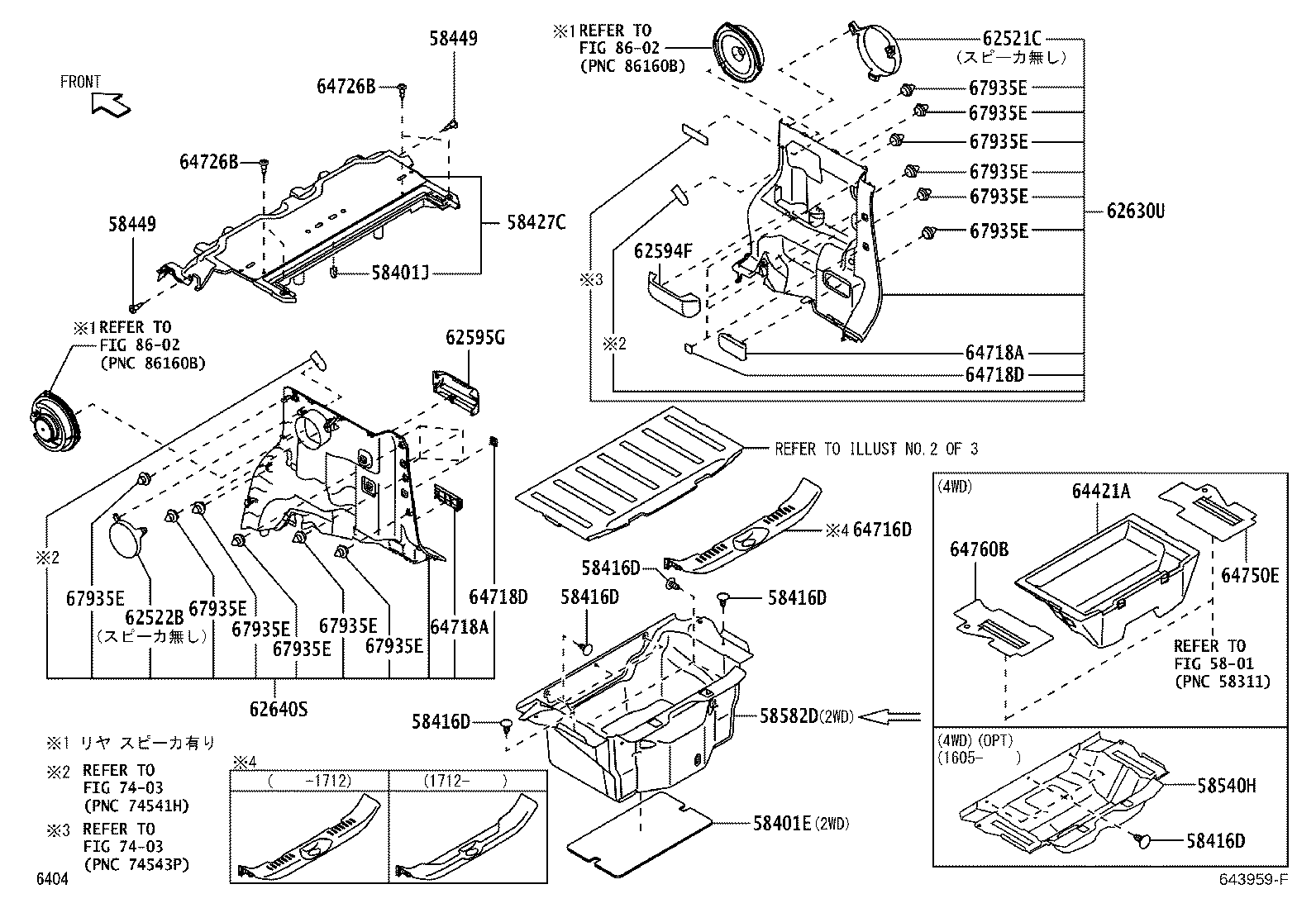

ILLUST NO. 1 OF 3(1507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58401E - BOARD SUB-ASSY, DECK | ||||
| 58401-B2100 |
LA700 |
1 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 90044-68306 |
LA700,710 |
1 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 90044-68046B2 |
LA700 DK.GRAY,TRIM1# |
7 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 90044-68046B2 |
LA700 DK.GRAY,TRIM1# |
7 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 90044-68046B2 |
LA700 DK.GRAY,TRIM1# |
7 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 90044-68046B2 |
LA700 DK.GRAY,TRIM1# |
7 | ||
| 58416D - CLIP, REAR FLOOR BOARD | ||||
| 90044-68046B2 |
LA700 DK.GRAY,TRIM1# |
7 | ||
| 58427C - SPACER, REAR FLOOR BOARD | ||||
| 58427-B2160B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 58449 - CLIP, DECK BOARD | ||||
| 90044-67579B0 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 58449 - CLIP, DECK BOARD | ||||
| 90044-67579B0 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 58582D - MAT, REAR FLOOR, REAR | ||||
| 58582-B2010 |
LA700 |
1 | ||
| 62521C - COVER, QUARTER TRIM RH | ||||
| 62538-B2030B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62522B - COVER, QUARTER TRIM LH | ||||
| 62538-B2030B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62594F - POCKET, QUARTER TRIM, RH | ||||
| 62594-B2050B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62595G - POCKET, QUARTER TRIM, LH | ||||
| 62595-B2060B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62630U - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-B2560B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62630-B2570B0 |
LA700,710 ﾘﾔ ｽﾋﾟｰｶ 16CM*2+ﾂｲｰﾀ*2,DK.GRAY,TRIM1# |
1 | ||
| 62640S - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-B2530B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 62640-B2540B0 |
LA700,710 ﾘﾔ ｽﾋﾟｰｶ 16CM*2+ﾂｲｰﾀ*2,DK.GRAY,TRIM1# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-B2200B0 |
LA700,710 DK.GRAY,TRIM1# |
1 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-B2130B0 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 64718A - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-B2130B0 |
LA700,710 DK.GRAY,TRIM1# |
2 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-B2170B0 |
LA700,710 DK.GRAY,TRIM1# |
8 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-B2170B0 |
LA700,710 DK.GRAY,TRIM1# |
8 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90044-68382B0 |
LA700,710 DK.GRAY,TRIM1# |
4 | ||
| 64726B - CLIP, DECK REAR TRIM | ||||
| 90044-68382B0 |
LA700,710 DK.GRAY,TRIM1# |
4 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| 67935E - RETAINER, DOOR TRIM | ||||
| 67771-B2010 |
LA700,710 |
12 | ||
| Linked diagrams | ||||
| 5801 | ||||
| 7403 | ||||
| 8602 | ||||
