LA700A-GBGZ (2015)
Toyota Pixis Mega
Production
Jul 2015
-
May 2016
Engine
KFVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1507- )

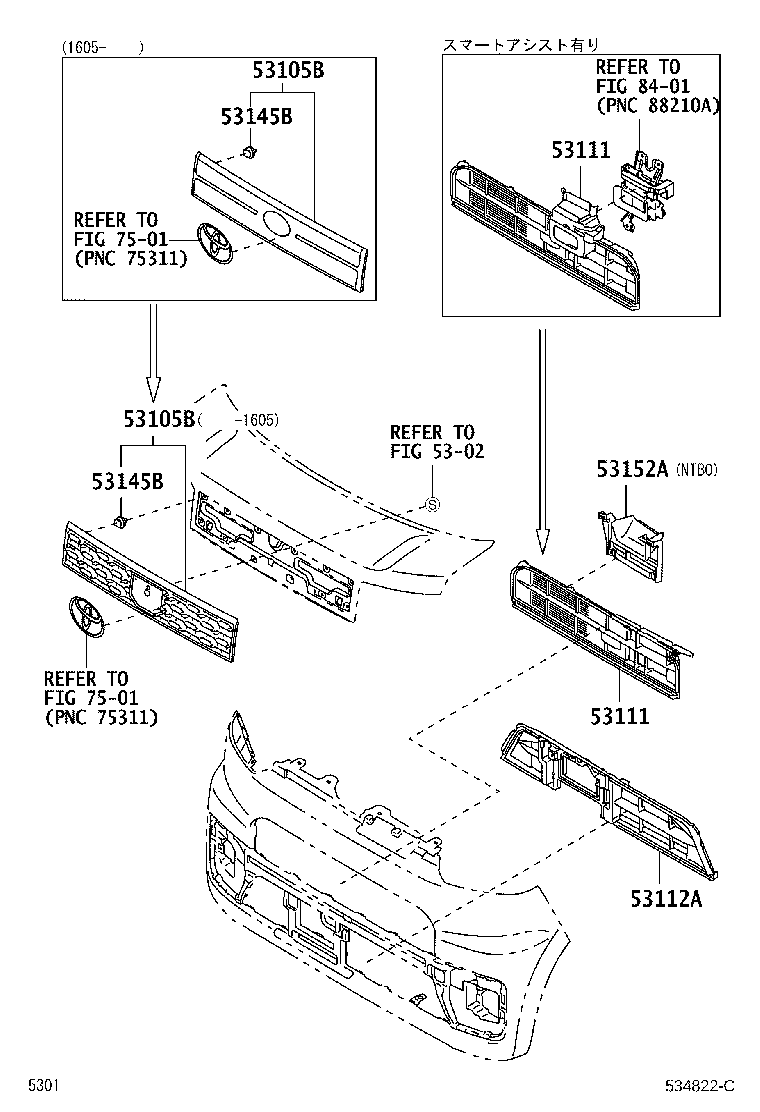

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53105B - GARNISH SUB-ASSY, RADIATOR GRILLE | ||||
| 53105-B2310 |
LA700,710 ｼﾙﾊﾞｰ塗装 |
1 | ||
| 53105B - GARNISH SUB-ASSY, RADIATOR GRILLE | ||||
| 53105-B2310 |
LA700,710 ｼﾙﾊﾞｰ塗装 |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-B2620 |
LA700,710 |
1 | ||
| 53111-B2560 |
LA700,710 ｽﾏｰﾄｱｼｽﾄ |
1 | ||
| 53111-B2560 |
LA700,710..L ｽﾏｰﾄｱｼｽﾄ&ﾌﾛﾝﾄ ﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞ ﾗﾝﾌﾟ 有り(HI) |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-B2620 |
LA700,710 |
1 | ||
| 53111-B2560 |
LA700,710 ｽﾏｰﾄｱｼｽﾄ |
1 | ||
| 53111-B2560 |
LA700,710..L ｽﾏｰﾄｱｼｽﾄ&ﾌﾛﾝﾄ ﾌｫｸﾞ&ﾄﾞﾗｲﾋﾞﾝｸﾞ ﾗﾝﾌﾟ 有り(HI) |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53112-B2380 |
LA700,710 |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-B2030 |
LA700,710 |
11 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-B2030 |
LA700,710 |
11 | ||
| Linked diagrams | ||||
| 5302 | ||||
| 7501 | ||||
| 8401 | ||||
