Toyota Pixis mega LA700A LANE-KEEPING ASSIST

Part #	Description	Period	Qty

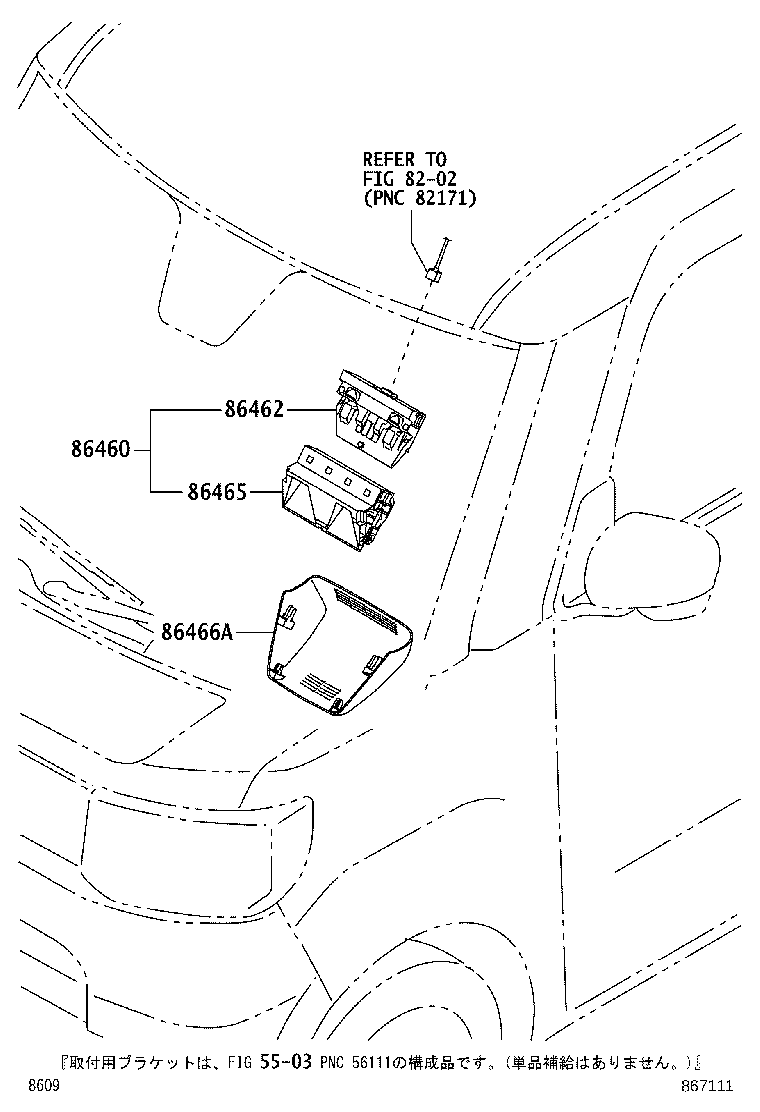

86460 - SENSOR ASSY, LANE RECOGNITION CAMERA
86460-B2090	LA700..D 有り(ｽﾃﾚｵｶﾒﾗ+AHB)	01/2018 - 02/2018	1
86460-B2091	LA700..D 有り(ｽﾃﾚｵｶﾒﾗ+AHB)	03/2018 - 08/2018	1
86460-B2092	LA700,710..G,L	09/2018 - 12/2999	1
86460-B2090	LA700,710..G,L	01/2018 - 02/2018	1
86460-B2092	LA700..D 有り(ｽﾃﾚｵｶﾒﾗ+AHB)	09/2018 - 12/2999	1
86460-B2091	LA700,710..G,L	03/2018 - 08/2018	1
86462 - CAMERA, OBJECT RECOGNITION
8646C-B2101	LA700..D 有り(ｽﾃﾚｵｶﾒﾗ+AHB)	09/2018 - 12/2999	1
8646C-B2101	LA700,710..G,L	09/2018 - 12/2999	1
8646C-B2100	LA700..D 有り(ｽﾃﾚｵｶﾒﾗ+AHB)	01/2018 - 08/2018	1
8646C-B2100	LA700,710..G,L	01/2018 - 08/2018	1
86465 - BRACKET, LANE RECOGNITION
87241-B2110	LA700,710..G,L	01/2018 - 02/2018	1
87241-B2111	LA700,710..G,L	03/2018 - 12/2999	1
87241-B2111	LA700..D 有り(ｽﾃﾚｵｶﾒﾗ+AHB)	03/2018 - 12/2999	1
87241-B2110	LA700..D 有り(ｽﾃﾚｵｶﾒﾗ+AHB)	01/2018 - 02/2018	1
86466A - COVER, LANE RECOGNITION, NO.1
86466-B2190C0	LA700..D 有り(ｽﾃﾚｵｶﾒﾗ+AHB),BLACK,TRIM1#	01/2018 - 12/2999	1
86466-B2190C0	LA700,710..G,L BLACK,TRIM1#	01/2018 - 12/2999	1
Linked diagrams
5503
8202

LA700A-GBDF2 (2018)
