Toyota Pixis mega LA700A CLEARANCE & BACK SONAR

Part #	Description	Period	Qty
82219H - WIRE, SENSOR
82219-B2130	LA700,710..G,L	05/2016 - 12/2999	2
82219-B2130	LA700..D ｽﾏｰﾄｱｼｽﾄ	05/2016 - 01/2018	2
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-B2060	LA700,710..G,L	05/2016 - 01/2018	1
89340-B2060	LA700..D ｽﾏｰﾄｱｼｽﾄ	05/2016 - 01/2018	1
89341A - SENSOR, ULTRASONIC, NO.1
89341-B2020G3	LA700,710..G,L KHAKI ME.,G55 ,X87	05/2016 - 01/2018	2
89341-B2020B3	LA700..D ｽﾏｰﾄｱｼｽﾄ,GRAY ME.,S38	05/2016 - 01/2018	2
89341-B2020D0	LA700..D ｽﾏｰﾄｱｼｽﾄ,BROWN MC.CS,R59	05/2016 - 01/2018	2
89341-B2020A1	LA700..D ｽﾏｰﾄｱｼｽﾄ,WHITE PEARL MC.CS,W24	05/2016 - 01/2018	2
89341-B2020C0	LA700..D ｽﾏｰﾄｱｼｽﾄ,BLACK M.M.,X07	05/2016 - 01/2018	2
89341-B2020D2	LA700..D ｽﾏｰﾄｱｼｽﾄ,ORANGE ME.,R71 ,X85	05/2016 - 01/2018	2
89341-B2020B3	LA700,710..G,L GRAY ME.,S38	05/2016 - 12/2999	2
89341-B2020J5	LA700..D ｽﾏｰﾄｱｼｽﾄ,PALE BLUE M.M.,B69 ,X81	05/2016 - 01/2018	2
89341-B2020D2	LA700,710..G,L ORANGE ME.,R71 ,X85	05/2016 - 01/2018	2
89341-B2020J4	LA700..D ｽﾏｰﾄｱｼｽﾄ,BLUE M.M.,B58 ,XE1	05/2016 - 01/2018	2
89341-B2020G1	LA700..D ｽﾏｰﾄｱｼｽﾄ,GREEN,G57 ,XA3	05/2016 - 01/2018	2
89341-B2020G3	LA700..D ｽﾏｰﾄｱｼｽﾄ,KHAKI ME.,G55 ,X87	05/2016 - 01/2018	2
89341-B2020C0	LA700,710..G,L BLACK M.M.,X07	05/2016 - 12/2999	2
89341-B2020D0	LA700,710..G,L BROWN MC.CS,R59	05/2016 - 12/2999	2
89348D - CLIP, ULTRASONIC SENSOR
89348-35030	LA700,710..G,L	05/2016 - 01/2018	1
89348-35030	LA700..D ｽﾏｰﾄｱｼｽﾄ	05/2016 - 01/2018	1
Common parts
90159-70003

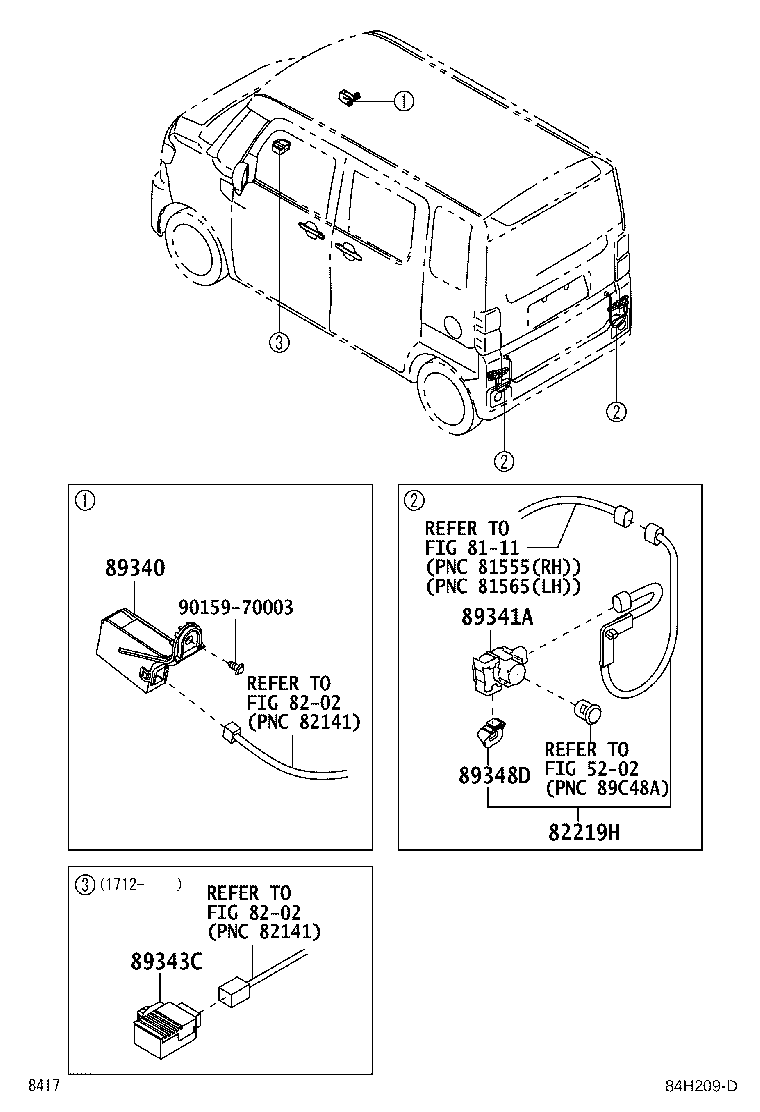

Linked diagrams
5202
8111
8202

LA700A-GBDF (2016)

(1605- )PS1 ; (1801- )
