LA700A-GBDF (2016)

Toyota Pixis Mega

Production May 2016 - Jan 2018
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507-1909)

Click highlighted areas on diagram

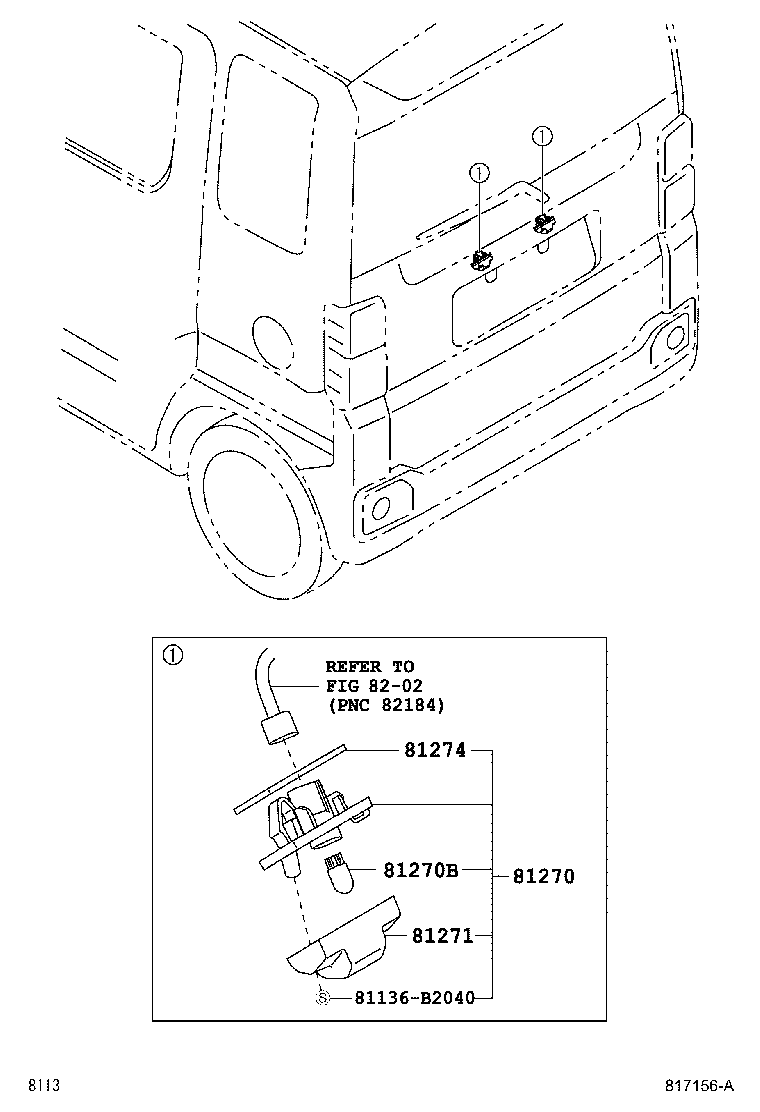

diagram 81136B2040 81270 81270B 81271 81274 8202
Part # Description Qty Price
81270B - BULB (FOR LICENSE PLATE LAMP)
90049-51184

LA700,710

12V 5W

 2
Common parts
81136-B2040
Linked diagrams
8202
