LA700A-GBDF (2016)

Toyota Pixis Mega

Production May 2016 - Jan 2018
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1605- )

Click highlighted areas on diagram

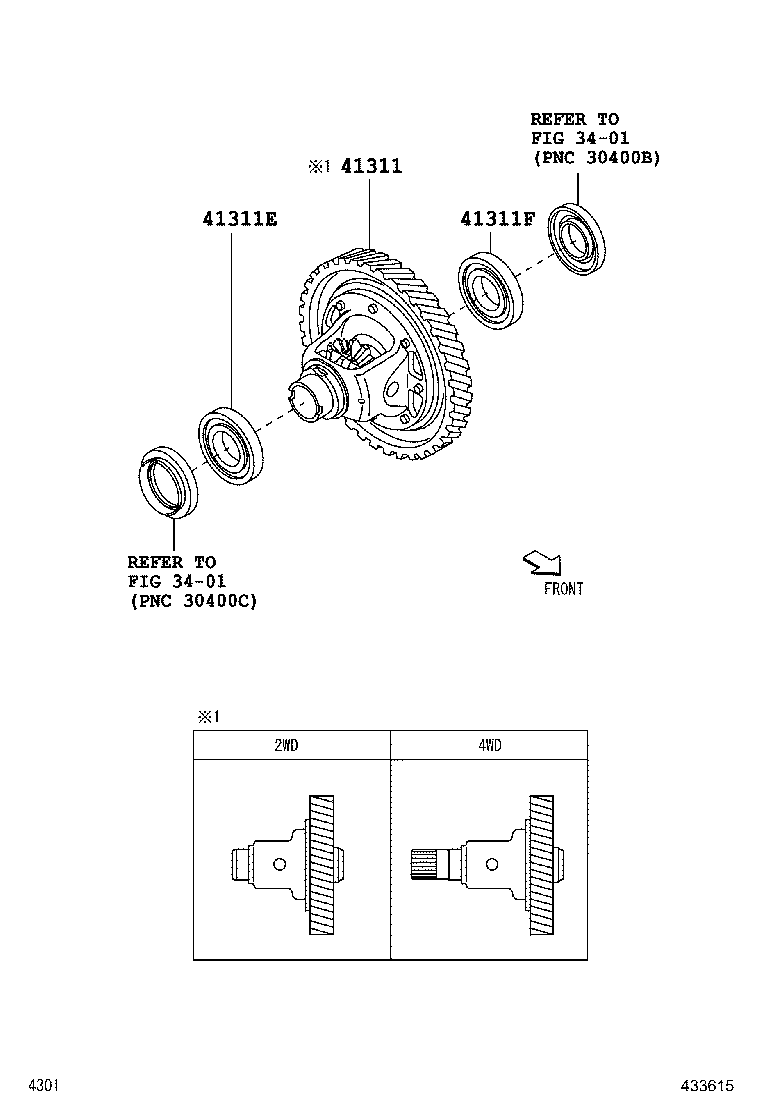

diagram 3401 3401 41311 41311E 41311F
Part # Description Qty Price
41311 - CASE, FRONT DIFFERENTIAL
41310-B2240

LA700..NTBO

 1
41310-B2110

LA700..TBO

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90043-63389

LA700,710

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90043-63388

LA700,710

 1
Linked diagrams
3401
