LA700A-GBDF (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

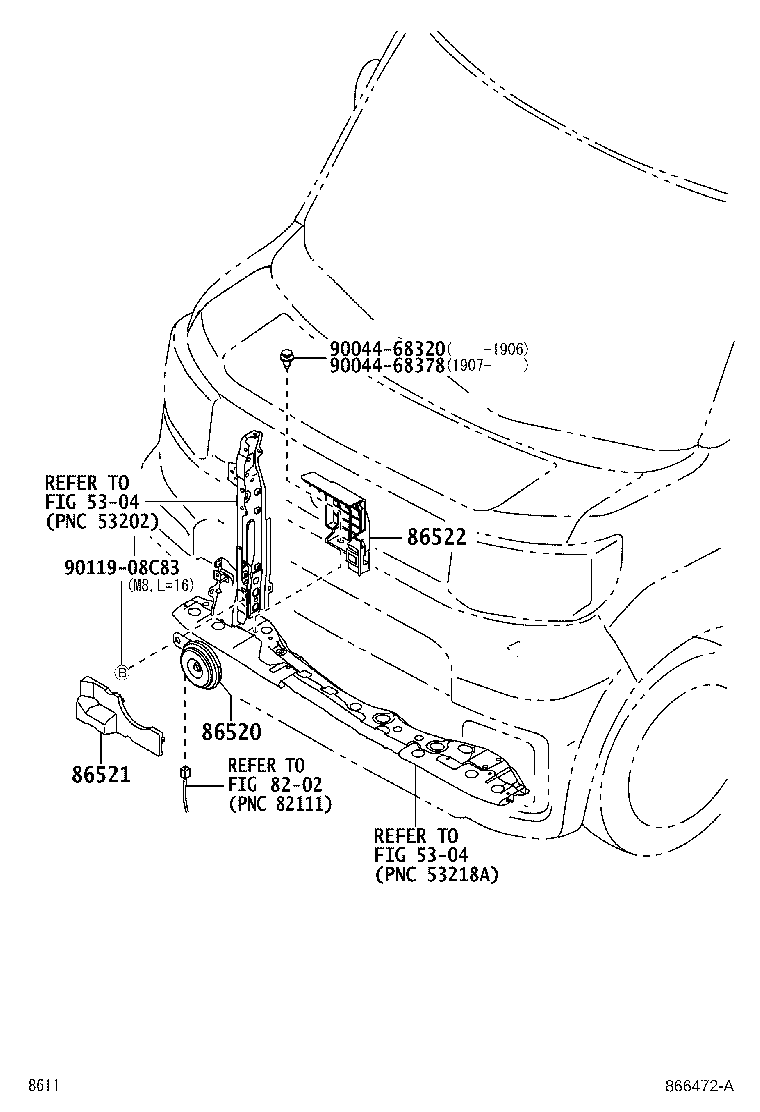

Click highlighted areas on diagram

diagram 5304 5304 8202 86520 86521 86522 9004468320 9004468378 9011908C83
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-B5010

LA700,710

DENSO

 1
86520-B2040

LA700,710

MARUKO

 1
86521 - COVER, LOW PITCHED HORN
86522-B2070

LA700,710

 1
86522 - PROTECTOR, HORN
86522-B2060

LA700,710

 1
Common parts
90044-68320
90044-68378
90119-08C83
Linked diagrams
5304
8202
