LA700A-GBDF (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

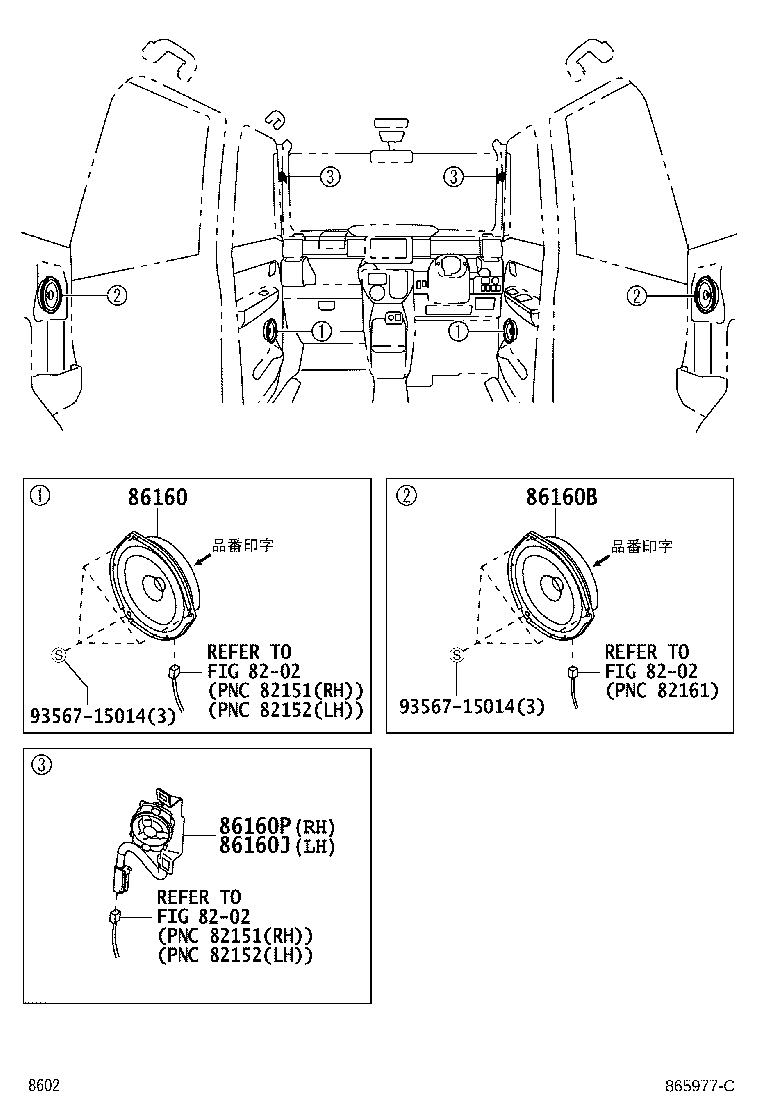

Click highlighted areas on diagram

diagram 8202 8202 8202 86160 86160B 86160J 86160P 9356715014 9356715014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-B2420

LA700,710

 2
86160B - SPEAKER ASSY, REAR
86160-B2420

LA700,710

ﾘﾔ ｽﾋﾟｰｶ 16CM*2+ﾂｲｰﾀ*2

 2
86160J - SPEAKER ASSY, FRONT NO.3
86160-B2350

LA700,710

ﾘﾔ ｽﾋﾟｰｶ 16CM*2+ﾂｲｰﾀ*2

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-B2340

LA700,710

ﾘﾔ ｽﾋﾟｰｶ 16CM*2+ﾂｲｰﾀ*2

 1
Common parts
93567-15014
Linked diagrams
8202
