LA700A-GBDF (2015)
Toyota Pixis Mega
Production
Jul 2015
-
May 2016
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1507- )

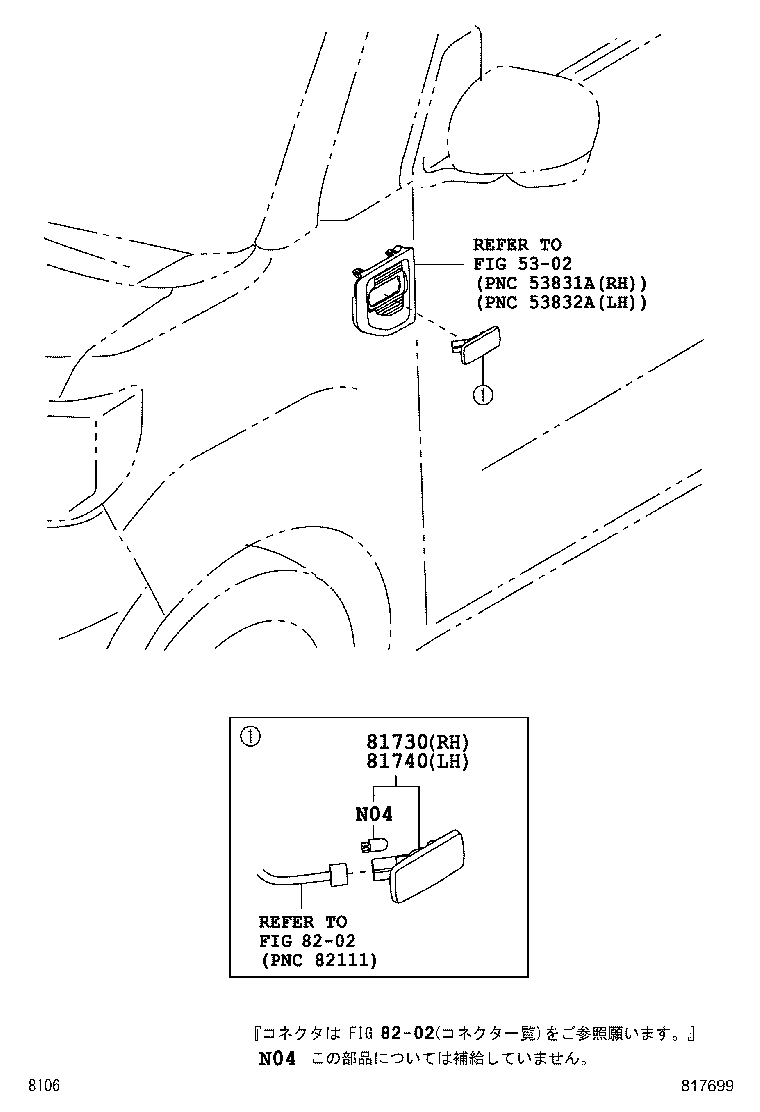

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-B2130 |
LA700,710 ｸﾘｱﾚﾝｽﾞ,12V 5W T10 |
1 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-B2130 |
LA700,710 ｸﾘｱﾚﾝｽﾞ,12V 5W T10 |
1 | ||
| Linked diagrams | ||||
| 5302 | ||||
| 8202 | ||||
