LA700A-GBDF (2015)

Toyota Pixis Mega

Production Jul 2015 - May 2016
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(1507- )

Click highlighted areas on diagram

diagram 67005 7501 75129C
Part # Description Qty Price

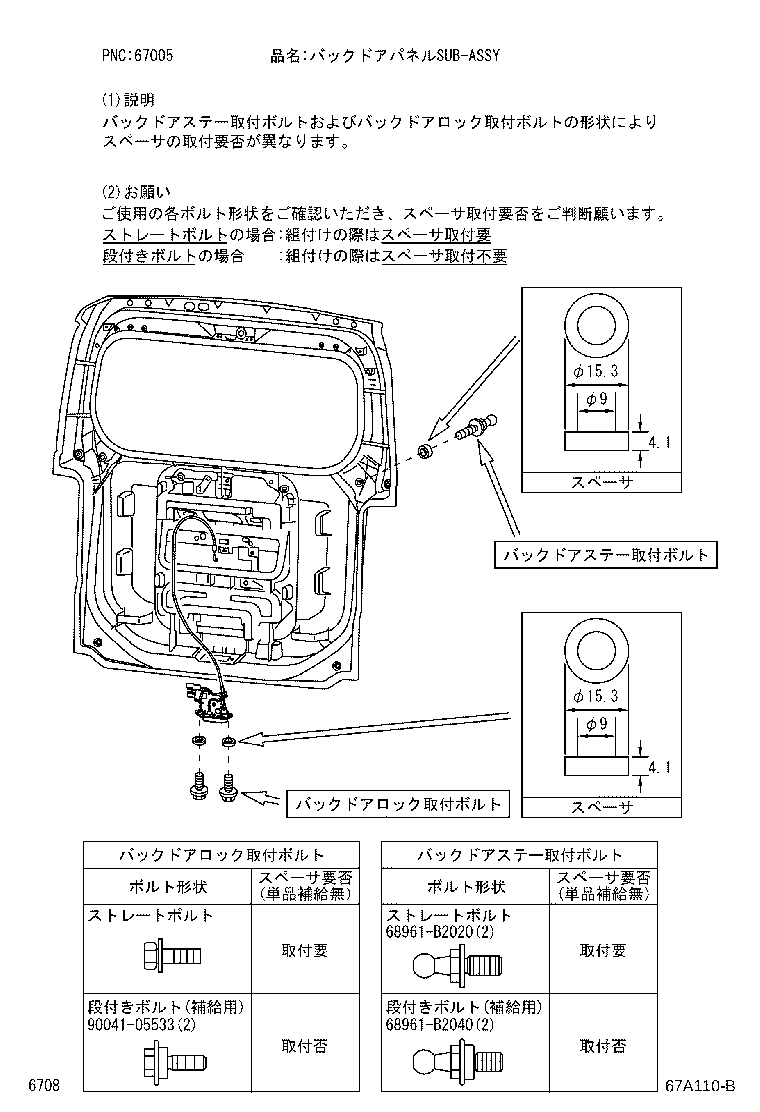

67005 - PANEL SUB-ASSY, BACK DOOR
67005-B2F90

LA700,710

ﾙｰﾌ ｴﾝﾄﾞ ｽﾎﾟｲﾗ付き

 1

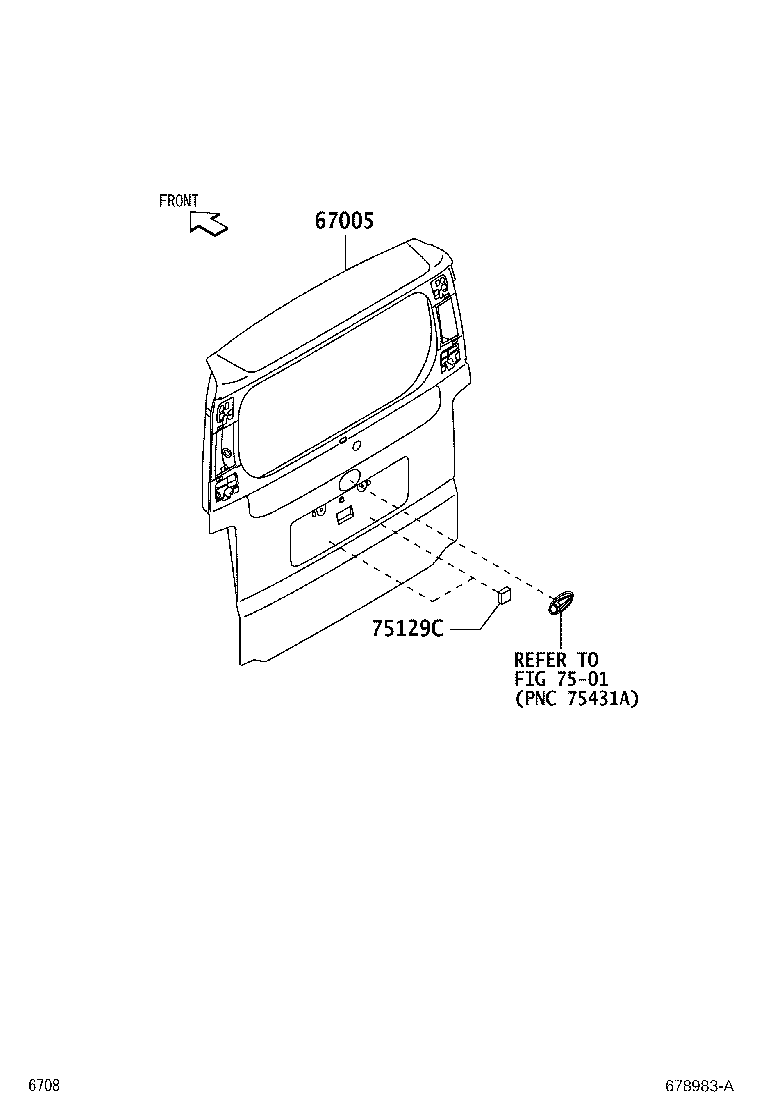

75129C - CUSHION, REAR LICENCE PLATE
75129-87502

LA700,710

 2
Linked diagrams
7501

ILLUST NO. 4 OF 4(1507- )

Click highlighted areas on diagram

ﾄﾘﾂｹﾌﾞﾋﾝｼｮｳｻｲ

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 4(1507- )

Click highlighted areas on diagram

diagram 67005 67893A 67894B 8202 8202
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-B2F90

LA700,710

ﾙｰﾌ ｴﾝﾄﾞ ｽﾎﾟｲﾗ付き

 1

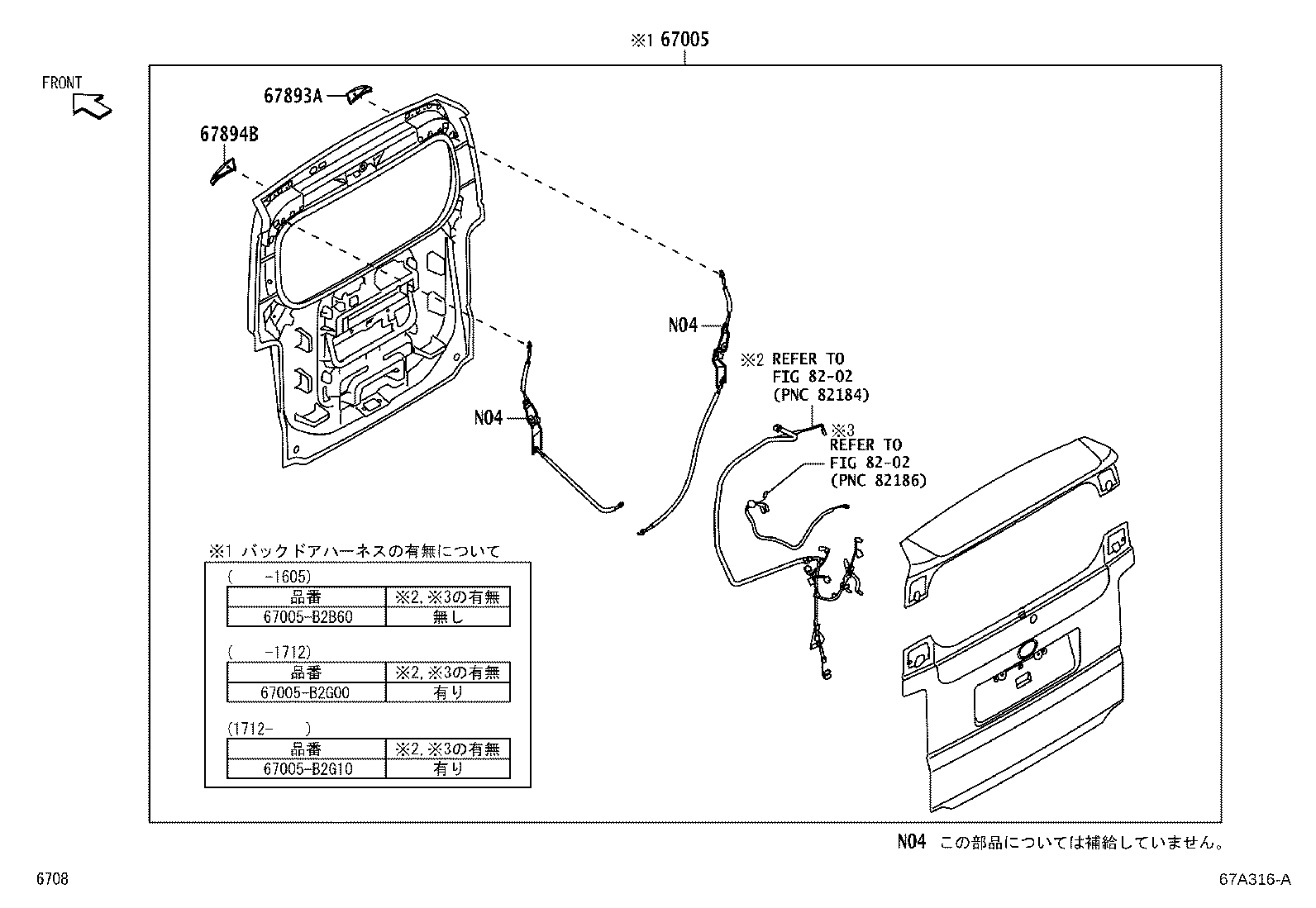

67893A - PROTECTOR, BACK DOOR PANEL, NO.1
76835-B2020B0

LA700,710

DK.GRAY,TRIM1#

 1
67894B - PROTECTOR, BACK DOOR PANEL, NO.2
76836-B2020B0

LA700,710

DK.GRAY,TRIM1#

 1
Linked diagrams
8202

ILLUST NO. 1 OF 4(1507- )

Click highlighted areas on diagram

diagram 64780A 64827D 64827D 64885A 64886 67005 67005B 67005B 67005B 67005B 6709 67750A 67818B 67818B 67818B 67818B 67881A 68131 8121
Part # Description Qty Price

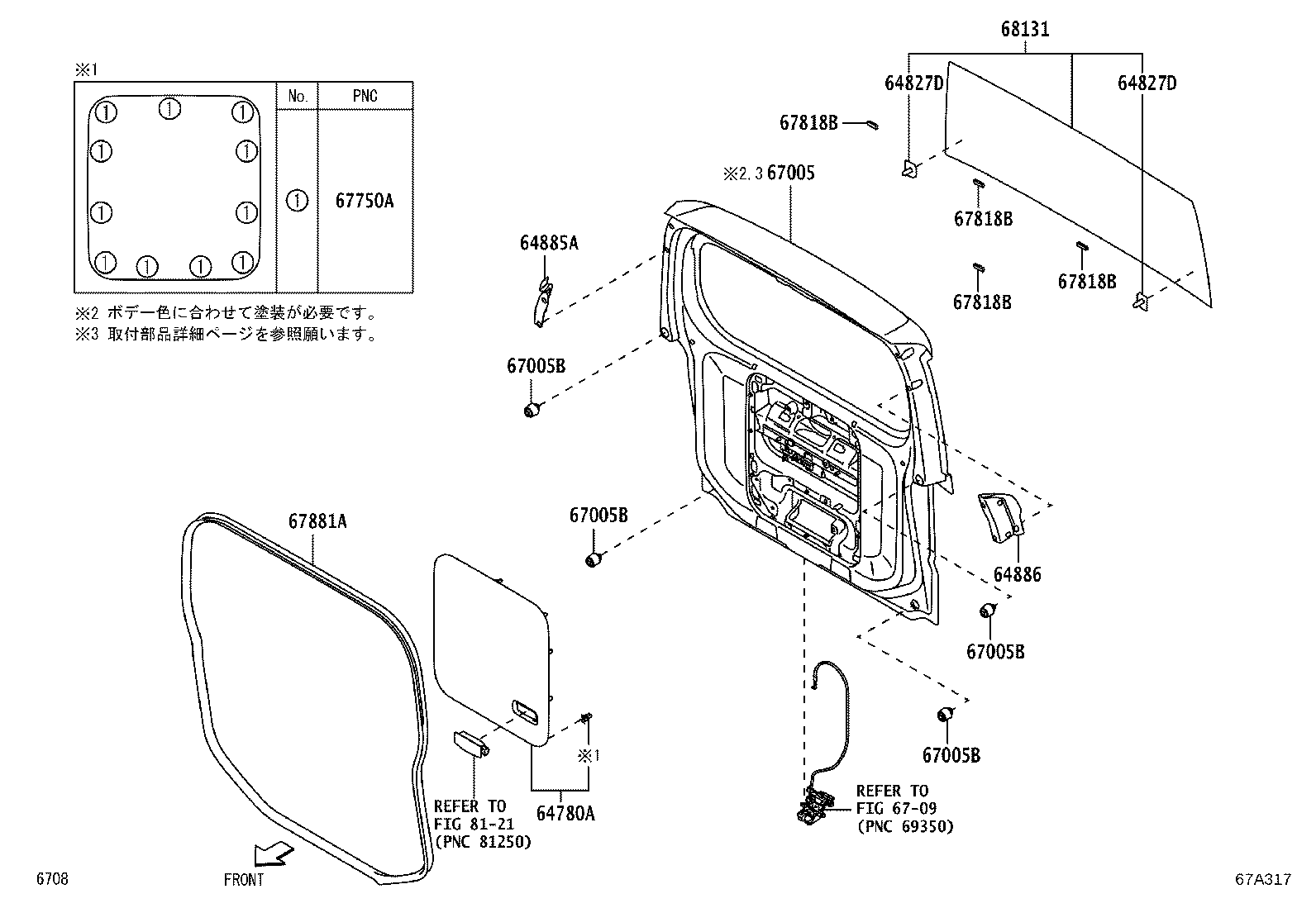

64780A - PANEL ASSY, BACK DOOR TRIM
64780-B2170B0

LA700,710

DK.GRAY,TRIM1#

 1
64827D - CLIP, BACK WINDOW GLASS
64827-B2040

LA700,710

 2
64827D - CLIP, BACK WINDOW GLASS
64827-B2040

LA700,710

 2
64885A - CHANNEL, BACK WINDOW GLASS, RH
64885-B2021

LA700,710

ｸﾘｯﾌﾟ､ｼｰﾙﾊﾟｯｷﾝ付き

 1
64886 - CHANNEL, BACK WINDOW GLASS, LH
64886-B2021

LA700,710

ｸﾘｯﾌﾟ､ｼｰﾙﾊﾟｯｷﾝ付き

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-B2F90

LA700,710

ﾙｰﾌ ｴﾝﾄﾞ ｽﾎﾟｲﾗ付き

 1
67005B - CUSHION(FOR BACK DOOR PANEL)
90045-41273

LA700,710

 4
67005B - CUSHION(FOR BACK DOOR PANEL)
90045-41273

LA700,710

 4
67005B - CUSHION(FOR BACK DOOR PANEL)
90045-41273

LA700,710

 4
67005B - CUSHION(FOR BACK DOOR PANEL)
90045-41273

LA700,710

 4
67750A - CLIP(FOR BACK DOOR TRIM)
90044-68324

LA700,710

 11
67818B - SPACER, BACK WINDOW GLASS
64818-B2010

LA700,710

 4
67818B - SPACER, BACK WINDOW GLASS
64818-B2010

LA700,710

 4
67818B - SPACER, BACK WINDOW GLASS
64818-B2010

LA700,710

 4
67818B - SPACER, BACK WINDOW GLASS
64818-B2010

LA700,710

 4
67881A - WEATHERSTRIP, BACK DOOR
67881-B2320

LA700,710

 1
68131 - GLASS, BACK DOOR
68105-B2320

LA700,710

 1
Linked diagrams
6709
