LA260A-GBVZ (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

Click highlighted areas on diagram

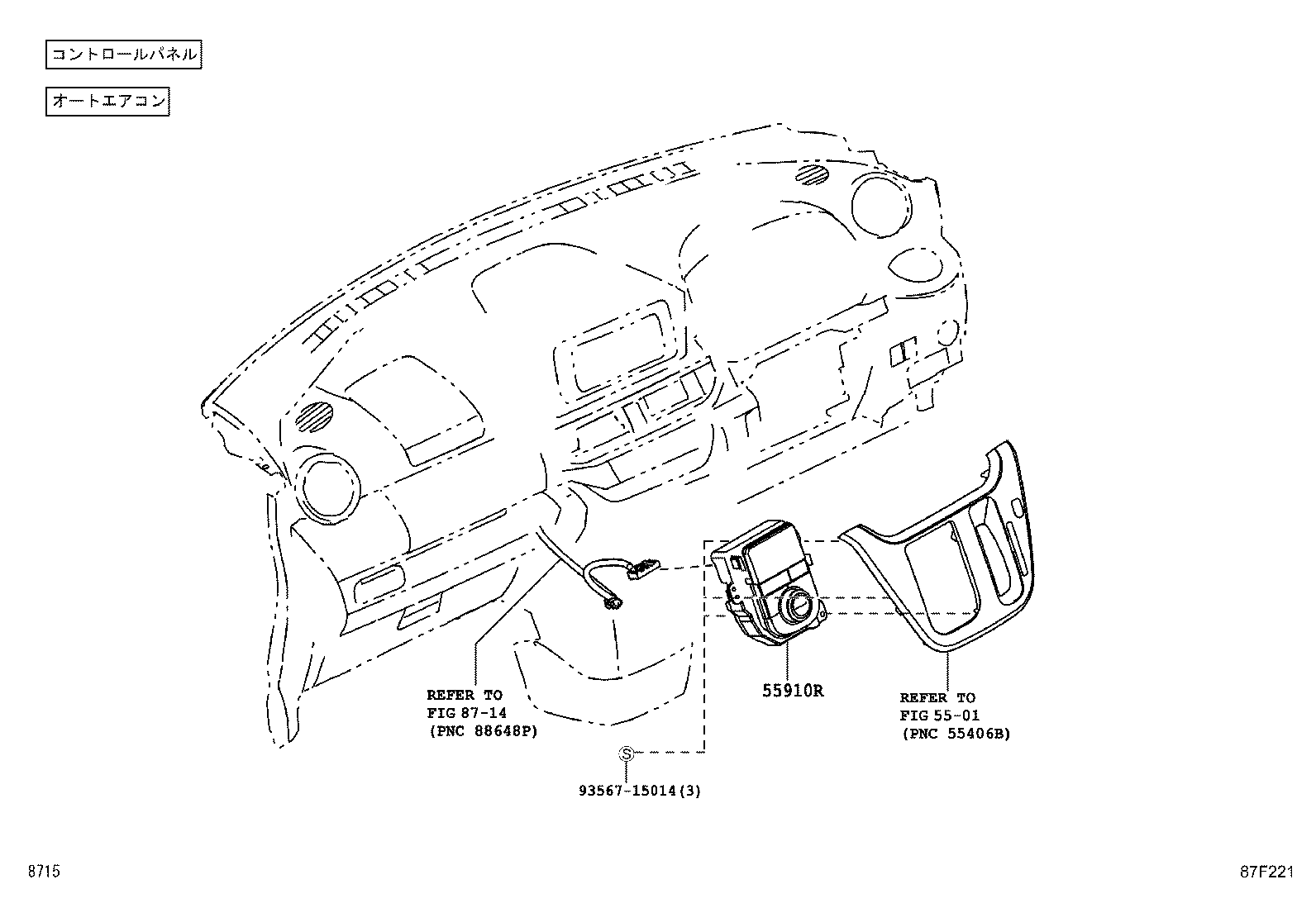

CONTROL ASSY,HEATER

diagram 5501 55910R 8714 9356715014
Part # Description Qty Price
55910R - CONTROL ASSY, HEATER
55910-B2670

LA250,260..CG,CGT,CX,FG,FGT,FX

ｼﾙﾊﾞｰ

 1
55910-B2660

LA250..FG,FGT;LA250..FX..PS1;LA260..(FG,FGT)..PS2;LA260..(FG,FGT,FX)..PS1

ﾌﾟﾗｲﾑｺﾚｸｼｮﾝ(ﾌﾞﾗｯｸｲﾝﾃﾘｱﾊﾟｯｸ),ﾌﾟﾚﾐｱﾑ ｼｬｲﾝ ﾌﾞﾗｯｸ

 1
55910-B2660

LA250,260..S

ﾌﾟﾚﾐｱﾑ ｼｬｲﾝ ﾌﾞﾗｯｸ

 1
Common parts
93567-15014
Linked diagrams
5501
8714

(1609- )

Click highlighted areas on diagram

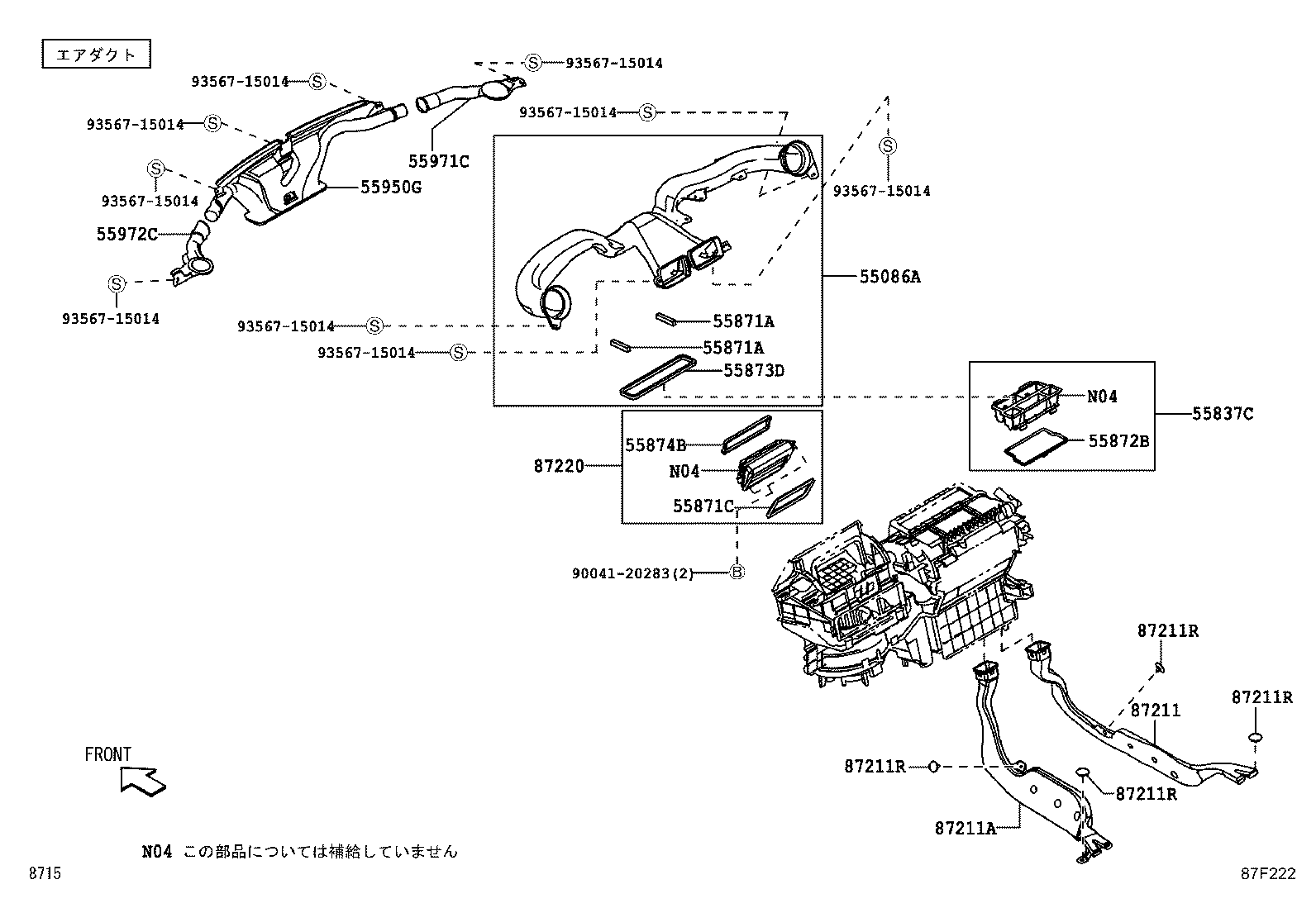

AIR DUCT

diagram 55086A 55837C 55871A 55871A 55871C 55872B 55873D 55874B 55950G 55971C 55972C 87211 87211A 87211R 87211R 87211R 87211R 87220 9004120283 9356715014 9356715014 9356715014 9356715014 9356715014 9356715014 9356715014 9356715014 9356715014
Part # Description Qty Price
55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER
55086-B2430

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55837C - DUCT, HEATER TO REGISTER CENTER SUB
55837-B2050

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55871A - SEAL, AIR DUCT, NO.1
55874-B2130

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
55871A - SEAL, AIR DUCT, NO.1
55874-B2130

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
55871C - SEAL, AIR DUCT
55875-B2050

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55872B - SEAL, AIR DUCT,NO.2
55874-B2110

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55873D - SEAL, AIR DUCT, CENTER
55873-B2160

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55874B - SEAL, AIR DUCT, NO.4
55876-B2020

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-B2300

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55961-B2190

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55962-B2160

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
87211 - DUCT, AIR, NO.1
87220-B2290

LA260

 1
87211A - DUCT, AIR, NO.2
87230-B2170

LA260

 1
87211R - CLIP, AIR DUCT
90044-67492

LA260

 4
87211R - CLIP, AIR DUCT
90044-67492

LA260

 4
87211R - CLIP, AIR DUCT
90044-67492

LA260

 4
87211R - CLIP, AIR DUCT
90044-67492

LA260

 4
87220 - DUCT ASSY, AIR
87220-B2300

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
Common parts
90041-20283
93567-15014

(1609- )

Click highlighted areas on diagram

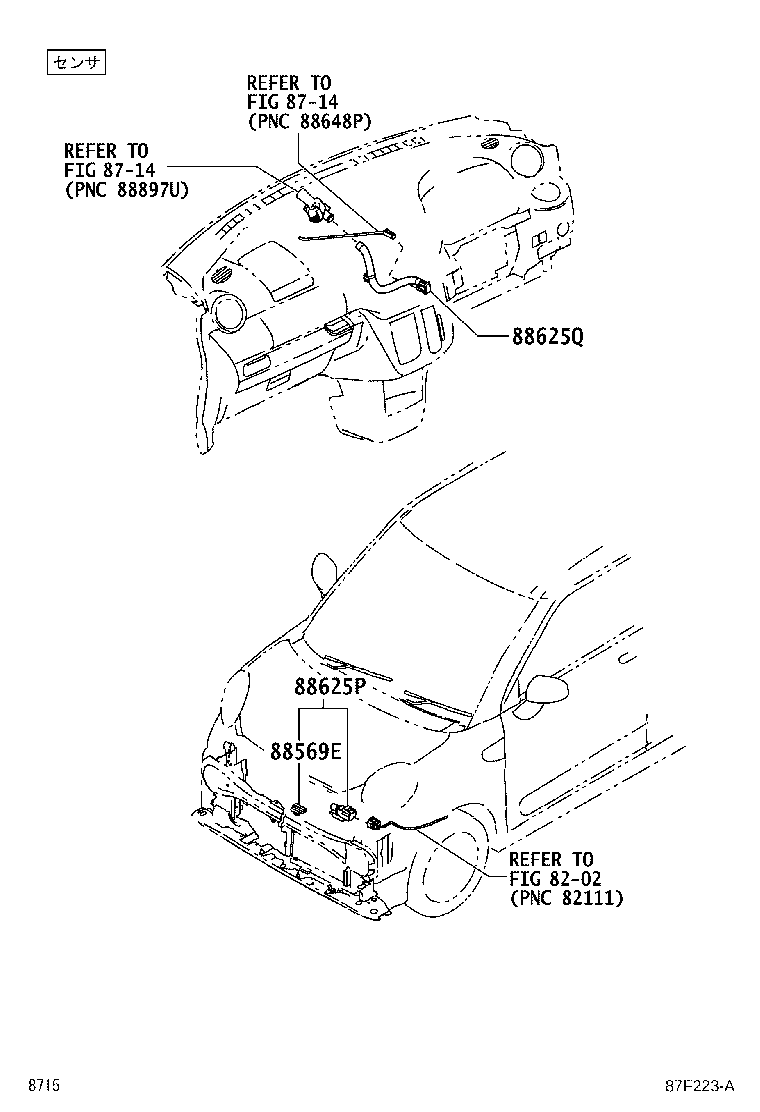

SENSOR

diagram 8202 8714 8714 88569E 88625P 88625Q
Part # Description Qty Price
88569E - CLAMP (FOR COOLER THERMISTOR)
82711-1E360

LA250,260

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22131

LA250,260

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88790-B2220

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
Linked diagrams
8202
8714
