Toyota Pixis joy LA260A FUEL INJECTION SYSTEM

Manufacturers Home
Toyota
JP
PIXIS JOY
LA260A-GBVZ (2016)
2211 - FUEL INJECTION SYSTEM

LA260A-GBVZ (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017

Engine KFVET

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

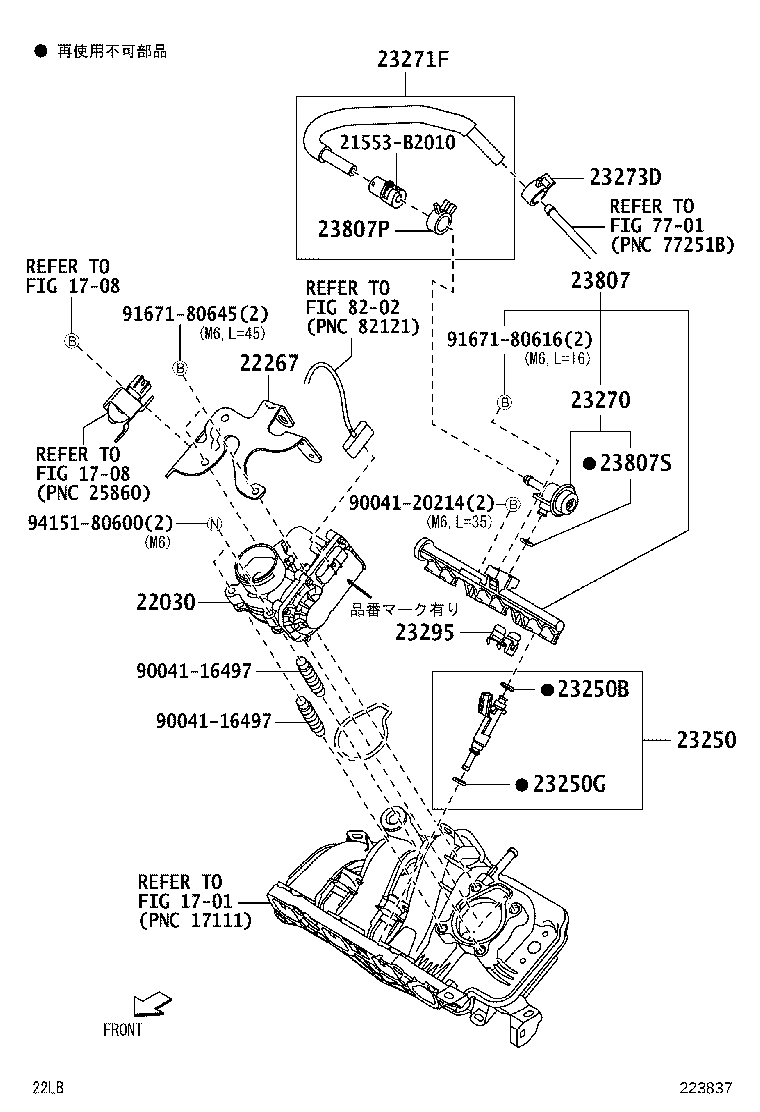

(1609-1704)

Click highlighted areas on diagram

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-B2040	KFV#..LA250,260	09/2016 - 12/2999	1
22267 - BRACKET, THROTTLE BODY
58239-B2030	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23250-B2020	KFVET..LA250,260..FGT;KFVET..LA250,260..(CGT,S)..PS1	09/2016 - 12/2999	3
23250-B2050	KFVE..LA250,260..FG,FX;KFVE..LA250,260..(CG,CX)..PS1	09/2016 - 12/2999	3
23250B - RING, O(FOR FUEL INJECTOR)
90043-01349	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	3
23250G - RING, O, NO.2(FOR FUEL INJECTOR)
90043-01348	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	3
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-B2010	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23271F - HOSE, FUEL
77260-B2060	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23273D - CLIP(FOR FUEL HOSE NO.2)
90044-67400	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23295 - HOLDER, INJECTOR, NO.1
23295-B2020	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	3
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-B2020	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23807P - CLIP(FOR FUEL HOSE)
90044-67400	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23807S - RING, O(FOR FUEL DELIVARY PIPE)
90043-01353	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
Common parts
21553-B2010
90041-16497
90041-20214
91671-80616
91671-80645
94151-80600
Linked diagrams
1701
1708
7701
8202

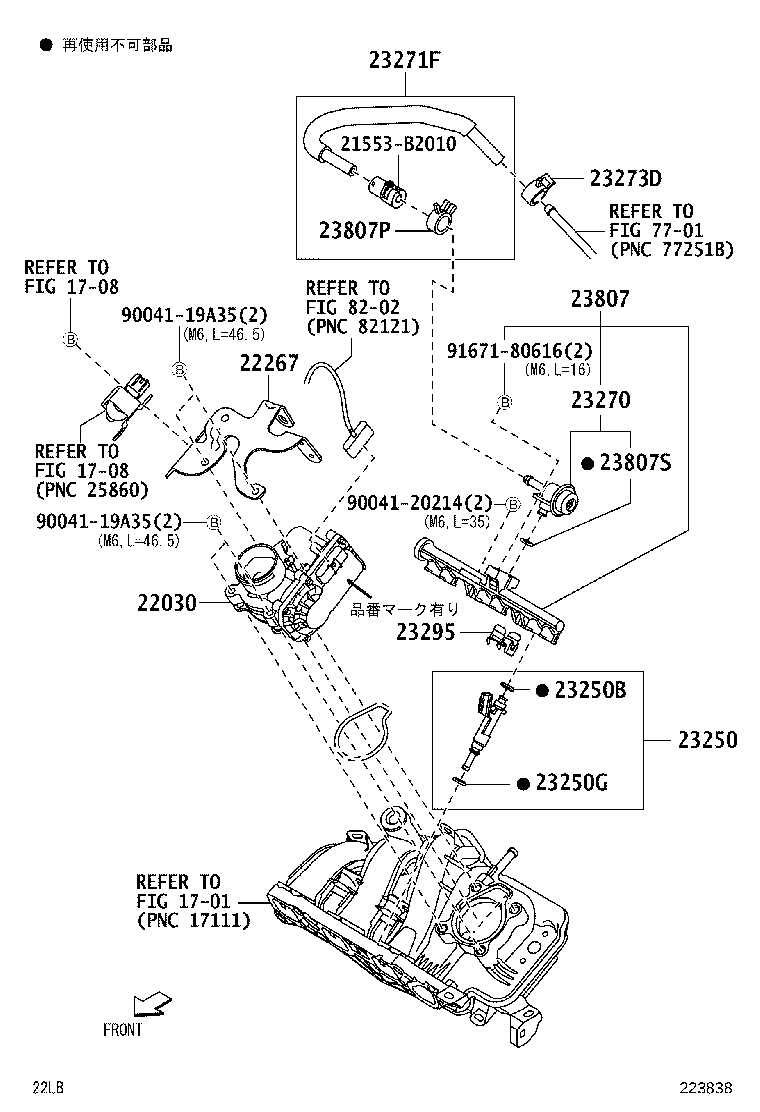

(1705- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-B2040	KFV#..LA250,260	09/2016 - 12/2999	1
22267 - BRACKET, THROTTLE BODY
58239-B2030	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23250-B2020	KFVET..LA250,260..FGT;KFVET..LA250,260..(CGT,S)..PS1	09/2016 - 12/2999	3
23250-B2050	KFVE..LA250,260..FG,FX;KFVE..LA250,260..(CG,CX)..PS1	09/2016 - 12/2999	3
23250B - RING, O(FOR FUEL INJECTOR)
90043-01349	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	3
23250G - RING, O, NO.2(FOR FUEL INJECTOR)
90043-01348	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	3
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-B2010	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23271F - HOSE, FUEL
77260-B2060	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23273D - CLIP(FOR FUEL HOSE NO.2)
90044-67400	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23295 - HOLDER, INJECTOR, NO.1
23295-B2020	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	3
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-B2020	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23807P - CLIP(FOR FUEL HOSE)
90044-67400	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
23807S - RING, O(FOR FUEL DELIVARY PIPE)
90043-01353	KFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1	09/2016 - 12/2999	1
Common parts
21553-B2010
90041-19A35
90041-20214
91671-80616
Linked diagrams
1701
1708
7701
8202

LA260A-GBVZ (2016)

(1609-1704)

(1705- )
