LA260A-GBVF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

Click highlighted areas on diagram

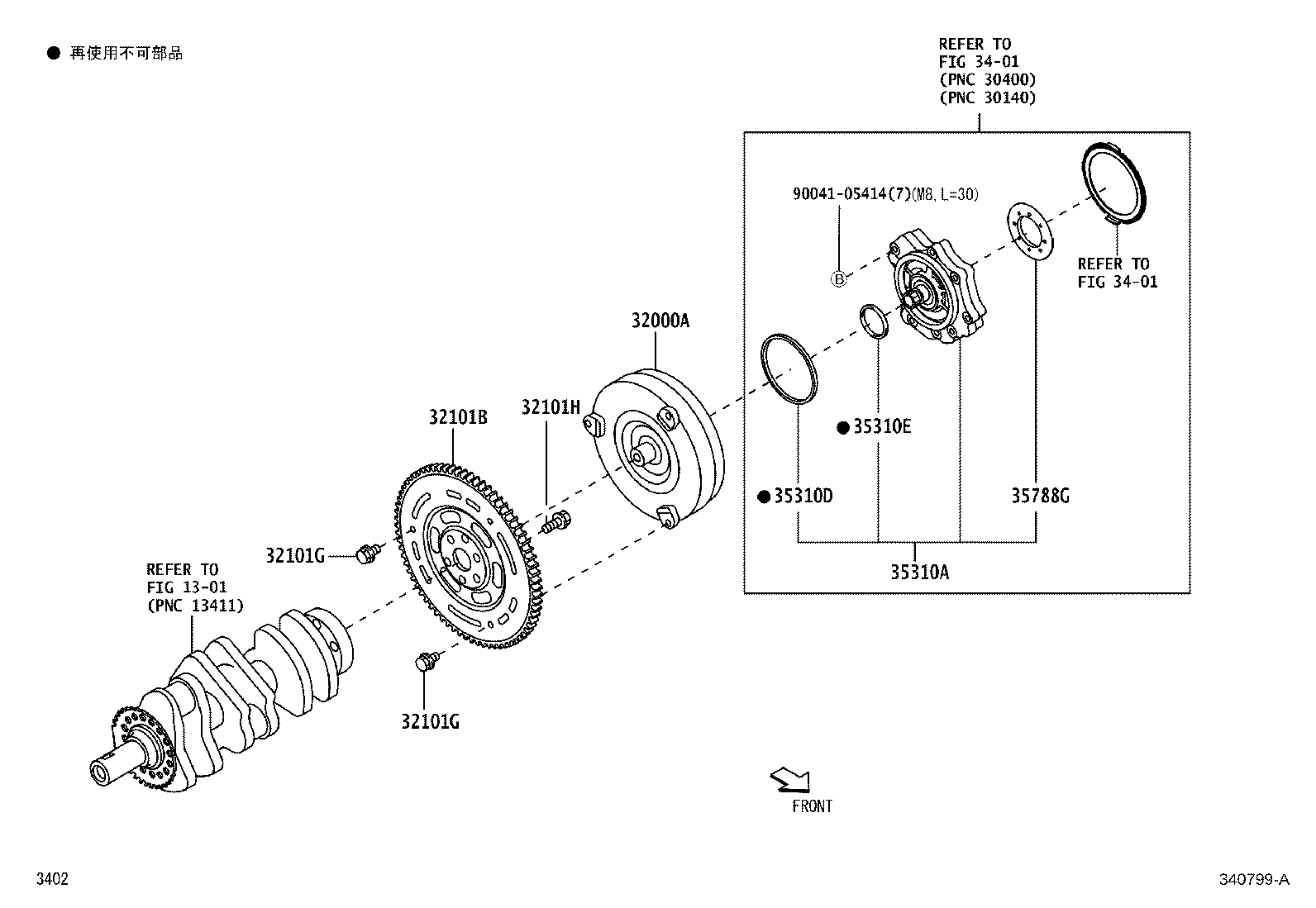

diagram 1301 32000A 32101B 32101G 32101G 32101H 3401 3401 35310A 35310D 35310E 35788G 9004105414
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-B2090

LA250,260..CG,CX,FG,FX

 1
32000-B2130

LA250,260..CGT,S

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-B2021

LA250,260..FG,FGT,FX

 1
32101-B2021

LA250,260..CG,CGT,CX,S

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05281

LA250,260

M8,L=9.5,ﾌﾞﾗｯｸ

 2
90041-05280

LA250,260

M8,L=9.5,ｼﾙﾊﾞｰ

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90041-05281

LA250,260

M8,L=9.5,ﾌﾞﾗｯｸ

 2
90041-05280

LA250,260

M8,L=9.5,ｼﾙﾊﾞｰ

 1
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90048-01037

LA250,260..CG,CGT,CX,S

 6
90048-01037

LA250,260..FG,FGT,FX

 6
35310A - PUMP ASSY, FRONT OIL
35310-B9051

LA250,260

 1
35310D - RING, O (FOR FRONT OIL PUMP)
90043-01332

LA250,260..FG,FGT,FX

 1
90043-01332

LA250,260..CG,CGT,CX,S

 1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
90043-11423

LA250,260..FG,FGT,FX

 1
90043-11423

LA250,260..CG,CGT,CX,S

 1
35788G - RACE, THRUST BEARING
35789-B2101

LA250,260..CG,CGT,CX,S

厚さ=1.6

 1
35789-B2081

LA250,260..CG,CGT,CX,S

厚さ=1.2

 1
35789-B2061

LA250,260..CG,CGT,CX,S

厚さ=0.8

 1
35789-B2061

LA250,260..FG,FGT,FX

厚さ=0.8

 1
35789-B2071

LA250,260..CG,CGT,CX,S

厚さ=1.0

 1
35789-B2091

LA250,260..CG,CGT,CX,S

厚さ=1.4

 1
35789-B2071

LA250,260..FG,FGT,FX

厚さ=1.0

 1
35789-B2081

LA250,260..FG,FGT,FX

厚さ=1.2

 1
35789-B2111

LA250,260..CG,CGT,CX,S

厚さ=1.8

 1
35789-B2111

LA250,260..FG,FGT,FX

厚さ=1.8

 1
35789-B2101

LA250,260..FG,FGT,FX

厚さ=1.6

 1
35789-B2091

LA250,260..FG,FGT,FX

厚さ=1.4

 1
