LA260A-GBSZ (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609-1710)CGT,FGT,S

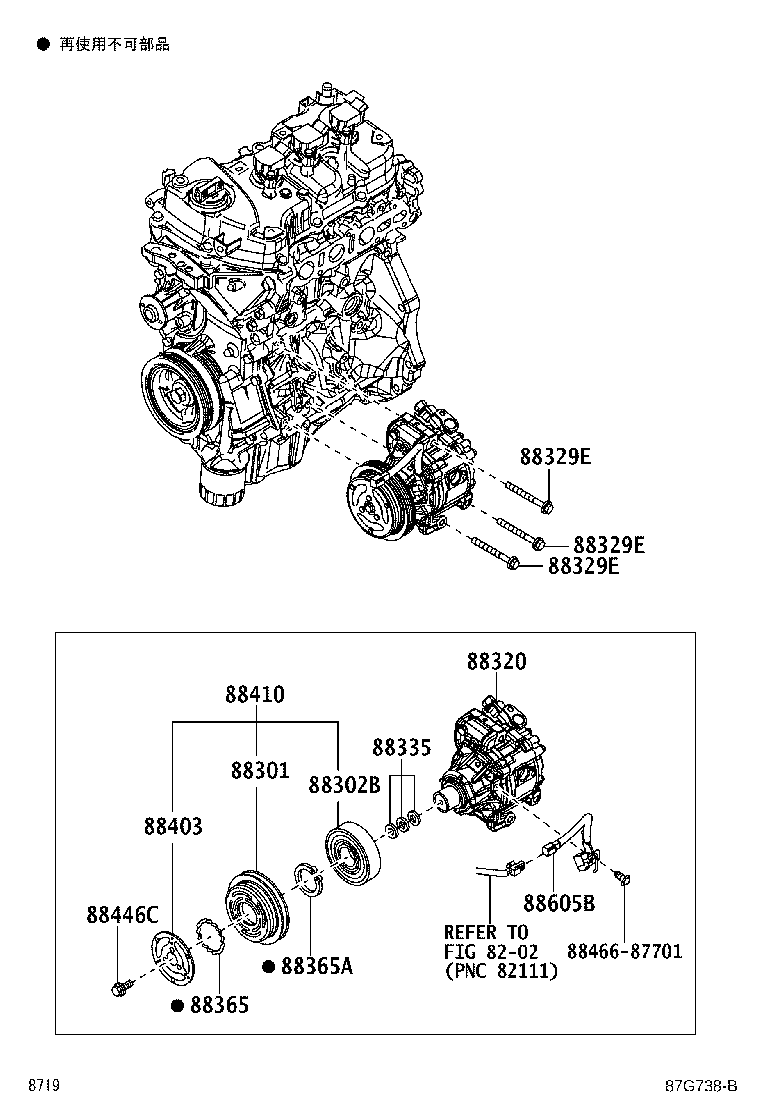

Click highlighted areas on diagram

diagram 8202 88301 88302B 88320 88329E 88329E 88329E 88335 88365 88365A 88365A 88403 88410 88446C 8846687701 88605B
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-B2050

LA250,260

 1
88302B - STATOR, MAGNET CLUTCH
88411-B1010

LA250,260..CG,CGT,CX,S

 1
88320 - COMPRESSOR ASSY, COOLER
88320-B2120

LA250,260..CGT,FGT,S

 1
88329E - BOLT, COMPRESSOR, NO.1
88899-12400

LA250,260..CG,CGT,CX,S

 3
88329E - BOLT, COMPRESSOR, NO.1
88899-12400

LA250,260..CG,CGT,CX,S

 3
88329E - BOLT, COMPRESSOR, NO.1
88899-12400

LA250,260..CG,CGT,CX,S

 3
88335 - GASKET KIT, OVERHAUL
88335-14020

LA250,260..CG,CGT,CX,S

 1
88365 - RING, SNAP
90099-07125

LA250,260

 1
88365A - RING, SNAP (FOR COMPRESSOR)
88365-87201

LA250,260..CG,CGT,CX,S

 1
88365A - RING, SNAP (FOR COMPRESSOR)
88365-87201

LA250,260..CG,CGT,CX,S

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-B2020

LA250,260

 1
88410 - CLUTCH ASSY, MAGNET
88410-B2090

LA250,260

 1
88446C - BOLT, MAGNET CLUTCH SETTING
90099-04349

LA250,260..CG,CGT,CX,S

 1
88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-B2270

LA250,260..CG,CGT,CX,S

 1
Common parts
88466-87701
Linked diagrams
8202
