LA260A-GBPF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )FG,FGT,FX,S

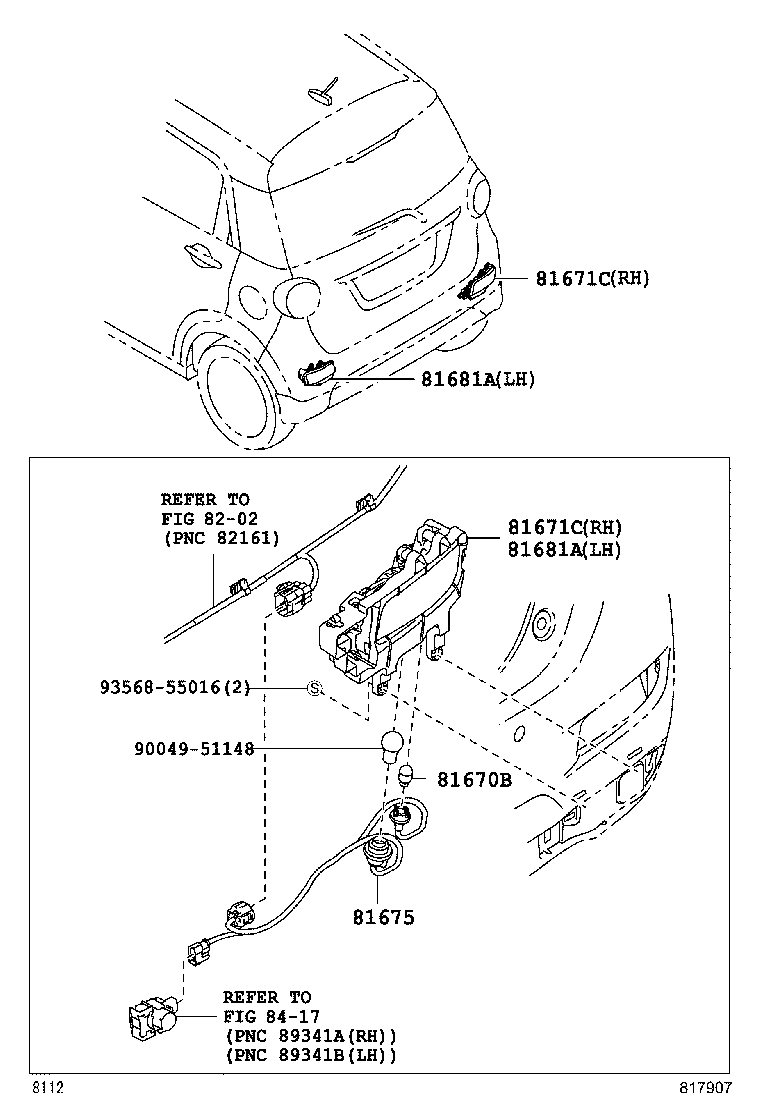

Click highlighted areas on diagram

diagram 81670B 81671C 81671C 81675 81681A 81681A 8202 8417 9004951148 9356855016
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
90981-11059

LA250,260

12V 16W

 2
81671C - LENS & BODY, BACK-UP LAMP, RH
81671-B2050

LA250,260..FG,FGT,FX,S

 1
81671C - LENS & BODY, BACK-UP LAMP, RH
81671-B2050

LA250,260..FG,FGT,FX,S

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81675-B2010

LA250,260

 2
81675-B2030

LA250,260..CX,FX

PRECRASH SYSTEM−ｽﾏｰﾄｱｼｽﾄ無し

 2
81681A - LENS & BODY, BACK-UP LAMP, LH
81681-B2050

LA250,260..FG,FGT,FX,S

 1
81681A - LENS & BODY, BACK-UP LAMP, LH
81681-B2050

LA250,260..FG,FGT,FX,S

 1
Common parts
90049-51148
93568-55016
Linked diagrams
8202
8417
