LA260A-GBPF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

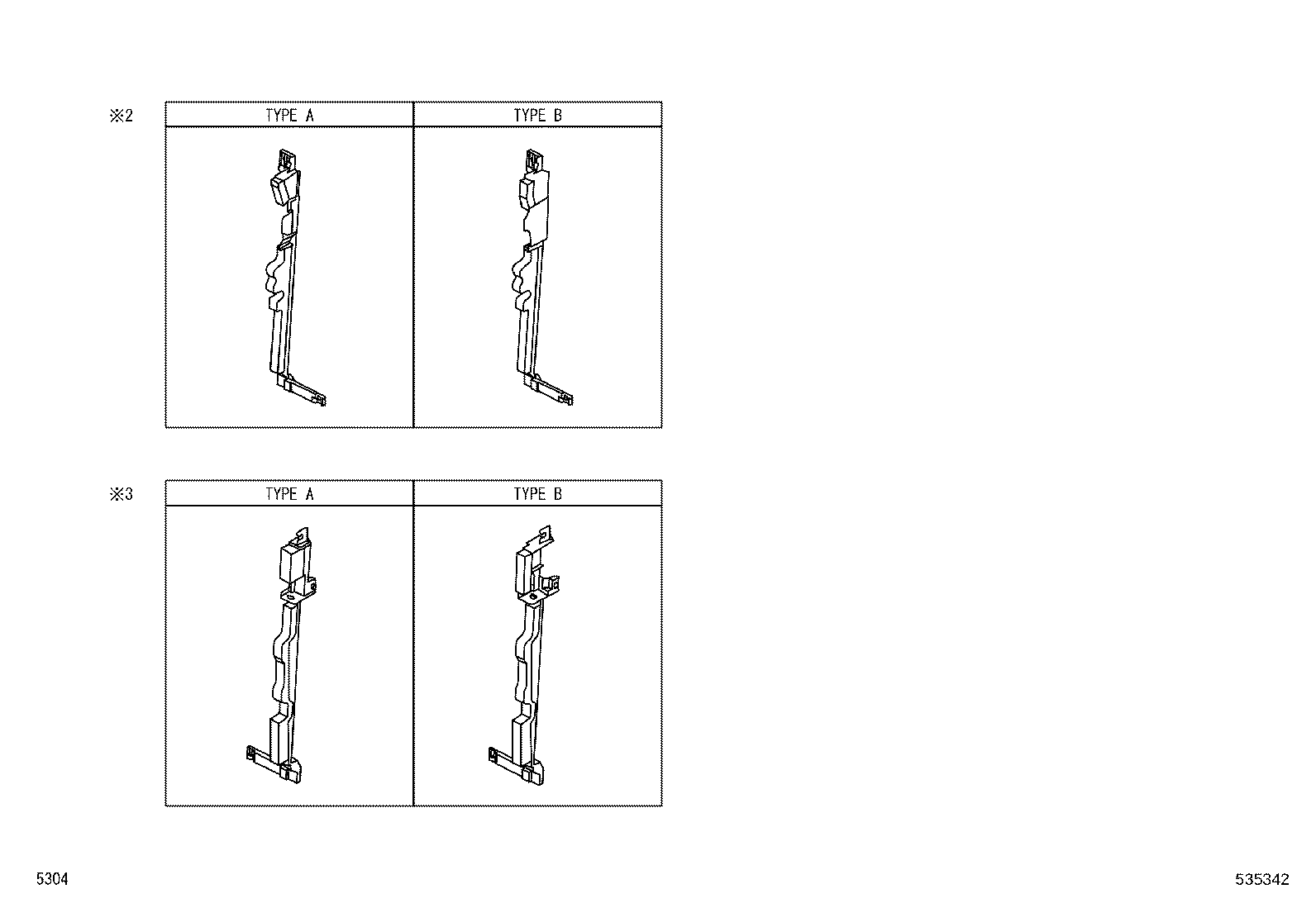

ILLUST NO. 3 OF 3(1609- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

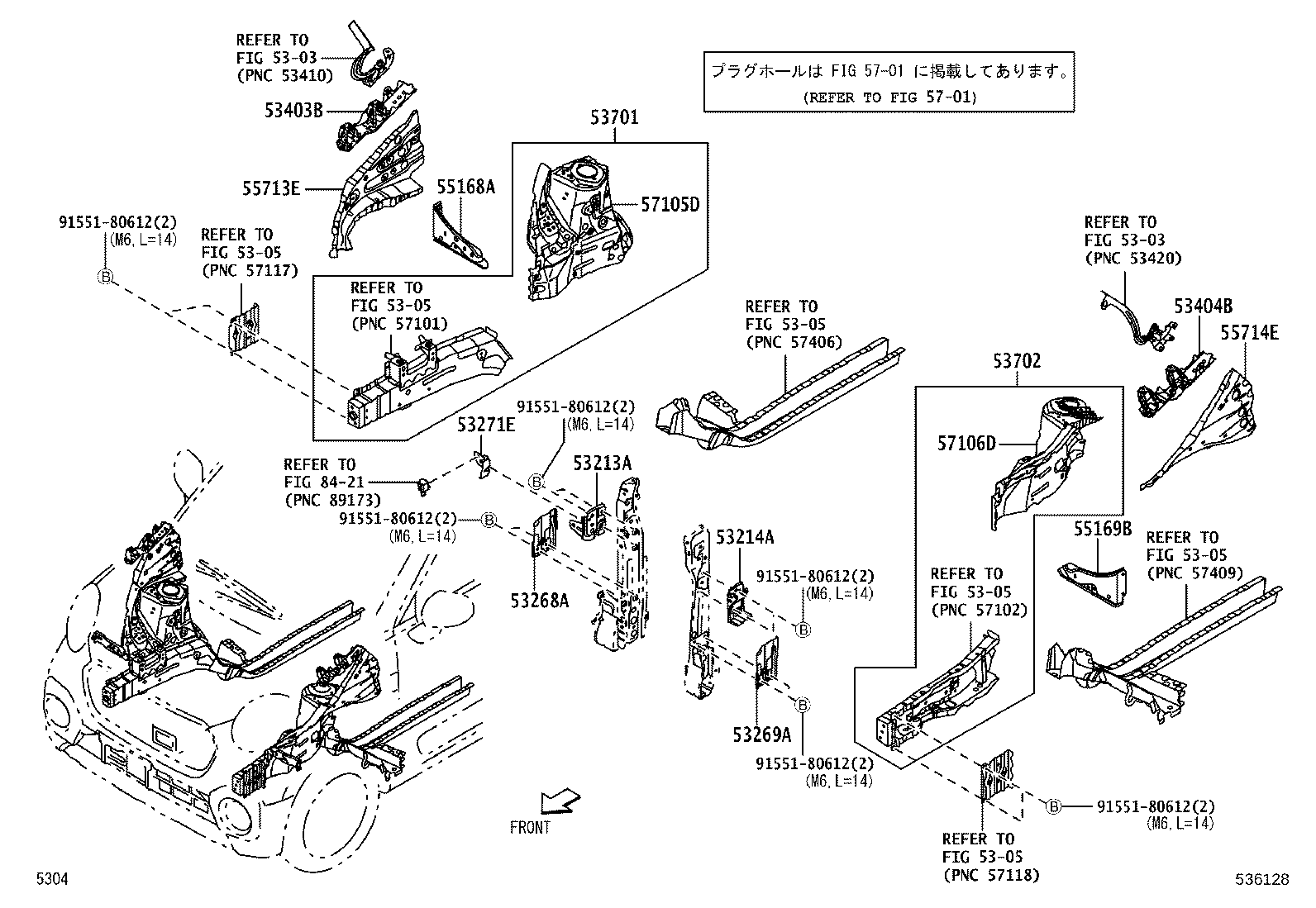

ILLUST NO. 2 OF 3(1609- )

Click highlighted areas on diagram

ｻｲﾄﾞﾒﾝﾊﾞ

diagram 5303 5303 5305 5305 5305 5305 5305 5305 53213A 53214A 53268A 53269A 53271E 53403B 53404B 53701 53702 55168A 55169B 55713E 55714E 5701 57105D 57106D 8421 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612
Part # Description Qty Price
53213A - SUPPORT, RADIATOR, UPPER RH
53213-B2100

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53214A - SUPPORT, RADIATOR, UPPER LH
53214-B2120

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-B2070

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53269-B2070

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53271E - BRACKET, HEADLAMP MOUNTING, RH
53271-B2040

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53403B - BRACKET SUB-ASSY, HOOD HINGE, RH
53403-B2070

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53404B - BRACKET SUB-ASSY, HOOD HINGE, LH
53404-B2060

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-B2911

LA250,260

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-B2912

LA250,260

 1
55168A - BRACKET, FRONT FENDER MOUNTING, RH
55168-B2270

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55169B - BRACKET, FRONT FENDER MOUNTING, LH
55169-B2250

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55713E - PANEL, COWL TOP SIDE, RH
53803-B2210

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55714E - PANEL, COWL TOP SIDE, LH
55714-B2270

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
57105D - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57105-B2200

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
57106D - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57106-B2200

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
Common parts
91551-80612
Linked diagrams
5303
5305
5701
8421

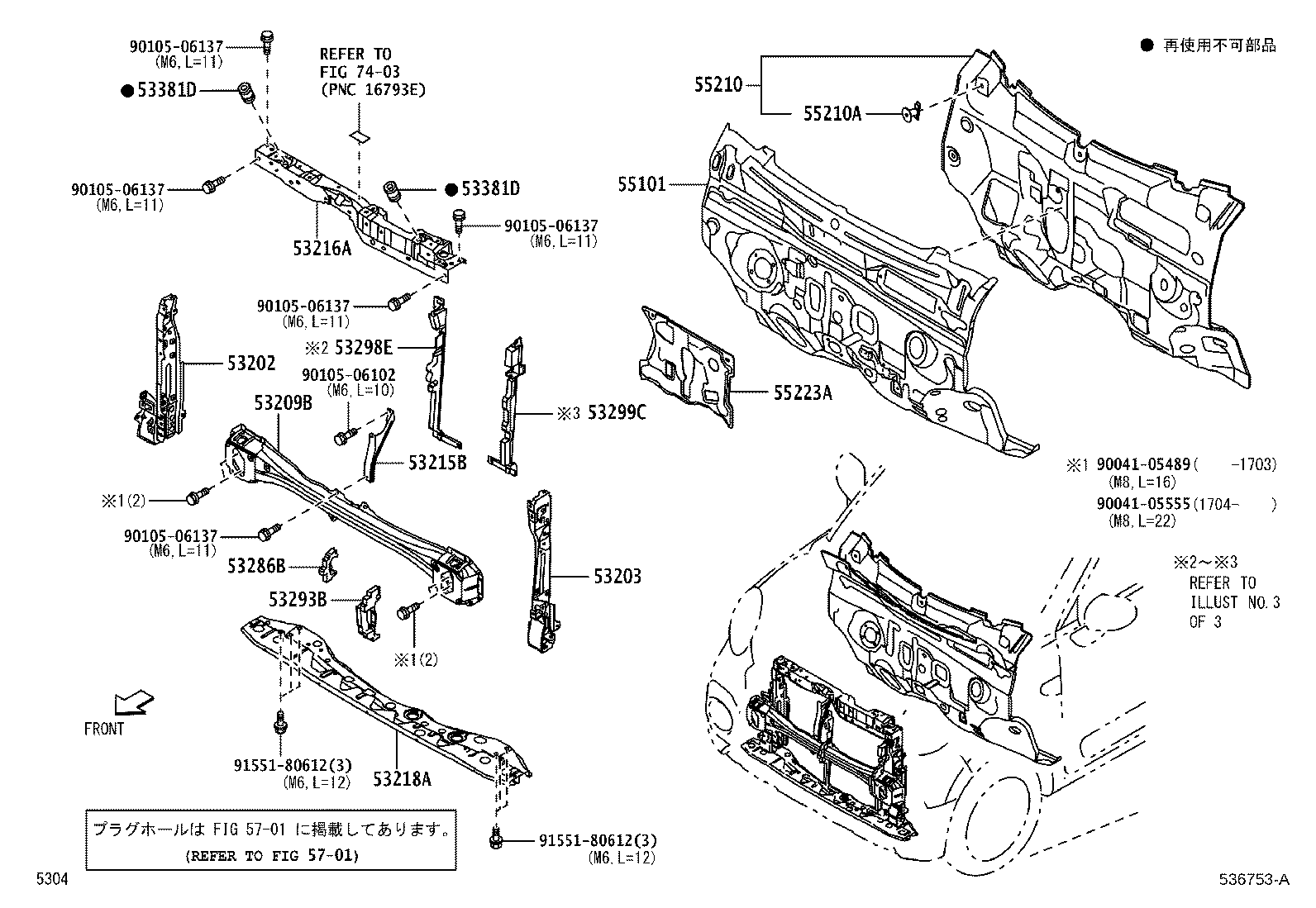

ILLUST NO. 1 OF 3(1609- )

Click highlighted areas on diagram

ﾀﾞｯｼｭﾊﾟﾈﾙ

diagram 53202 53203 53209B 53215B 53216A 53218A 53286B 53293B 53298E 53299C 53381D 53381D 55101 55210 55210A 55223A 5701 7403 9004105489 9004105555 9010506102 9010506137 9010506137 9010506137 9010506137 9010506137 9155180612 9155180612
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-B2240

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-B2200

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-B2050

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53215B - SUPPORT, HOOD LOCK
53215-B2180

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53216A - SUPPORT, RADIATOR, UPPER
53205-B2230

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53218A - SUPPORT, RADIATOR, LOWER
53028-B2330

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53286B - SEAL, RADIATOR SIDE AIR, NO.2
88619-B2040

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53293B - SEAL, RADIATOR SUPPORT SERVICE HOLE
88629-B2010

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
53298E - SEAL, RADIATOR SIDE, RH
53285-B2010

LA250,260

 1
53299C - SEAL, RADIATOR SIDE, LH
53286-B2010

LA250,260

 1
53381D - BUMPER, HOOD TO FRONT SHROUD
53381-B2150

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
53381D - BUMPER, HOOD TO FRONT SHROUD
53381-B2150

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 2
55101 - PANEL SUB-ASSY, DASH
55101-B2540

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-B2410

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
55210A - CLIP
90467-11122

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 6
55223A - INSULATOR, DASH PANEL, OUTER
55223-B2120

LA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1

 1
Common parts
90041-05489
90041-05555
90105-06102
90105-06137
91551-80612
Linked diagrams
5701
7403
