LA260A-GBPF (2016)
Toyota Pixis Joy
Production
Sep 2016
-
Oct 2017
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1609- )LA260

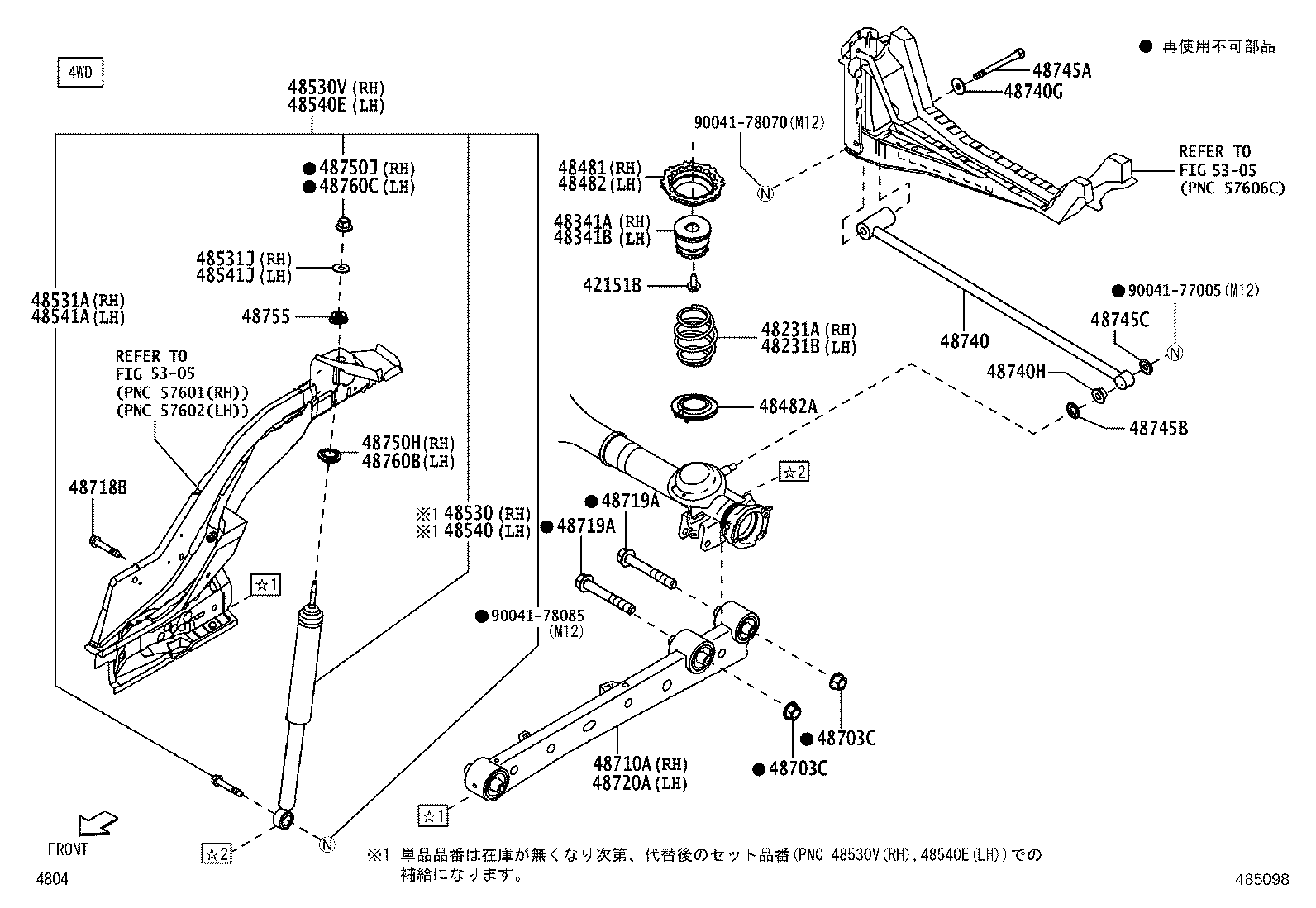

Click highlighted areas on diagram
4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42151B - BOLT, HEXAGON (FOR REAR SPRING SEAT BOLT) | ||||
| 91551-80814 |
LA260..FG,FGT,FX,S |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-B2C20 |
LA260..FG,FGT,FX,S |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-B2C20 |
LA260..FG,FGT,FX,S |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-B2020 |
LA260..FG,FGT,FX,S |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-B2020 |
LA260..FG,FGT,FX,S |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-B2030 |
LA260 |
1 | ||
| 48482 - SEAT, REAR SPRING, UPPER LH | ||||
| 48481-B2030 |
LA260 |
1 | ||
| 48482A - SEAT, REAR SPRING, LOWER | ||||
| 48482-B2040 |
LA260 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-B2J30 |
LA260..FG,FGT,FX,S ﾏｰｸ 48531−B2J30 |
1 | ||
| 48530V - ABSORBER SET, SHOCK, REAR RH | ||||
| 48530-B9100 |
LA260..FG,FGT,FX,S ﾏｰｸ 48531−B2J30 |
1 | ||
| 48531A - BOLT, UNION(FOR REAR SHOCK ABSORBER RH) | ||||
| 90041-19A06 |
LA250,260 M12,L=60.5/ﾜｯｼｬｰｱﾘ |
1 | ||
| 48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH | ||||
| 90042-01758 |
LA250,260 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-B2J30 |
LA260..FG,FGT,FX,S ﾏｰｸ 48531−B2J30 |
1 | ||
| 48540E - ABSORBER SET, SHOCK, REAR LH | ||||
| 48530-B9100 |
LA260..FG,FGT,FX,S ﾏｰｸ 48531−B2J30 |
1 | ||
| 48541A - BOLT, UNION(FOR REAR SHOCK ABSORBER LH) | ||||
| 90041-19A06 |
LA250,260 M12,L=60.5/ﾜｯｼｬｰｱﾘ |
1 | ||
| 48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH | ||||
| 90042-01758 |
LA250,260 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90041-70367 |
LA260 |
4 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90041-70367 |
LA260 |
4 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-B2211 |
LA260 |
1 | ||
| 48718B - SHAFT, REAR SUSPENSION LOWER ARM, NO.1 | ||||
| 48718-B2020 |
LA260 ｶﾗｰ:ﾌﾞﾗｯｸ |
2 | ||
| 48719A - SHAFT, REAR SUSPENSION LOWER ARM, NO.2 | ||||
| 48719-B2021 |
LA260 ｼｬﾌﾄ ﾄｳﾌﾞﾉ ｷｮｳﾄﾞ /11T |
4 | ||
| 48719A - SHAFT, REAR SUSPENSION LOWER ARM, NO.2 | ||||
| 48719-B2021 |
LA260 ｼｬﾌﾄ ﾄｳﾌﾞﾉ ｷｮｳﾄﾞ /11T |
4 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48720-B2051 |
LA260 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-B2020 |
LA260 |
1 | ||
| 48740G - WASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90042-01743 |
LA260 |
1 | ||
| 48740H - BUSH, NO.1(FOR REAR LATERAL CONTROL ROD) | ||||
| 90043-85102 |
LA260 |
2 | ||
| 48745A - BOLT, HEXAGON(FOR LATERAL CONTROL ROD) | ||||
| 90041-01698 |
LA260 |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90042-09105 |
LA260 |
1 | ||
| 48745C - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90948-03003 |
LA260 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-B2040 |
LA260 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 94188-01001 |
LA250,260 |
1 | ||
| 48755 - SUPPORT, REAR SUSPENSION | ||||
| 48755-B2020 |
LA250,260 |
2 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-B2040 |
LA260 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 94188-01001 |
LA250,260 |
1 | ||
| Common parts | ||||
| 90041-77005 | ||||
| 90041-78070 | ||||
| 90041-78085 | ||||
| Linked diagrams | ||||
| 5305 | ||||
