LA260A-GBGZ2 (2017)

Toyota Pixis Joy

Production Oct 2017 - Jan 2020
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1710- )

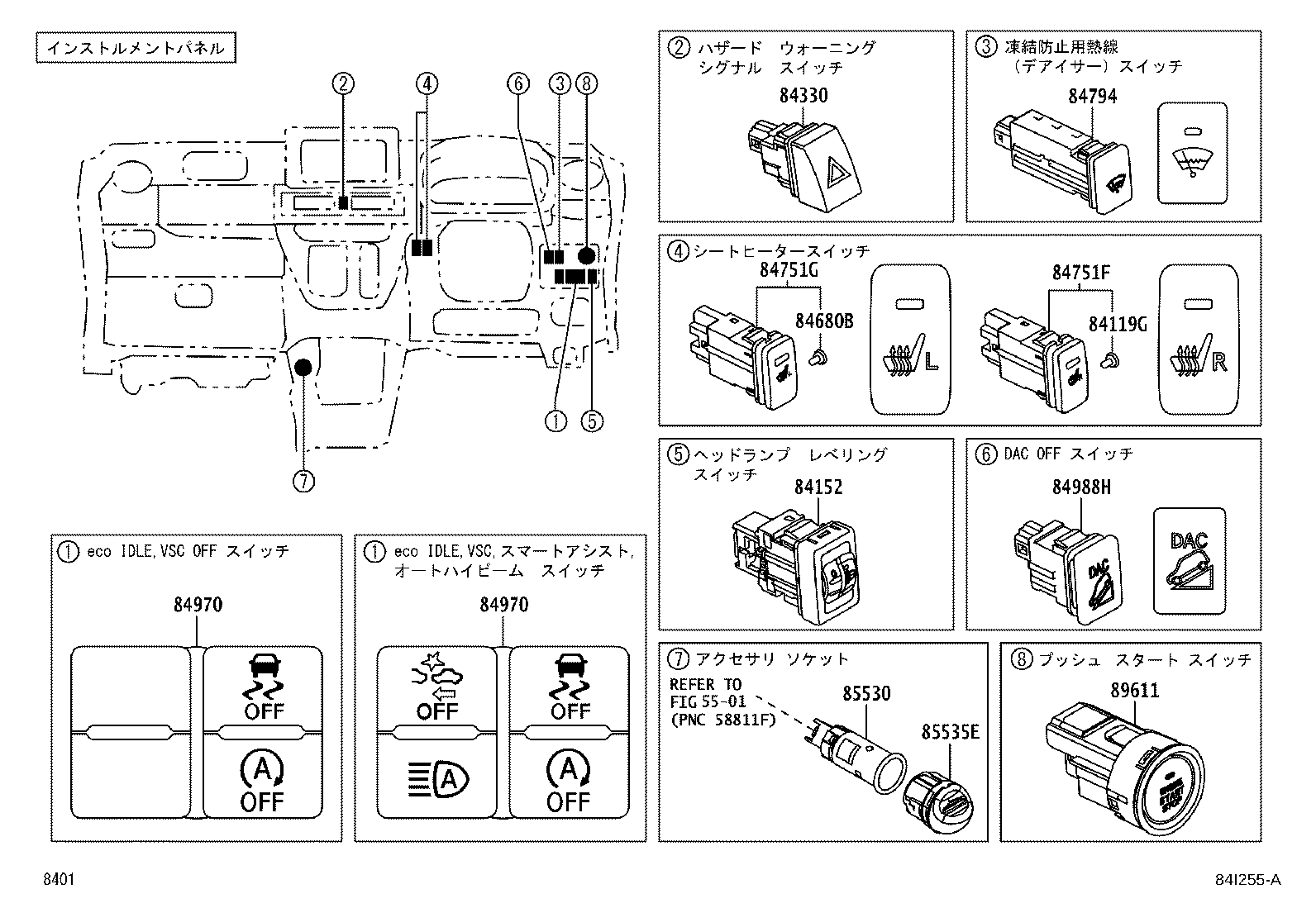

Click highlighted areas on diagram

diagram 5501 84119G 84152 84330 84680B 84751F 84751G 84794 84970 84970 84988H 85530 85535E 89611
Part # Description Qty Price
84119G - BLUB
84999-B5040

LA250,260..S

 1
84999-B5040

LA250,260..(CG,CGT,CX)..PS2

#−ｼｰﾄﾋｰﾀｰ(運転席+助手席)

 1
84152 - SWITCH, HEADLAMP LEVELING
84152-B2090

LA250,260..(CG,CGT,CX,S)..PS2

 1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-B2130

LA250,260..(CG,CGT,CX,S)..PS2

 1
84680B - BULB
84999-B5040

LA250,260..S

 1
84999-B5040

LA250,260..(CG,CGT,CX)..PS2

#−ｼｰﾄﾋｰﾀｰ(運転席+助手席)

 1
84751F - SWITCH, SEAT HEATER
84751-B2010

LA250,260..S

運転席側

 1
84751-B2010

LA250,260..(CG,CGT,CX)..PS2

#−ｼｰﾄﾋｰﾀｰ(運転席+助手席),運転席側

 1
84751G - SWITCH, SEAT HEATER
84751-B2020

LA250,260..(CG,CGT,CX)..PS2

#−ｼｰﾄﾋｰﾀｰ(運転席+助手席),助手席側

 1
84751-B2020

LA250,260..S

助手席側

 1
84794 - SWITCH, FR WIPER DEICER
84794-B2010

LA250,260..(CG,CGT,CX,S)..PS2

ｳｨﾝﾄﾞｼｰﾙﾄﾞ ｶﾞﾗｽ−UV+ﾃﾞｱｲｻ

 1
84970 - SWITCH ASSY, COMBINATION
84970-B2030

LA250,260..CG,CGT,CX,S

 1
84970 - SWITCH ASSY, COMBINATION
84970-B2030

LA250,260..CG,CGT,CX,S

 1
84988H - SWITCH, DOWNHILL ASSIST CONTROL
84988-B2050

LA260..CG,CGT,CX

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-52010

LA250,260..(CG,CGT,CX,S)..PS2

 1
85535E - COVER, POWER OUTLET SOCKET, NO.2
85535-47021

LA250,260

 1
89611 - SWITCH, PUSH START
89611-B2070

LA250,260..CG,CGT,CX,S

 1
Linked diagrams
5501
