LA260A-GBGZ (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

Click highlighted areas on diagram

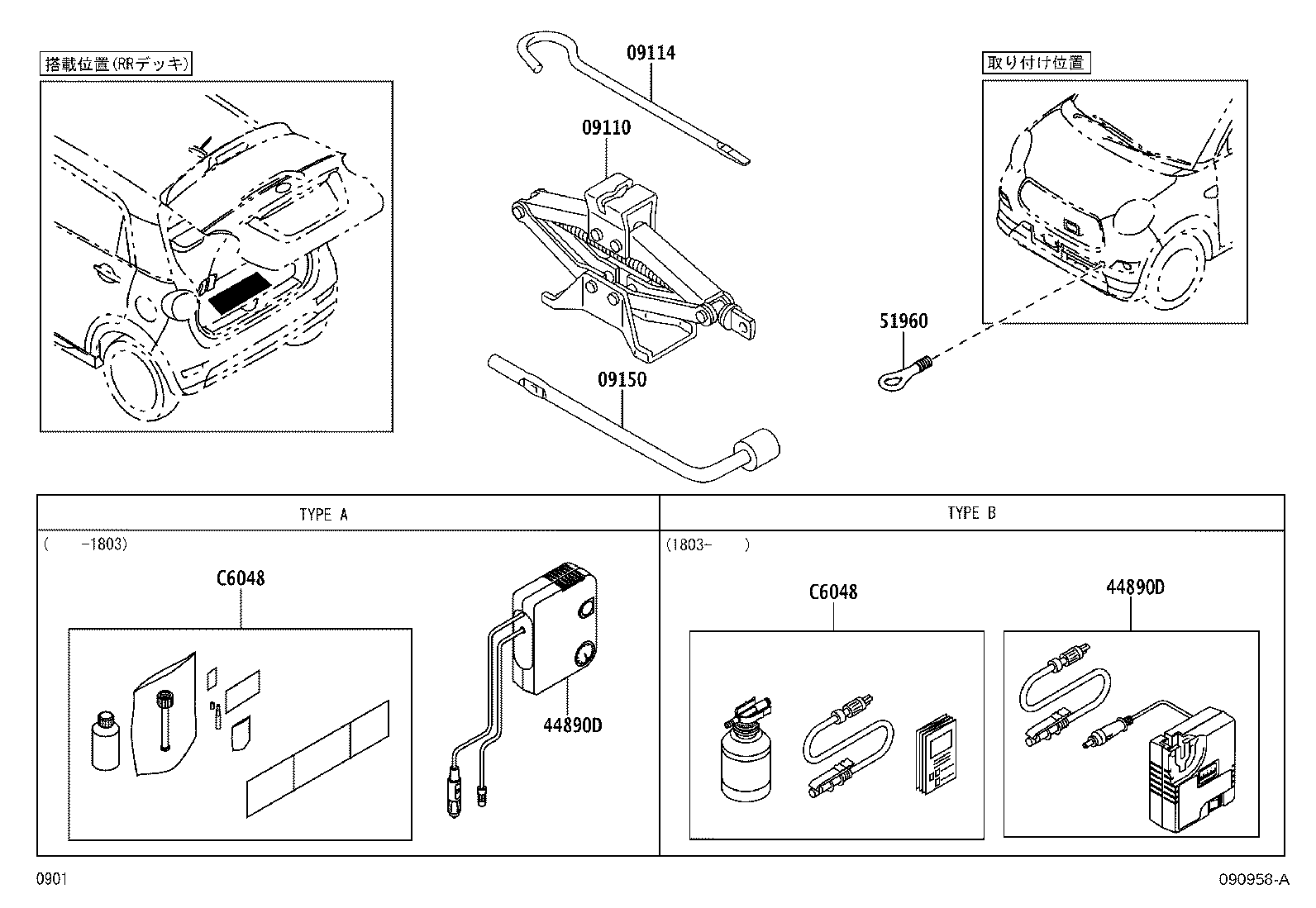

diagram 09110 09114 09150 44890D 44890D 51960 C6048 C6048
Part # Description Qty Price
09110 - JACK ASSY
09111-B2010

LA250,260

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-B1010

LA250,260..CG,CGT,CX,S

 1
09150 - WRENCH, HUB NUT BOX
09151-B1010

LA250,260..CG,CGT,CX,S

 1
44890D - COMPRESSOR ASSY, AIR
44890-B1010

LA250,260

TYPE A:ｲﾗｽﾄ参照

 1
44890D - COMPRESSOR ASSY, AIR
44890-B1010

LA250,260

TYPE A:ｲﾗｽﾄ参照

 1
51960 - HOOK ASSY, FRONT
51961-B1040

LA250,260..CG,CGT,CX,S

 1
C6048 - REPAIR SET, TIRE
C6048-B2020

LA250,260

 1
C6048 - REPAIR SET, TIRE
C6048-B2020

LA250,260

 1
