LA260A-GBGF (2016)
Toyota Pixis Joy
Production
Sep 2016
-
Oct 2017
Engine
KFVE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1609- )

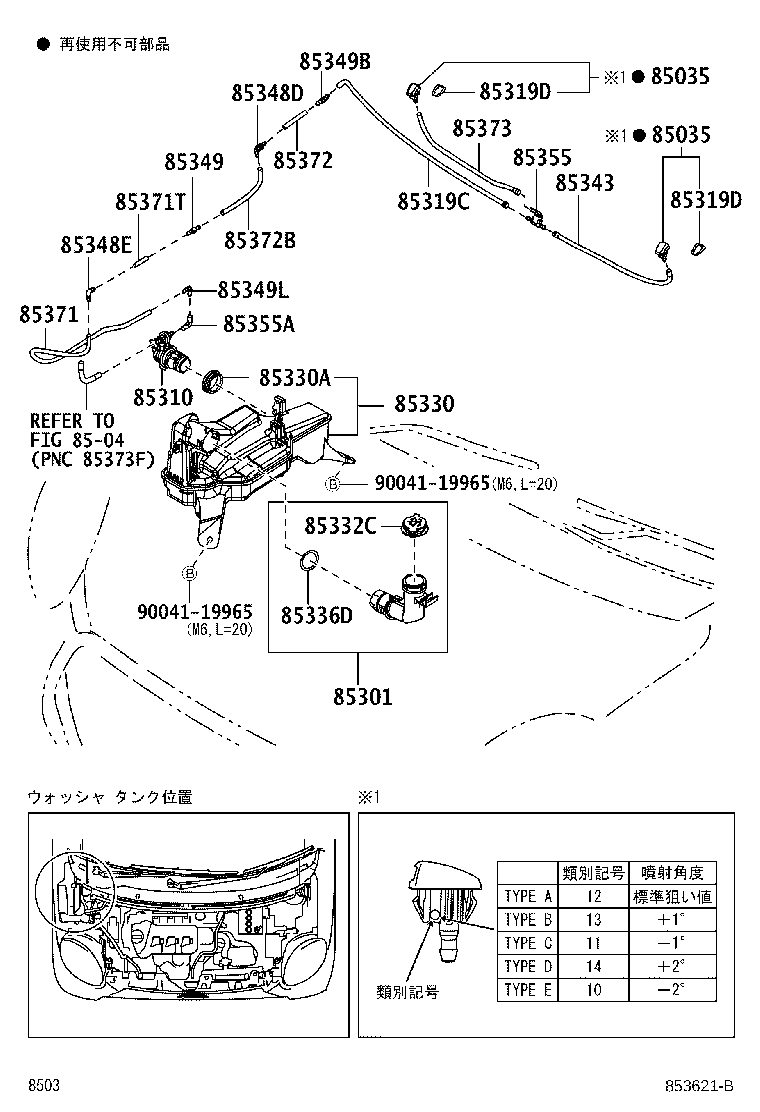

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-B1110 |
LA250,260 ﾀｲﾌﾟC(ﾏｰｸ11:OPT=−1) |
1 | ||
| 85381-B1100 |
LA250,260 ﾀｲﾌﾟB(ﾏｰｸ13:OPT=+1) |
1 | ||
| 85381-B1130 |
LA250,260 ﾀｲﾌﾟE(ﾏｰｸ10:OPT=−2) |
1 | ||
| 85381-B2170 |
LA250,260 ﾀｲﾌﾟA(ﾏｰｸ12:STD) |
1 | ||
| 85381-B1120 |
LA250,260 ﾀｲﾌﾟD(ﾏｰｸ14:OPT=+2) |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-B1110 |
LA250,260 ﾀｲﾌﾟC(ﾏｰｸ11:OPT=−1) |
1 | ||
| 85381-B1100 |
LA250,260 ﾀｲﾌﾟB(ﾏｰｸ13:OPT=+1) |
1 | ||
| 85381-B1130 |
LA250,260 ﾀｲﾌﾟE(ﾏｰｸ10:OPT=−2) |
1 | ||
| 85381-B2170 |
LA250,260 ﾀｲﾌﾟA(ﾏｰｸ12:STD) |
1 | ||
| 85381-B1120 |
LA250,260 ﾀｲﾌﾟD(ﾏｰｸ14:OPT=+2) |
1 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-B2230 |
LA250,260 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-B2030 |
LA250,260 |
1 | ||
| 85319C - HOSE, WASHER | ||||
| 85374-87401 |
LA250,260 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85336-B2050 |
LA250,260 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85336-B2050 |
LA250,260 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-B2130 |
LA250,260 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 85373-97202 |
LA250,260 |
1 | ||
| 85332C - CAP, FRONT WASHER TANK | ||||
| 85332-B1020 |
LA250,260 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-B2060 |
LA250,260 |
1 | ||
| 85343 - HOSE, WINDSHIELD WASHER SUCTION | ||||
| 85343-97401 |
LA250,260 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85317-B2030 |
LA250,260 |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85349-87602 |
LA250,260 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-87201 |
LA250,260 |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85349-87602 |
LA250,260 |
1 | ||
| 85349L - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85349-87602 |
LA250,260 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85376-B1010 |
LA250,260 |
1 | ||
| 85355A - JOINT, WINDSHIELD WASHER ELBOW | ||||
| 85355-87701 |
LA250,260 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85343-97401 |
LA250,260 長さ=1000 |
1 | ||
| 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) | ||||
| 85343-97401 |
LA250,260 長さ=1000 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85374-87401 |
LA250,260 長さ=1000 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85343-97401 |
LA250,260 長さ=1000 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 85343-97401 |
LA250,260 長さ=1000 |
1 | ||
| Common parts | ||||
| 90041-19965 | ||||
| Linked diagrams | ||||
| 8504 | ||||
