LA260A-GBGF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )S

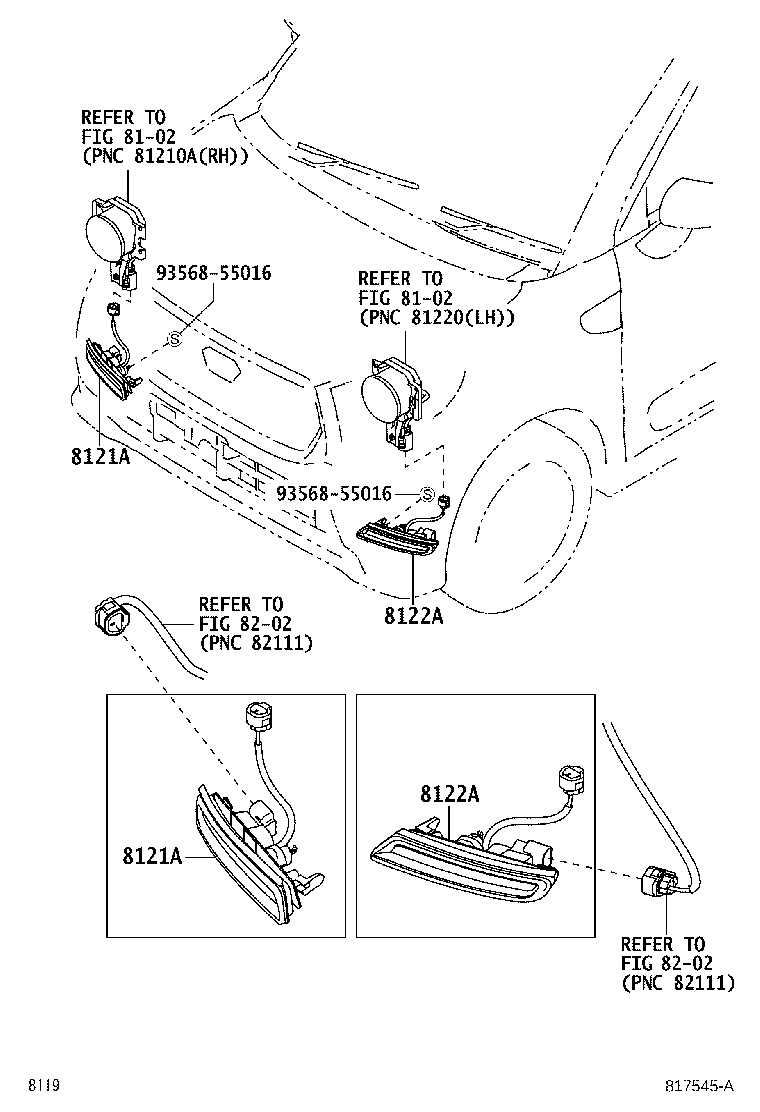

Click highlighted areas on diagram

diagram 8102 8102 8121A 8121A 8122A 8122A 8202 8202 9356855016 9356855016
Part # Description Qty Price
8121A - LAMP, LED ILLUMINATION, RH
812A0-B2050

LA250,260..S

 1
8121A - LAMP, LED ILLUMINATION, RH
812A0-B2050

LA250,260..S

 1
8122A - LAMP, LED ILLUMINATION, LH
812B0-B2050

LA250,260..S

 1
8122A - LAMP, LED ILLUMINATION, LH
812B0-B2050

LA250,260..S

 1
Common parts
93568-55016
Linked diagrams
8102
8202
