LA260A-GBGF (2016)

Toyota Pixis Joy

Production Sep 2016 - Oct 2017
Engine KFVE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

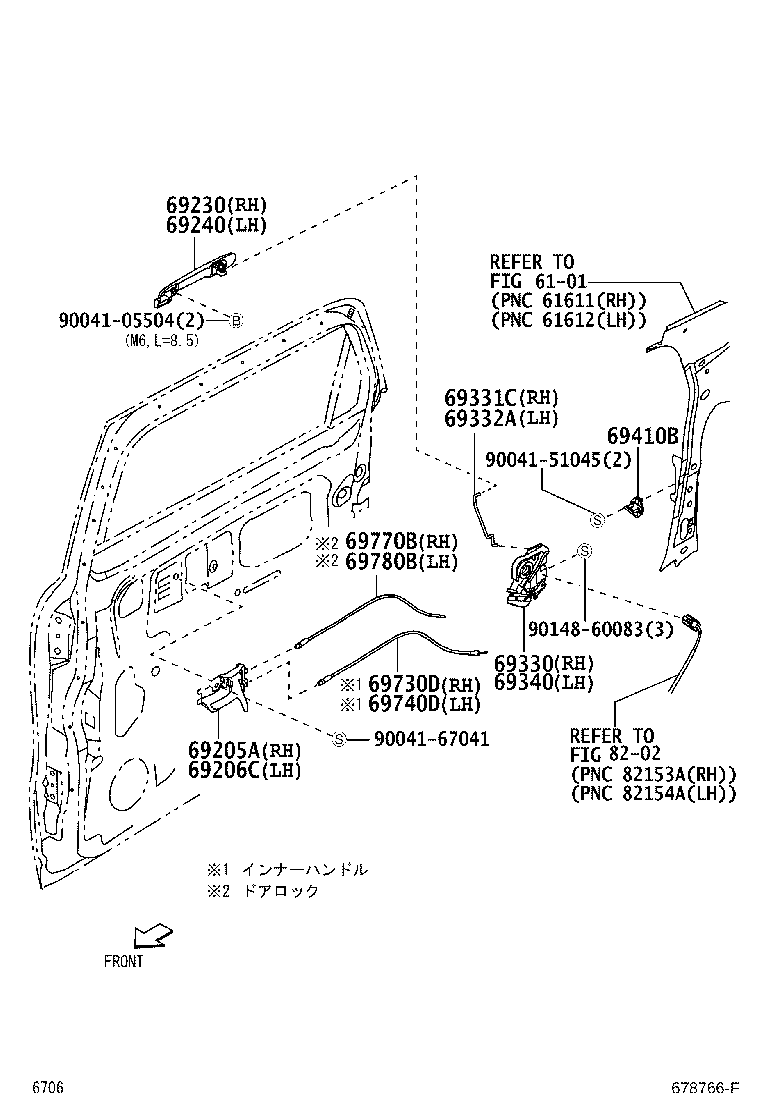

Click highlighted areas on diagram

diagram 6101 69205A 69206C 69230 69240 69330 69331C 69332A 69340 69410B 69730D 69740D 69770B 69780B 8202 9004105504 9004151045 9004167041 9014860083
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69270-B2112B1

LA250,260..CG,CGT,CX

DK.GRAY,TRIM1#,2#

 1
69270-B2112B1

LA250,260..S

DK.GRAY,TRIM1#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69280-B2122B1

LA250,260..CG,CGT,CX

DK.GRAY,TRIM1#,2#

 1
69280-B2122B1

LA250,260..S

DK.GRAY,TRIM1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-B2400

LA250,260..FG,FGT,FX,S

ﾒｯｷ

 1
69210-B2342B0

LA250,260..CG,CGT,CX

SILVER ME.,B79 ,B80 ,G57 ,R67 ,R71 ,S28 ,W24 ,X07

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69220-B2322B0

LA250,260..CG,CGT,CX

SILVER ME.,B79 ,B80 ,G57 ,R67 ,R71 ,S28 ,W24 ,X07

 1
69220-B2390

LA250,260..FG,FGT,FX,S

ﾒｯｷ

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-B2183

LA250,260

 1
69330-B2184

LA250,260

 1
69331C - ROD, REAR DOOR LOCK OPEN, RH
69331-B2170

LA250,260

 1
69332A - ROD, REAR DOOR LOCK OPEN, LH
69332-B2160

LA250,260

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-B2183

LA250,260

 1
69340-B2184

LA250,260

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-B2020

LA250,260

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-B2230

LA250,260

ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-B2230

LA250,260

ｲﾝﾅｰﾊﾝﾄﾞﾙｻｲﾄﾞ

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-B2210

LA250,260

ﾄﾞｱﾛﾂｸ

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69780-B2190

LA250,260

ﾄﾞｱﾛﾂｸ

 1
Common parts
90041-05504
90041-51045
90041-67041
90148-60083
Linked diagrams
6101
8202
